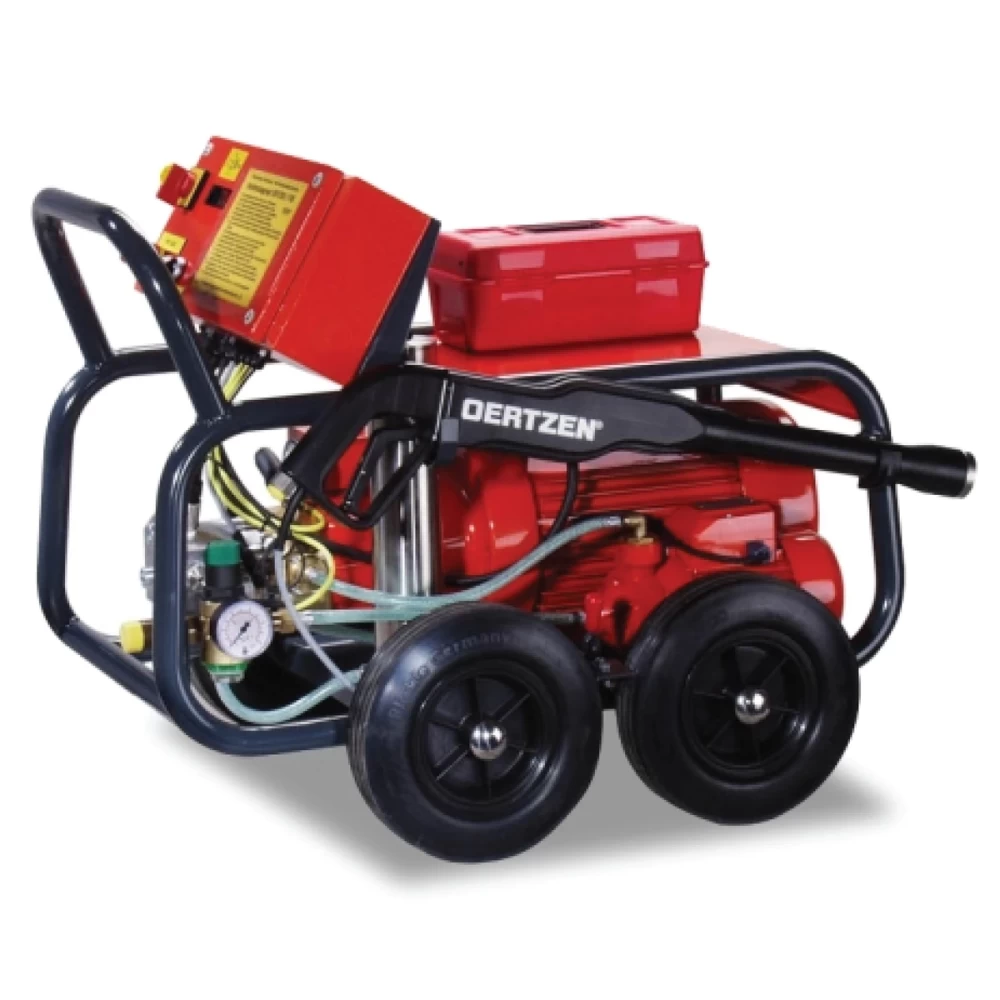

OERTZEN E 1700
|
Flow rate max. |
138 l/h / 36 gal/h |
|
Unloading pressure |
1800 bar / 26100 psi |
|
Working pressure max. |
1700 bar / 24650 psi |
|
Standard voltage |
400 V/3P/50 Hz |
|
Pump speed |
1420 1/min |
|
Connecting power |
9.9 kw |
|
Dimensions (frame: LxWxH) |
860 x 630 x 710 mm |
|
Weight |
148 kg / 326 lb |
OERTZEN E 1700
Cold water ultra high pressure aggregate
3 cyl. inline plunger pump 2.3 l/min / 0.6 gal/min
for special tasks (derusting, descaling) - minimum waste water
motor/pump rpm 1450 1/min - slowly running machine
hp rotation pistol with sapphire jets
water feeding pump (6-8 bar) protects high pressure pump from cavitation
pre pressure compensator
pressure minimizer 2 bar / 29 psi
water micro filter protect pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
Application range: abrasive blasting, concrete restoration, decoating, derusting, high pressure cleaning, industrial cleaning, paint removal, pipeline cleaning
Standard equipment: 10 m/ 33 ft ultra high pressure hose with electronic operation control cable, rotary pistol, 5 m / 16 ft electric cable with CEE plug 32 A
|
Technical characteristics |
|
|
Flow rate max. |
138 l/h / 36 gal/h |
|
Unloading pressure |
1800 bar / 26100 psi |
|
Working pressure max. |
1700 bar / 24650 psi |
|
Water temperature max. |
cold water |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
- |
|
Pump speed |
1420 1/min |
|
Power source |
electric motor |
|
Connecting power |
9.9 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
|
|
Dimensions ( frame: LxWxH) |
860 x 630 x 710 mm / 33.5 x 24.5 x 27.7 in |
|
Weight |
148 kg / 326 lb |
|
Please notice |
technical data are subject to alterations |
