OERTZEN E 1800
|
Flow rate max. |
660 l/h / 174 gal/h |
|
Working pressure max. |
1800 bar / 26100 psi |
|
Standard voltage |
400 V/3P/50 Hz |
|
Connecting power |
45 kW |
|
Dimensions (frame: LxWxH) |
1360 x 550 x 1330 mm |
|
Weight |
750 kg / 1654 lb |

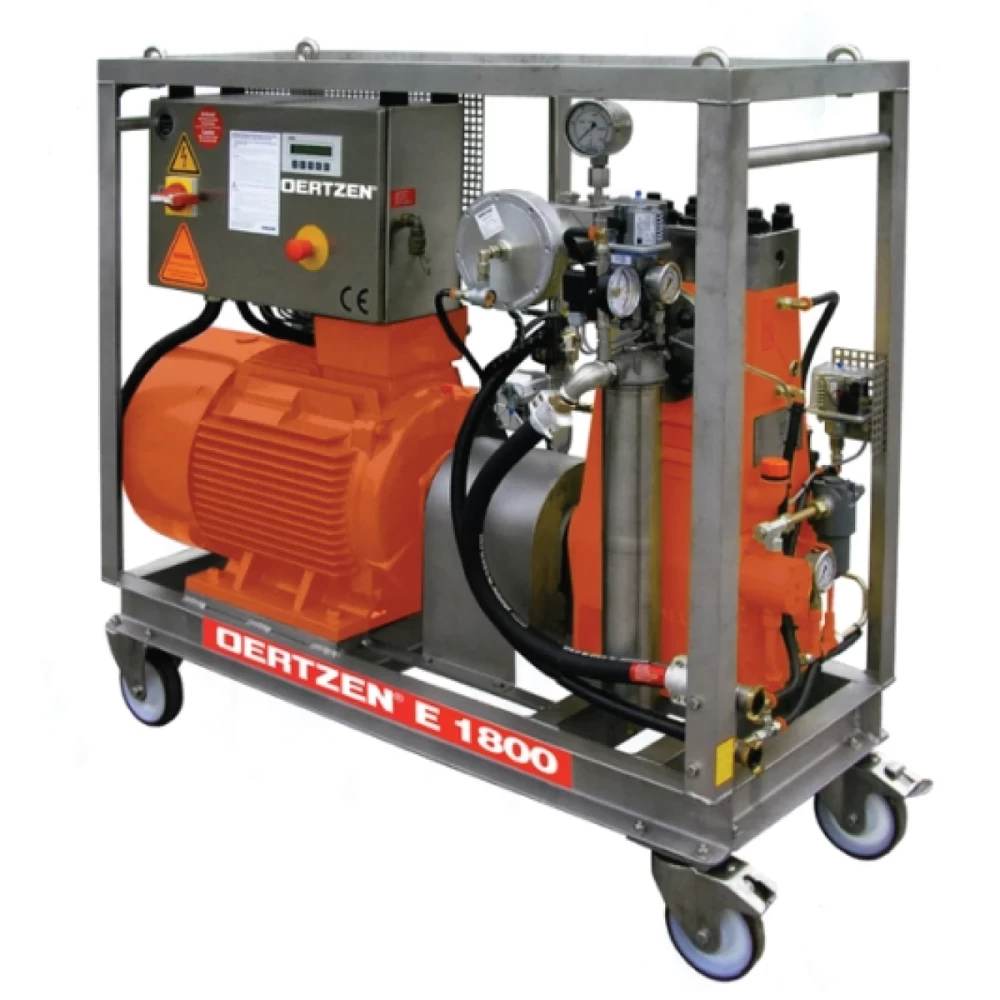

OERTZEN E 1800
Cold water ultra high pressure aggregate
3 plunger pump 11 l/min / 2.9 gal/min
compact design, vertically mounted
contact-free hp plunger lining
high durability, minimal friction loss and deterioration
precision crank drive with oil pressure lubrication
forged crank shaftmade of tempered steel
high-strength stainless steel pump head
automatic sensor pump control
Application range: abrasive blasting, concrete restoration, decoating, derusting, high pressure cleaning, industrial cleaning, paint removal, pipeline cleaning
stainless steel frame with 2 fixed and 2 swivel rollers with brake
Standard equipment: 20 m / 66 ft ultra high pressure hose, spray pistol with 750 mm / 29 in lance, flat stream nozzle, control cable, rotor jet with 3 point jet nozzles and magnetic brake, 5 m / 16 ft electric cable with 125 A CEE-plug
|
Technical characteristics |
|
|
Flow rate max. |
660 l/h / 174 gal/h |
|
Unloading pressure |
- |
|
Working pressure max. |
1800 bar / 26100 psi |
|
Water temperature max. |
- |
|
Standard voltage |
400V/3~50 Hz |
|
Special voltage |
on request |
|
Pump speed |
- |
|
Power source |
electric motor |
|
Connecting power |
45 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
- |
|
Dimensions ( frame: LxWxH) |
1360 x 550 x 1330 mm / 53 x 21.4 x 51.8 in |
|
Weight |
750 kg / 1654 lb |
|
Please notice |
technical data are subject to alterations |
