OERTZEN E 500-30
Flow rate max. |
1800 l/h / 475 gal/h |
Unloading pressure |
530 bar / 7685 psi |
Working pressure max. |
500 bar / 7250 psi |
Standard voltage |
400 V/3P/50 Hz |
Pump speed |
1420 1/min |
Connecting power |
24.2 kW |
Dimensions (frame: LxWxH) |
960 x 780 x 860 mm |
Weight |
260 kg / 573 lb |

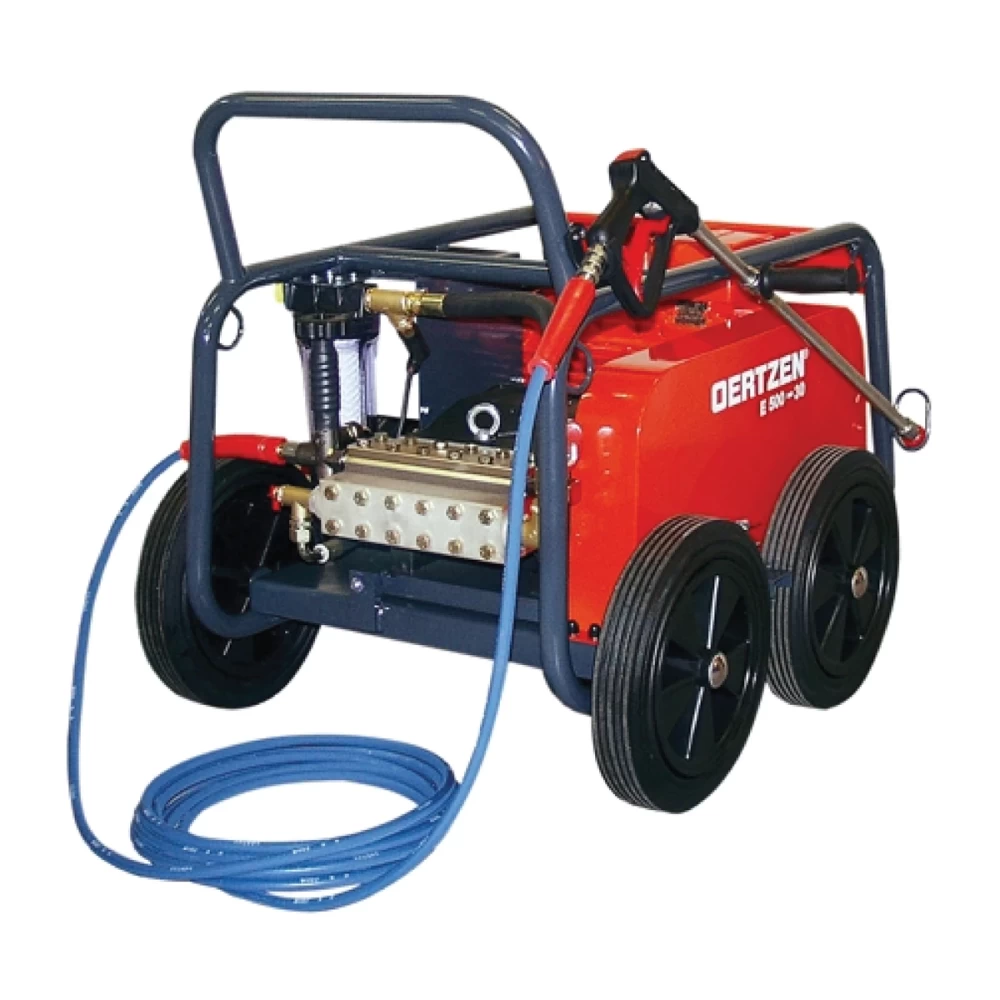

OERTZEN E 500-30
Cold water high pressure aggregate
5 cyl. inline plunger pump 30 l/min / 7.9 gal/min
(brass pump head, ceramic plungers) - tooth belt drive, maintenance free
Star Delta starting device
motor/pump rpm 1450 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water shortage control protects pump from cavitation
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from curling up
Application range: abrasive blasting, concrete restoration, container cleaning, decoating, derusting, drain cleaning, facade cleaning, floor cleaning, gully cleaning, high pressure cleaning, industrial cleaning, paint removal, water-sand blasting
Standard equipment: single lance 800 mm / 31 in (710.704.952) with HIP flat stream nozzle 2038 (710.742.038), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)
Option: E 500-30 VA SCS stationary - INOX frame, Safety Control Stop, Order No. 710.000.503
E 500-30 Ex,engl,12-17 - designed for explosion endangered areas - optional with stainless steel frame - see extra equipment
Technical characteristics |
|
Flow rate max. |
1800 l/h / 475 gal/h |
Unloading pressure |
530 bar / 7685 psi |
Working pressure max. |
500 bar / 7250 psi |
Water temperature max. |
cold water |
Standard voltage |
400 V/3~50 Hz |
Special voltage |
on request |
Pump speed |
1420 1/min |
Power source |
electric motor |
Connecting power |
24.2 kW |
Engine / motor output |
- |
Thermo valve |
standard |
Safety Control Stop SCS |
option |
Dimensions ( frame: LxWxH) |
960 x 780 x 860 mm / 37.4 x 30.4 x 33.5 in |
Weight |
260 kg / 573 lb |
Please notice |
technical data are subject to alterations |
