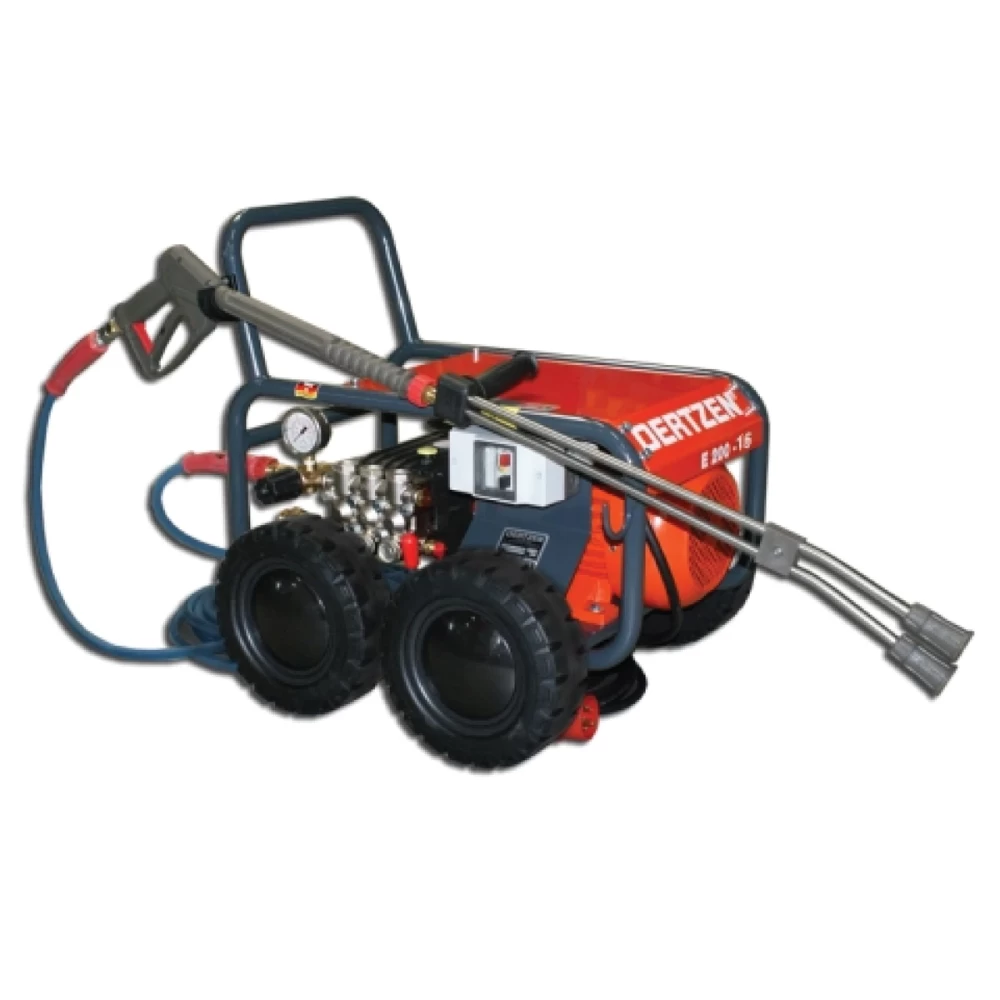

COLD WATER HIGH PRESSURE CLEANER

OERTZEN E 200-16

Flow rate max.

1000 l/h / 264 gal/h

Unloading pressure

250 bar / 3625 psi

Working pressure max.

230 bar / 3335 psi

Standard voltage

400 V/3P/50 Hz

Pump speed

1420 1/min

Connecting power

6.0 kW

Dimensions (frame: LxWxH)

630 x 540 x 630 mm

Weight

77 kg / 170 lb

OVERVIEW

OERTZEN E 200-16
Cold water high pressure cleaner
3 cyl. inline plunger pump 16 l/min / 4.2 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, container cleaning, drain cleaning, floor cleaning, facade cleaning, high pressure cleaning, industrial cleaning

Standard equipment: double lance 660 mm / 23 in (710.700.022) with HIP flat stream nozzle 2538 (710.742.538), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm / 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

E 200-16 VA - stainless steel frame
option: non marking wheels

hot water module HOT BOX 200 (see accessories) turns E 200-16 into hot water cleaner

Technical characteristics

Technical characteristics

Flow rate max.

1000 l/h / 164 gal/h

Unloading pressure

250 bar / 3625 psi

Working pressure max.

230 bar / 3335 psi

Water temperature max.

cold water

Standard voltage

400 V/3~50 Hz

Special voltage

on request

Pump speed

1420 1/min

Power source

electric motor

Connecting power

6.0 kW

Engine / motor output

-

Thermo valve

standard

Safety Control Stop SCS

option

Dimensions ( frame: LxWxH)

630 x 540 x 630 mm / 24.5 x 21 x 24.5 in

Weight

77 kg / 170 lb

Please notice

technical data are subject to alterations
