OERTZEN - 322 KL
|
Flow rate max |
960 l/h / 253 gal/h |
|
Unloading pressure |
210 bar / 3045 psi |
|
Working pressure max |
190 bar / 2755 psi |
|
Water temperature max |
Cold water |
|
Standard voltage |
400 V/3P/50 Hz |
|
Pump speed (rpm) |
1420 1/min |
|
Power source |
Electric motor |
|
Connecting power |
5.1 kw |
|
Safety control stop SCS |
Start/Stop (time delay) |
|
Dimensions (frame: L×W×H) |
750×390×860 mm |
|
Weight |
61 kg / 135 lb |

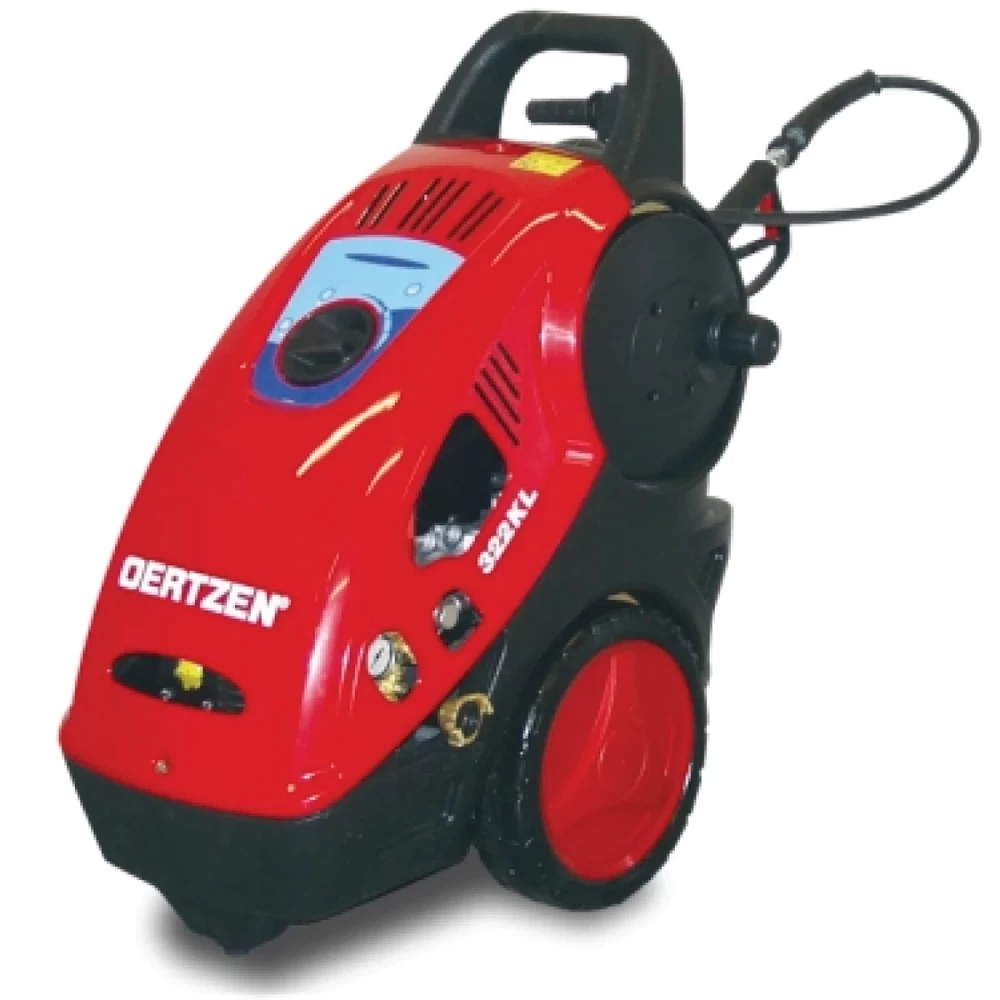

OERTZEN 322 KL
Cold water high pressure cleaner
3 cyl. inline plunger pump 16 l/min / 4.2
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min, slowly running machine
start/stop device (time delay)
pump system pressureless by closing spray pistol (stand by operation)
integrated detergent tank 15 l / 4 gal
integrated Hose reel with 15 m / 49 ft hp hose
vario lance with point/rotatry point jet
hp cleaner with 2 wheels and PE hood
Application range: commercial cleaning, container cleaning, drain cleaning, facade cleaning, floor cleaning, high pressure cleaning
Standard equipment: double lance (712.100.301) with flat stream nozzle (710.742.538), vario lance (712.389.910), hp spray pistol 1/4" with insulated bar and swivel joint (712.100.298), hp safety hose NW 8, 15 m / 49 ft (710.702.210)
|
Technical characteristics |
|
|
Flow rate max. |
960 l/h / 253 gal/h |
|
Unloading pressure |
210 bar / 3045 psi |
|
Working pressure max. |
190 bar / 2755 psi |
|
Water temperature max. |
cold water |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
- |
|
Pump speed |
1420 1/min |
|
Power source |
elektric motor |
|
Connecting power |
5.1 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
Start/Stop (time delay) |
|
Dimensions ( frame: LxWxH) |
750 x 390 x 860 mm |
|
Weight |
61 kg / 135 lb |
|
Please notice |
technical data are subject to alterations |
