OVERVIEW

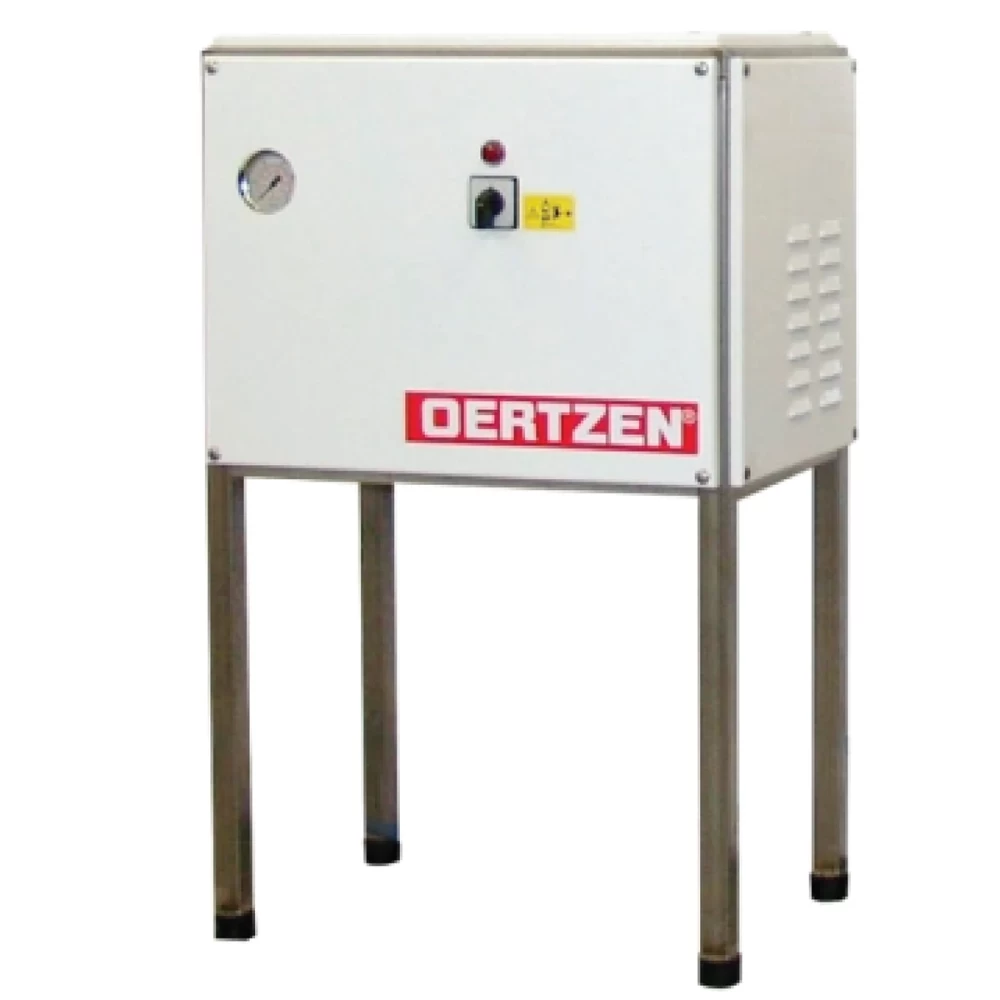

OERTZEN S 314 VA
Cold water high pressure cleaner, stationary unit
3 cyl. inline plunger pump 12 l/min / 3.2 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
Safety Control Stop SCS - automat. stop system (motor off)
after closing spray pistol (20 sec.) - immediate restart with opening spray pistol
pump system pressureless by closing spray pistol (stand by operation)
motor/pump unit protected by solid, surrounding INOX steel frame, panels powder coated

Application range: commercial cleaning, container cleaning, drain cleaning, floor cleaning, high pressure cleaning, industrial cleaning, wall cleaning

Standard equipment: single lance 600 mm 23 in (710.700.030) with HIP flat stream nozzle 07 (710.712.507), high pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET HP safety hose NW 8, 10 m / 33 ft (710.702.064)

Model: S 314 VA, wall mounted 710.000.530
same as S 314 VA but without SCS
for wall mounting or floor racking (option) with INOX frame and cover

Model: S 312 VA, wall mounted 710.000.549
alterating current 230 V/50 Hz, 620 l/h / 164 gal/h, 170 bar / 2465 psi
