COLD WATER HIGH PRESSURE CLEANER

OERTZEN - 312 Profi

Flow rate max.

620 l/h / 164 gal/h

Unloading pressure

190 bar / 2755 psi

Working pressure max.

170 bar / 2465 psi

Standard voltage

230 V/1P/50 Hz

Pump speed

1420 1/min

Connecting power

3.5 kW

Dimensions (frame: LxWxH)

500 x 280 x 310 mm

Weight

38 kg / 84 lb

OVERVIEW

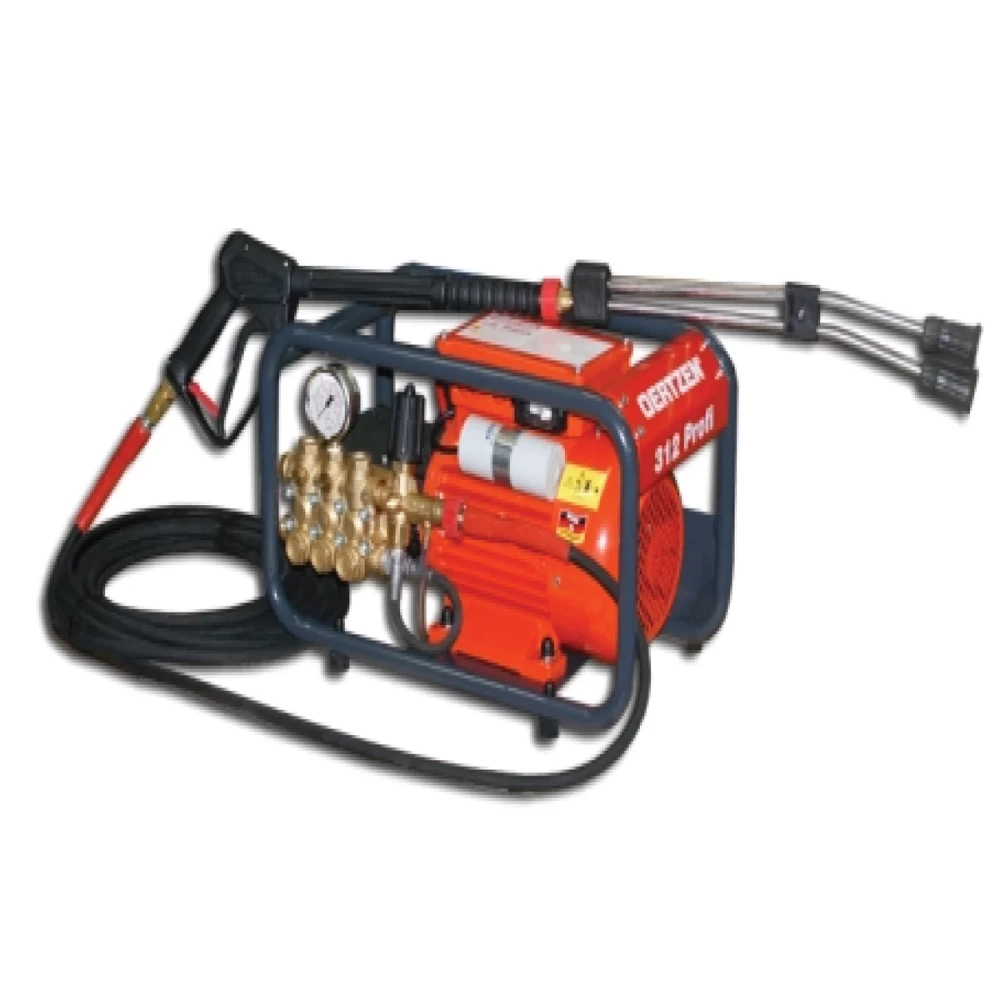

OERTZEN 312 Profi
Cold water high pressure cleaner
3 cyl. inline plunger pump 10 l/min / 2.6 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
low pressure detergent injector
motor/pump unit protected by solid, surrounding steel frame (powder coated)

Application range: abrasive blasting, commercial cleaning, container cleaning, drain cleaning, facade cleaning, floor cleaning, high pressure cleaning, industrial cleaning

Standard equipment: double lance 490 mm / 19 in (710.700.021) with HIP flat stream nozzle 3538 (710.743.538), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 310 bar / 4495 psi 1/4" with insulated handle 560 mm / 22 in (710.700.003) and swivel joint (710.708.057), JET high pressure safety hose NW 8, 10 m / 33 ft (710.702.067)

Option: wheel barrow - makes Profi mobile
Option: hot water module HOT BOX 200 - makes Profi hot
Option: integrated hot water boiler on frame - makes Profi hot and mobile
Photo: E 312-18 kW Mobil, special design: INOX frame, non marking wheels - please see S 312 E-VA under "HOT WATER"

Technical characteristics

Technical characteristics

Flow rate max.

620 l/h / 164 gal/h

Unloading pressure

190 bar / 2755 psi

Working pressure max.

170 bar / 2465 psi

Water temperature max.

cold water

Standard voltage

230 V/1~50 Hz

Special voltage

on request

Pump speed

1420 1/min

Power source

electric motor

Connecting power

3.5 kW

Engine / motor output

-

Thermo valve

option

Safety Control Stop SCS

option

Dimensions ( frame: LxWxH)

500 x 280 x 310 mm / 19.5 x 10.9 x 12.1 in

Weight

38 kg / 84 lb

Please notice

technical data are subject to alterations
