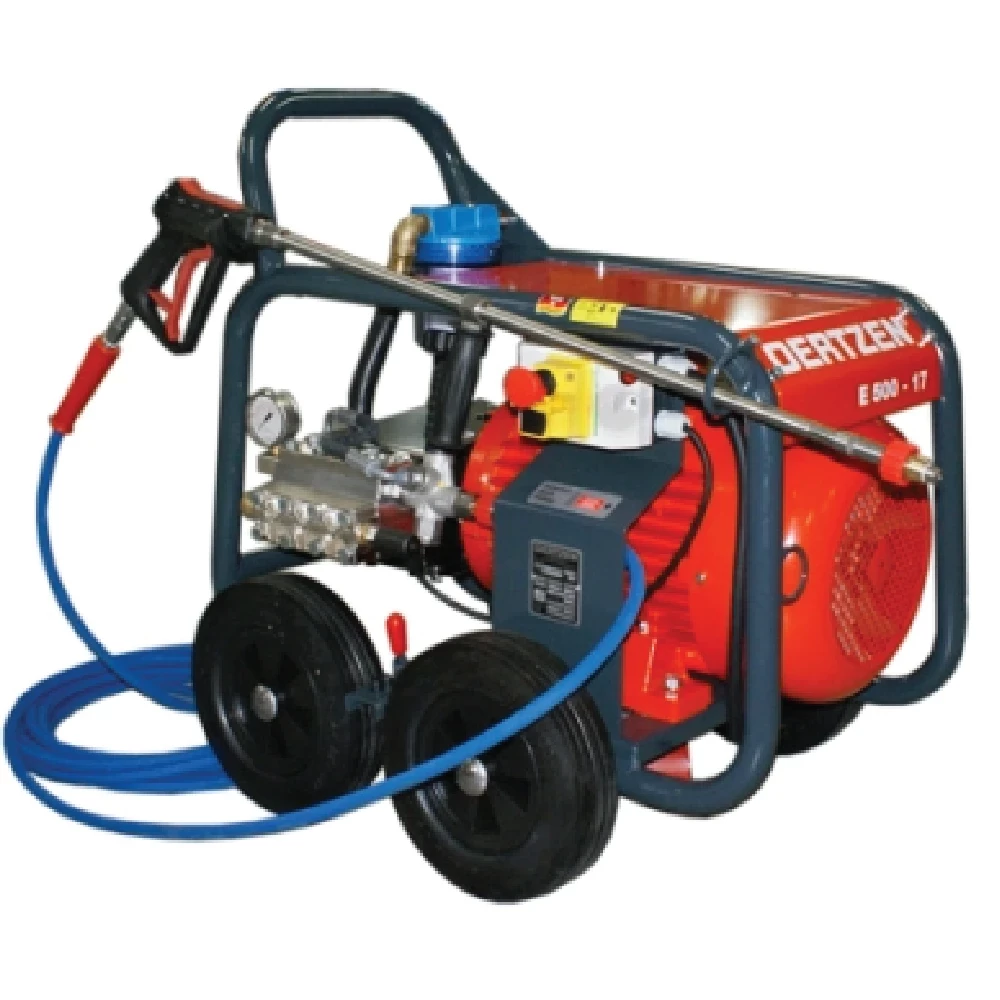

COLD WATER HIGH PRESSURE CLEANER

OERTZEN E 500-17

Flow rate max.

1020 l/h / 270 gal/h

Unloading pressure

530 bar / 7685 psi

Working pressure max.

500 bar / 7250 psi

Standard voltage

400 V/3P/50 Hz

Pump speed

1420 1/min

Connecting power

16.9 kW

Dimensions (frame: LxWxH)

800 x 600 x 800 mm

Weight

159 kg / 350 lb

OVERVIEW

OERTZEN E 500-17
Cold water high pressure cleaner
3 cyl. inline plunger pump 17 l/min / 4.5 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water shortage control protects pump from cavitation
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, concrete restoration, container cleaning, decoating, derusting, drain cleaning, facade cleaning, floor cleaning, gully cleaning, high pressure cleaning, industrial cleaning, paint removal, water-sand blasting

Standard equipment: single lance 800 mm / 31 in (710.704.952) with HIP flat stream nozzle 3538 (710.743.538), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 / 7250 psi bar 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064) micro filter 5", water shortage control, 5 m / 16 ft electric cable with 32 A CEE plug

E 500-17 Ex,engl,12-17 - designed for explosion endangered areas - optional with stainless steel frame - see extra equipment



hot water module HOT BOX 500 (see accessories) turns E 500-17 into hot water cleaner

Technical characteristics

Technical characteristics

Flow rate max.

1020 l/h / 270 gal/h

Unloading pressure

530 bar / 7685 psi

Working pressure max.

500 bar / 7250 psi

Water temperature max.

cold water

Standard voltage

400 V/3~50 Hz

Special voltage

on request

Pump speed

1420 1/min

Power source

electric motor

Connecting power

16.9 kW

Engine / motor output

-

Thermo valve

standard

Safety Control Stop SCS

option

Dimensions ( frame: LxWxH)

800 x 600 x 800 mm / 31.2 x 23.4 x 31.2 in

Weight

159 kg / 350 lb

Please notice

technical data are subject to alterations
