OVERVIEW

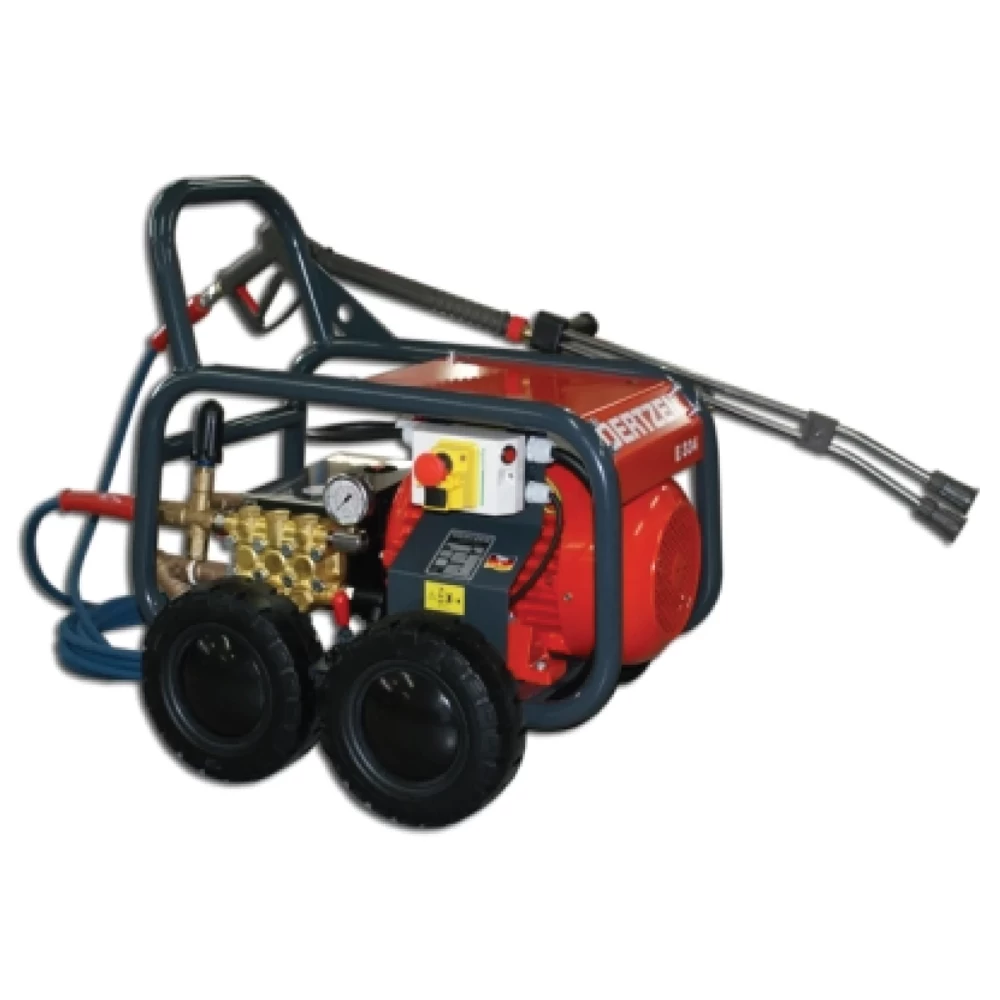

OERTZEN E 334
Cold water high pressure cleaner
3 cyl. inline plunger pump 33 l/min / 8.7 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water shortage control protects pump from cavitation
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from curling up

Application range: container cleaning, drain cleaning, facade cleaning, floor cleaning, gully cleaning, high pressure cleaning, industrial cleaning, tank cleaning

Standard equipment: double lance 660 mm / 26 in (710.700.022) with HIP flat stream nozzle10 (710.712.510), high pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm / 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

Option: working simultaneously with 2 sets of spray equipment

E 334 Ex - designed for explosion endangered areas - optional with stainless steel frame - see extra equipment
