OERTZEN E 1000
|
Flow rate max. |
1090 l/h / 288 gal/h |
|
Unloading pressure |
1050 bar / 15225 psi |
|
Working pressure max. |
1000 bar / 14500 psi |
|
Standard voltage |
400 V/3P/50 Hz |
|
Pump speed |
980 1/min |
|
Connecting power |
30 kW |
|
Dimensions (frame: LxWxH) |
1275 x 580 x 1090 mm |
|
Weight |
460 kg / 1014 lb |

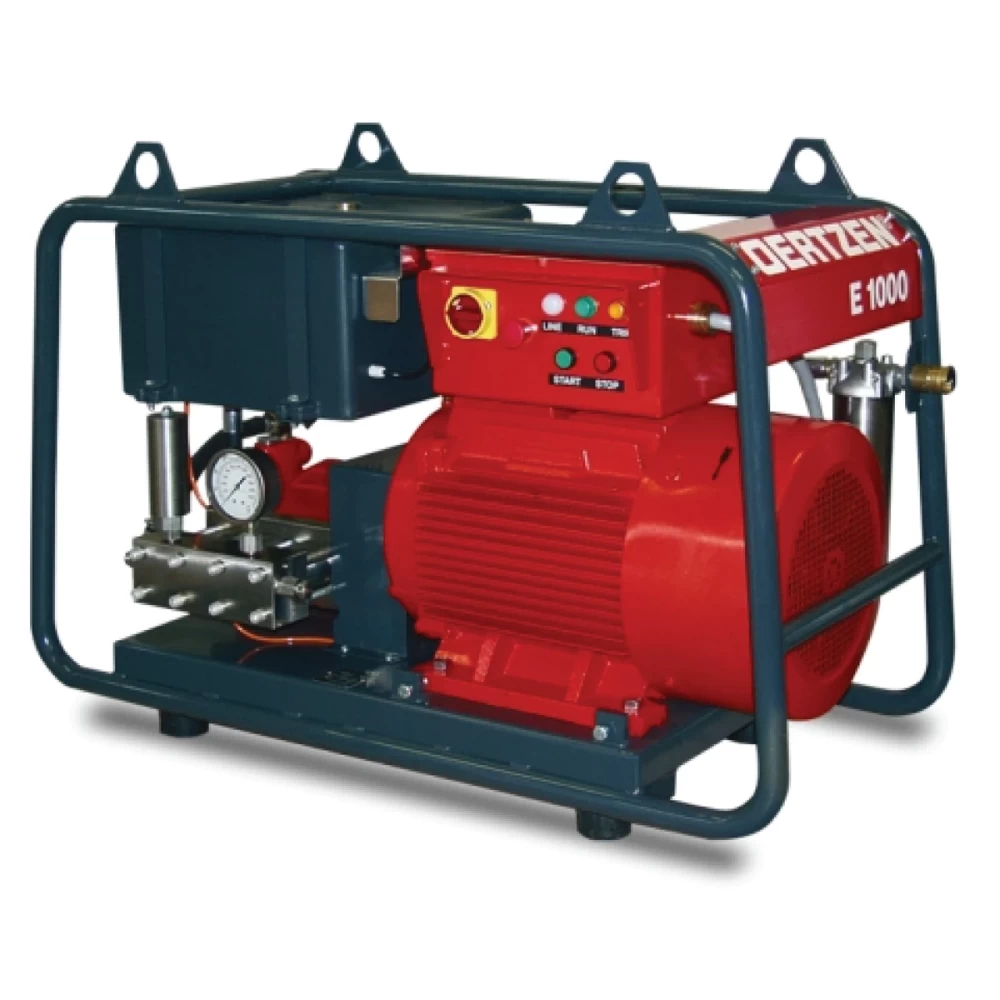

OERTZEN E 1000
Cold water ultra high pressure aggregate
3 cyl. inline plunger pump 18 l/min / 4.8 gal/min
(brass pump head, ceramic plungers)
tooth belt drive, maintenance free
Star Delta starting device
motor/pump rpm 980 1/min - slowly running machine
water storage tank, float lever operated
water feeding pump protects high pressure pump from cavitation
water micro filters (2) protect pumps from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
on rubber feet, crane eyes, hose swivel prevents hp hose from curling up
Application range: abrasive blasting, concrete restoration, decoating, derusting, high pressure cleaning, industrial cleaning, paint removal, heat exchanger cleaning
Standard equipment: 20 m / 66 ft SOOPERJET ultra high pressure hose with swivel joint, dump gun, single lance 920 mm / 36 in VA (inox) with shoulder support, side bar and flat stream nozzle, 10 m / 33 ft electric cable with CEE plug 63 A
Option: wheel kit with locking brake
|
Technical characteristics |
|
|
Flow rate max. |
1090 l/h / 288 gal/h |
|
Unloading pressure |
1050 bar / 15225 psi |
|
Working pressure max. |
1000 bar / 14500 psi |
|
Water temperature max. |
cold water |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
on request |
|
Pump speed |
980 1/min |
|
Power source |
electric motor |
|
Connecting power |
30 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
|
|
Dimensions ( frame: LxWxH) |
1275 x 580 x 1090 mm / 49.7 x 22.6 x 42.5 in |
|
Weight |
460 kg / 1014 lb |
|
Please notice |
technical data are subject to alterations |
