OERTZEN - Z 200 - PTO
|
Flow rate max |
1260 l/h / 333 gal/h |
|
Unloading pressure |
220 bar / 3190 psi |
|
Working pressure max |
200 bar / 2900 psi |
|
Pump speed (rpm) |
540 1/min |
|
Power source |
pto |
|
Dimensions (frame: L×W×H) |
710×850×700 mm |
|
Weight |
40 kg / 88 lb |

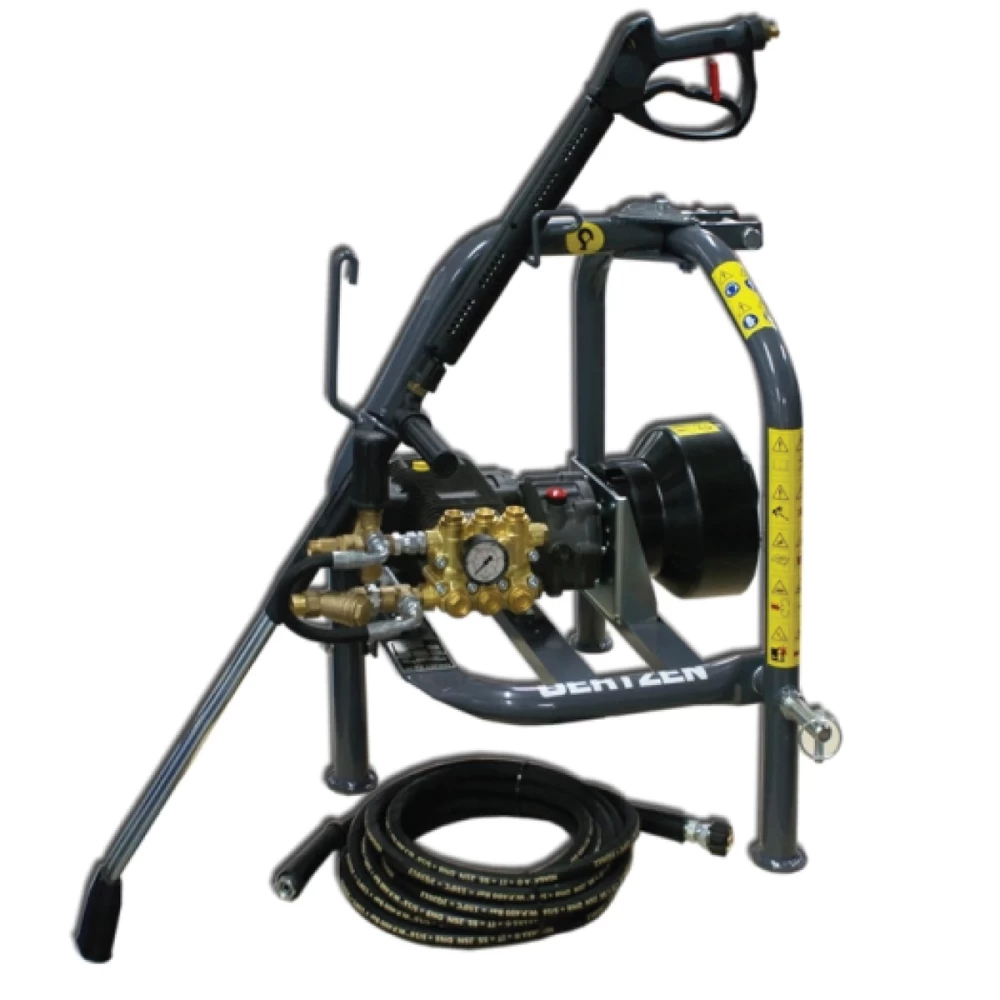

OERTZEN Z 200 PTO
Cold water high pressure cleaner for pto drive
3 cyl. inline plunger pump 21 l/min / 5.5 gal/min
(brass pump head, ceramic plungers)
reduction gear, motor/pump rpm 540 1/min - turning left or right
pump system pressureless by closing spray pistol (stand by operation)
hose swivel prevents hp hose from messing up
required power supply 10.5 kW
Application range: automobile cleaning, commercial cleaning, container cleaning, drain cleaning, floor cleaning, high pressure cleaning
Standard equipment: 10 m high pressure hose (300 bar) with hose swivel, spray pistol, insulating handle, double spray lance with variable pressure regulation, HIP nozzle
|
Technical characteristics |
|
|
Flow rate max. |
1260 l/h / 333 gal/h |
|
Unloading pressure |
220 bar / 3190 psi |
|
Working pressure max. |
200 bar / 2900 psi |
|
Water temperature max. |
- |
|
Standard voltage |
- |
|
Special voltage |
- |
|
Pump speed |
540 1/min |
|
Power source |
pto |
|
Connecting power |
- |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
- |
|
Dimensions ( frame: LxWxH) |
710 x 850 x 700 mm / 27.7 x 33.2 x 27.3 in |
|
Weight |
40 kg / 88 lb |
|
Please notice |
technical data are subject to alterations |
