OVERVIEW

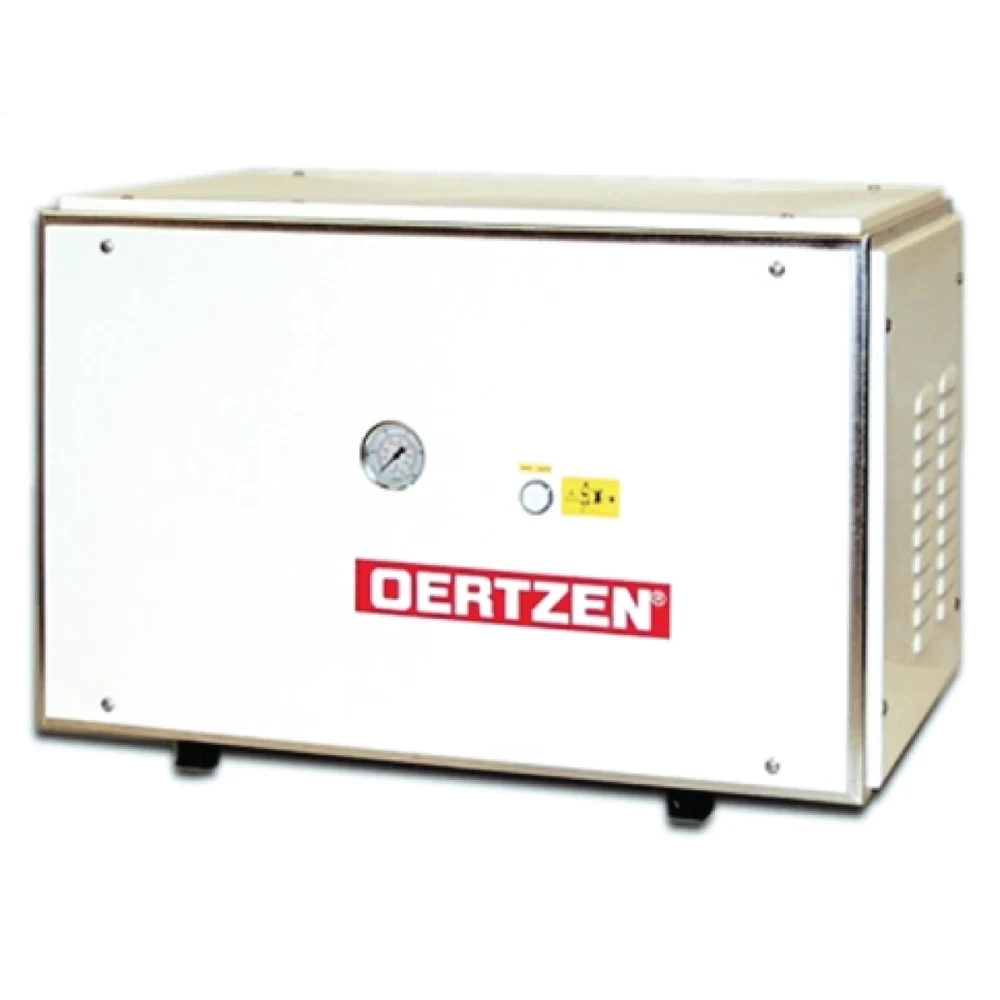

OERTZEN S 334 VA
Cold water high pressure cleaner, stationary unit
3 cyl. inline plunger pump 31 l/min / 8.2 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
Safety Control Stop SCS - automat. stop system (motor off)
after closing spray pistol (20 sec.) - immediate restart with opening spray pistol
pump system pressureless by closing spray pistol (stand by operation)
motor/pump unit protected by solid, surrounding INOX steel frame, panels powder coated

Application range: container cleaning, drain cleaning, floor cleaning, high pressure cleaning, industrial cleaning, wall cleaning, tank cleaning

Standard equipment: 2 x single lance 600 mm / 23 in (710.700.030) with HIP flat stream nozzle 07 (710.712.507), high pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm / 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET HP safety hose NW 8, 10 m / 33 ft (710.702.064)

Model: S 334 VA-H 710.000.545
11 kW electric motor (4 pole), same as S 334 VA (710.000.544) but operating pressure 210 bar / 3045 psi

Both models (S 334 VA and S 334 VA-H) come with 2 sets of spray equipment for working simultaneously.
