Oertzen-314 Prof
Flow rate max. |
760 l/h / 201 gal/h |
Unloading pressure |
160 bar / 2320 psi |
Working pressure max. |
140 bar / 2030 psi |
Standard voltage |
230 V/1P/50 Hz |
Pump speed |
1420 1/min |
Connecting power |
3.5 kW |
Dimensions (frame: LxWxH) |
500 x 280 x 310 mm |
Weight |
38 kg / 84 lb |

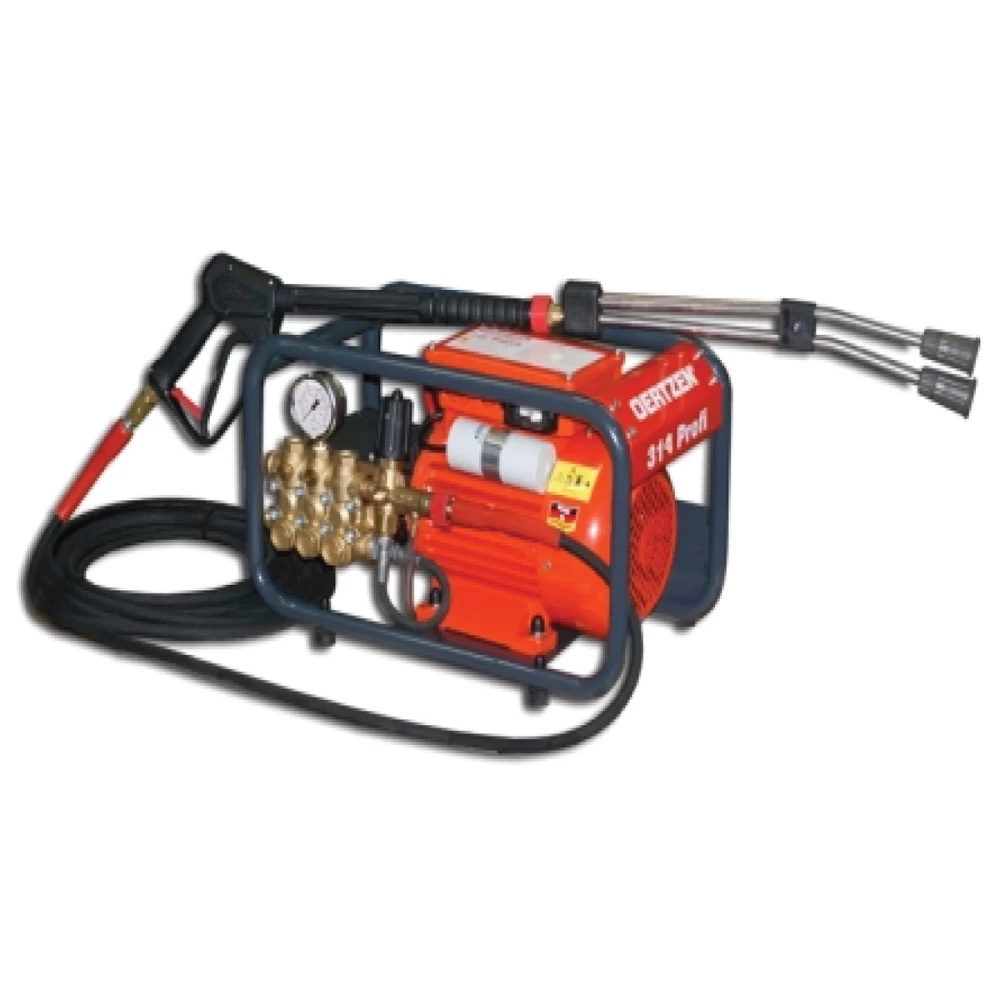

OERTZEN 314 Profi
Cold water high pressure cleaner
3 cyl. inline plunger pump 12 l/min / 3.2 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
low pressure detergent injector
motor/pump unit protected by solid, surrounding steel frame (powder coated)
Application range: abrasive blasting, commercial cleaning, container cleaning, drain cleaning, facade cleaning, floor cleaning, high pressure cleaning, industrial cleaning
Standard equipment: double lance 490 mm / 19 in (710.700.021) with HIP flat stream nozzle 3538 (710.743.538), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 310 bar / 4495 psi 1/4" with insulated handle 560 mm / 22 in (710.700.003) and swivel joint (710.708.057), JET high pressure safety hose NW 8, 10 m / 33 ft (710.702.067)
Option: wheel barrow - makes Profi mobile
Option: hot water module HOT BOX 200 - makes Profi hot
Technical characteristics |
|
Flow rate max. |
760 l/h / 201 gal/h |
Unloading pressure |
160 bar / 2320 psi |
Working pressure max. |
140 bar / 2030 psi |
Water temperature max. |
cold water |
Standard voltage |
230 V/1~50 Hz |
Special voltage |
on request |
Pump speed |
1420 1/min |
Power source |
electric motor |
Connecting power |
3.5 kW |
Engine / motor output |
- |
Thermo valve |
option |
Safety Control Stop SCS |
option |
Dimensions ( frame: LxWxH) |
500 x 280 x 310 mm / 19.5 x 10.9 x 12.1 in |
Weight |
38 kg / 84 lb |
Please notice |
technical data are subject to alterations |
