Additel 960
• Pressurize large-volume workload
• Generate pressure to 60,000 psi (4,200 bar) pressure
• Increase and decrease pressure smoothly
• Two pressure ports

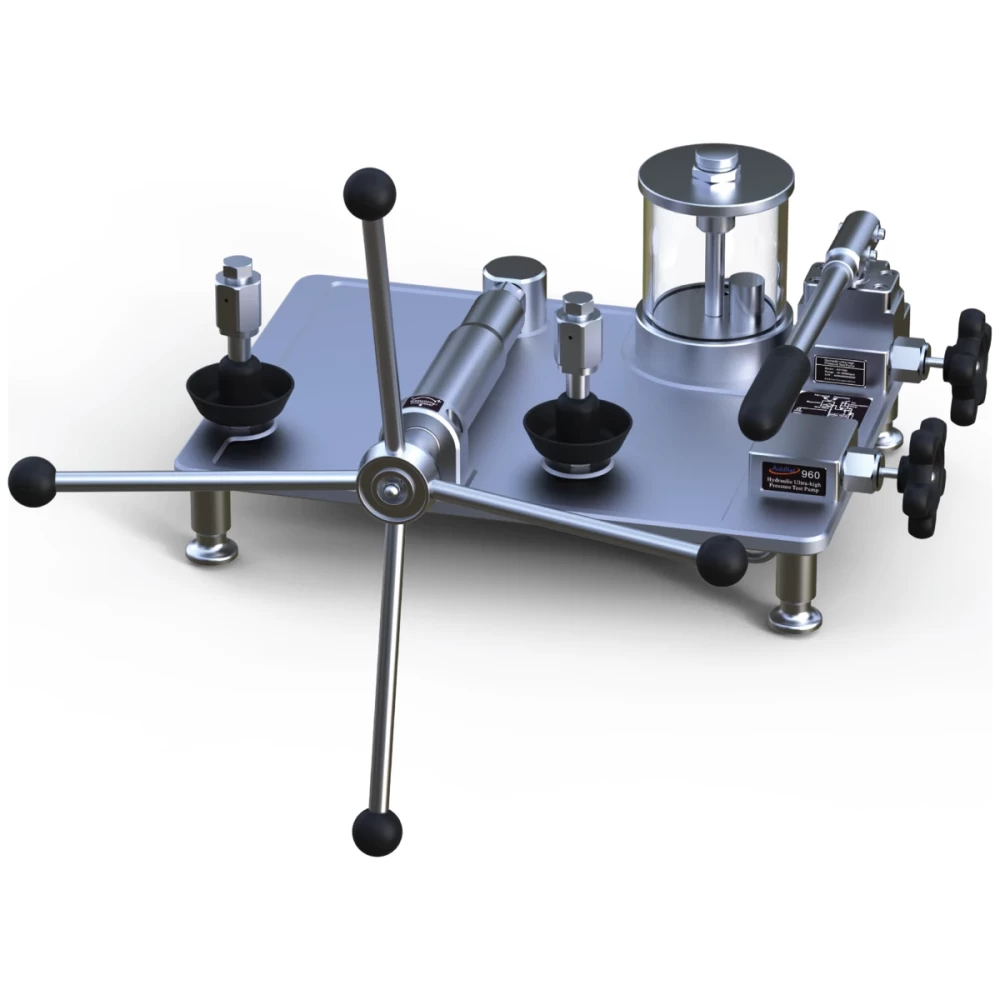

The new Additel 960 Hydraulic Pressure Test Pump is a benchtop pressure pump designed to generate pressure to 60,000 psi (4,200 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the high pressure, fine adjust screw press. The 960 test pump incorporates an isolation valve that isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. The Additel 960 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers.
Generate Ultra-high Pressure
Generate pressure up to 60,000 psi (4,200 bar)
Hand pump to fill large volume systems
Durable and Minimal Maintenance
Isolation valve provides stable pressures while
reducing maintenance on the hand pump check valve
Easy-to-use
60,000 psi (4,200 bar) can be generated easily with
the dual-piston system
|
Specifications |
|
|
Media |
Oil |
|
Generated Pressure Range |
0 to 60,000psi (4,200bar) gauge pressure. |
|
Reservoir Capacity |
420ml (25.6 cubic inches) |
|
Material |
Ram/adapters: SS |
|
Body: SS, aluminum, copper |
|
|
Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy |
|
|
Connection |
Test Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female |
|
Reference Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female |
|
|
1/2BSP female and M20X1.5 female connections are available upon request. |
|
|
Dimensions |
Height: 6.9" (175 mm) |
|
Base: 17.9" (455 mm) x 15.0" (380 mm) |
|
|
Weight |
33.1 lb (15 kg). |
|
Accessories Included |
|
Diethylhexyl Sebacate: 1 bottle (250 ml) |
|
Manual: 1 pc |
|
Carrying case (960-X-SET models only) |
|
Optional Accessories |
|
|

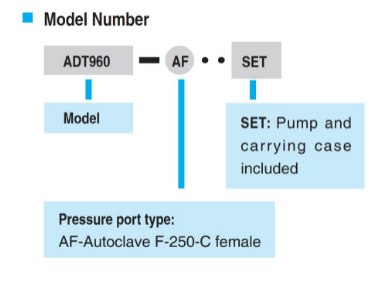

Model Number |
Specifications |
|
9201 |
Oil, Diethylhexyl Sebacate, 1 liter (1 quart) |
|
ADT960-MK |
Maintenance kit for Additel 959A pump |
|
ADT100-960-HK |
Hose Kit, External Reservoir Expansion Hose Kit for ADT959A |
|
9910 |
Carrying case for Additel 946A, Additel 959A or Additel 960 |
|
Documents and Links |
|
Additel 960 Hydraulic Ultra-High Pressure Test Pump Datasheet |
|
Additel 960 Hydraulic Ultra-High Pressure Test Pump User Manual |
|
