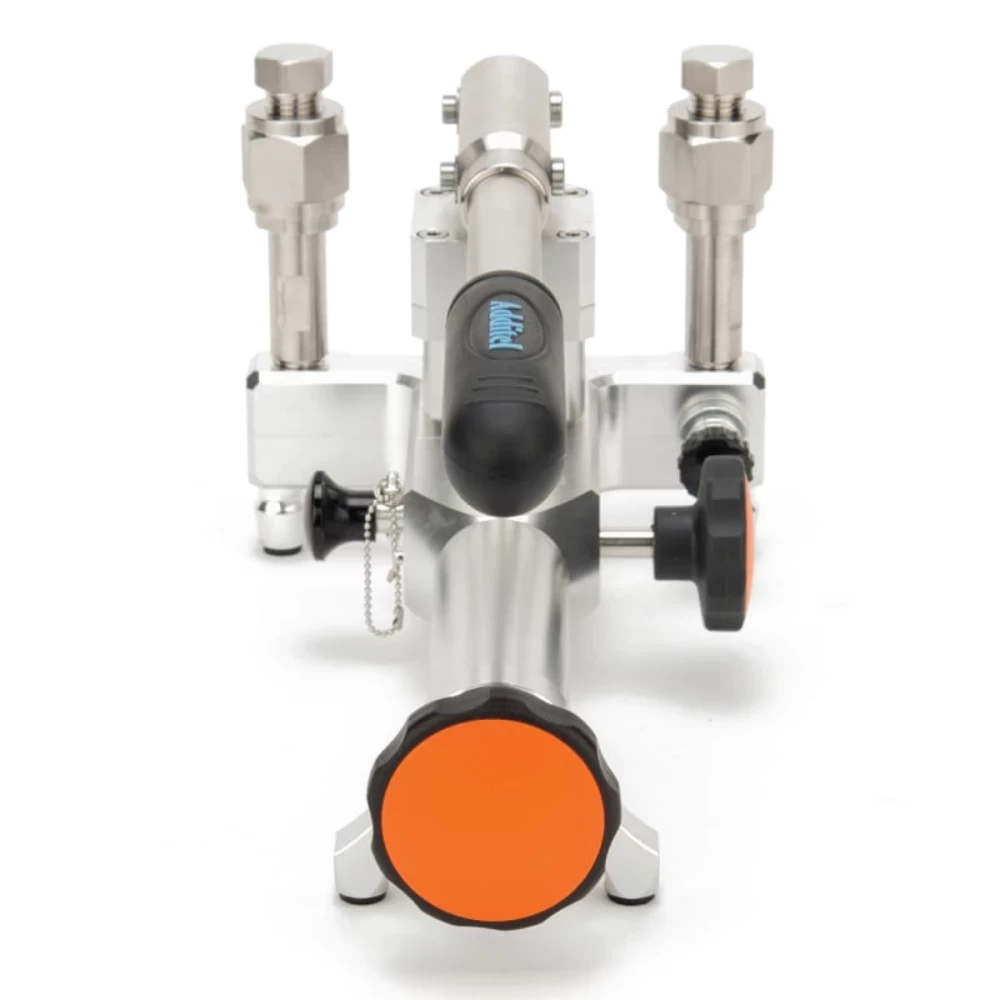

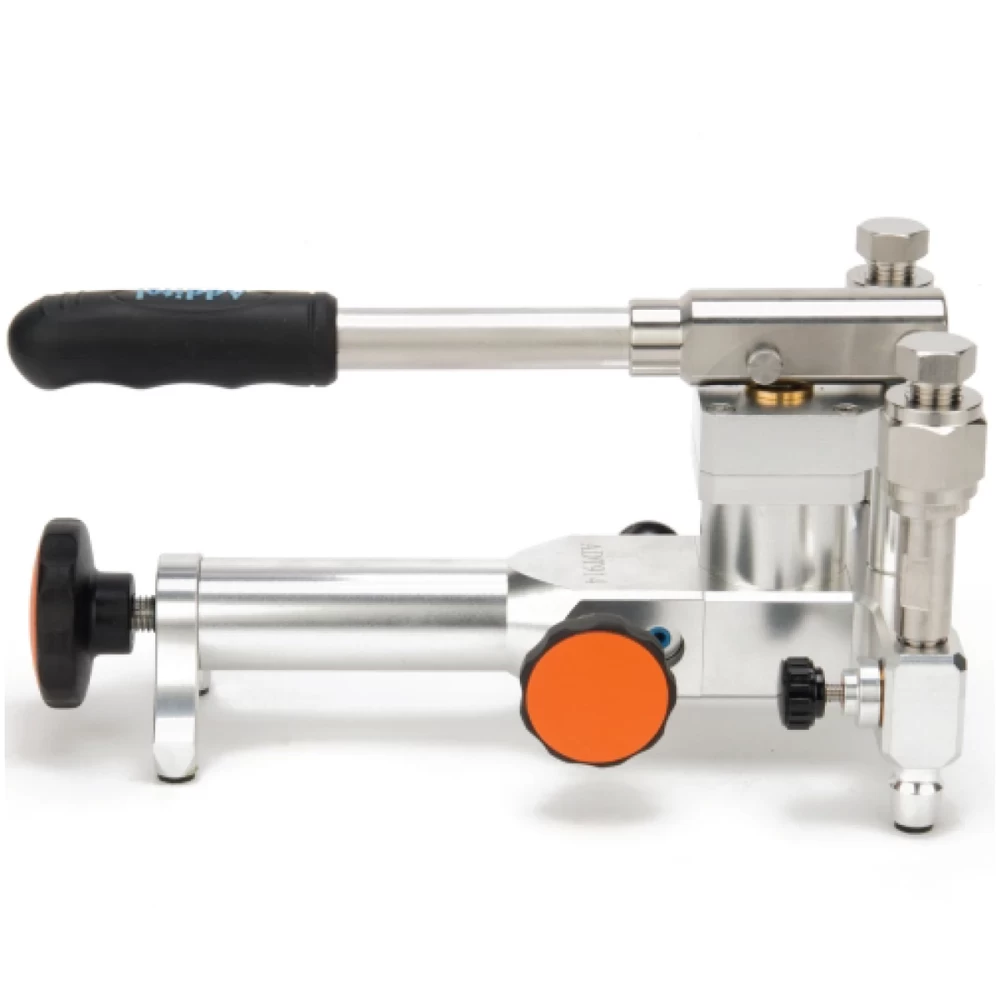

Additel 914A
• Portable, only 3.3 lb
• Great stability and high resolution
• Minimal maintenance
• Hand-tight quick connectors

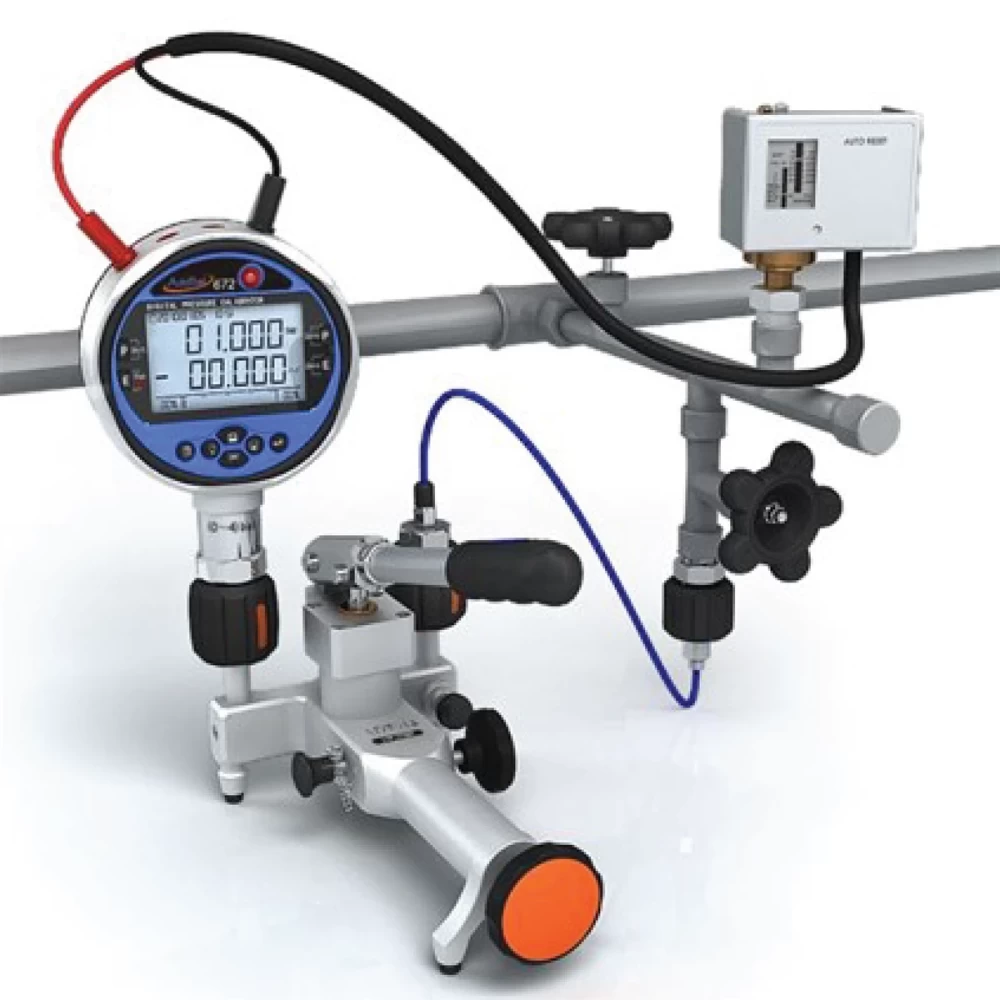

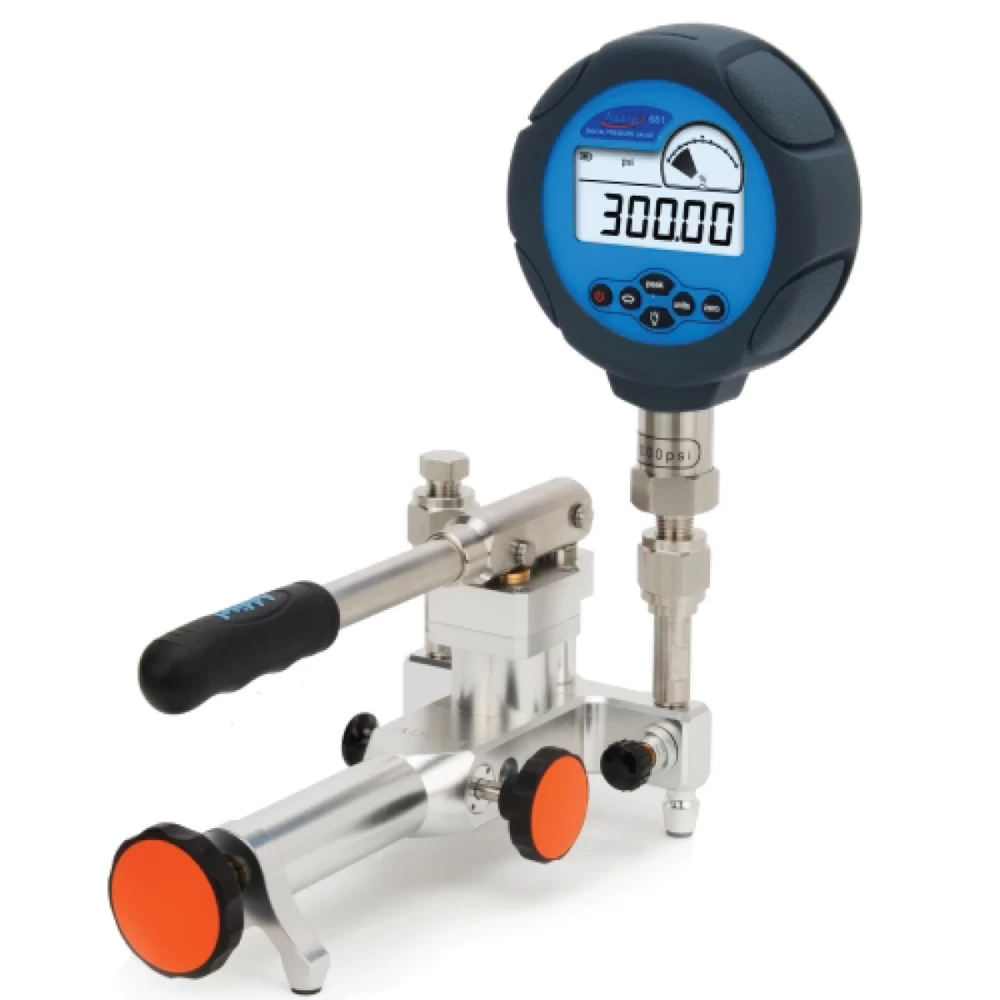

The 914A Pneumatic Pressure Test Pump is a hand-operated pressure pump designed to generate pressure from 95% vacuum to 375psi (25bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution of up to10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 914A is an ideal comparison test pump for pressure instruments calibration.
Portable: Only 3.3 lb (1.5 kg)
Adjustment Resolution
10 Pa (0.1 mbar)
High-quality screw press for fine pressure adjustment
Great Stability
A specially designed shut-off valve makes the
pressure as stable as possible during calibration
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from
moisture and dirt
Easy-to-use
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches
|
Specifications |
|
|
Media |
Air |
|
Generated Pressure Range |
95% vacuum to 375 psi (25 bar) positive pressure |
|
Adjustment Resolution |
10 Pa (0.1 mbar). |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: Buna-N |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 5.12" (130 mm) |
|
Base: 9.45" (240 mm) x 4.72" (120 mm) |
|
|
Weight |
3.3 lb (1.5 kg). |
|
Warranty |
1 year |

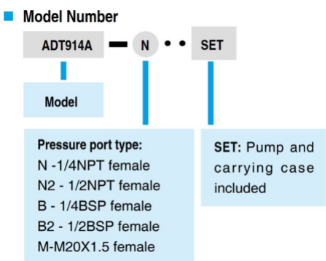

.png)
|
Accessories Included |
|
O-ring: 20 pcs |
|
Manual: 1 pc |
|
Carrying Case (914A-X-SET models only) |
|
Optional Accessories |
|
|
Model Number |
Description |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connections (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
ADT100-HTK-8K |
Hose test kit, 5 feet flexible hose, 8,000 psi, user-selectable male (1/4NPT, 1/2NPT, 1/4BSP, 1/2BSP, M20) to the user-selectable female hand-tight quick connector. |
|
9901-914 |
Carrying Case for one ADT914A pump and two ADT681 gauges or ADT672 calibrators |
|
ADT914A-MK |
Maintenance kit for Additel 914A pump |
|
9240 |
Differential pressure gauge holder |
|
Note: For oil-free applications contact Additel. |
|
|
Documents and Links |
|
Additel 914 Handheld Pneumatic Pressure Test Pump User Manual |
|
Videos |
|
Additel 914A Video Demo |
