Additel 937
• Compatible to phosphoric acid ester fluid and Skydrol Oil
• Three pressure ports
• Hand-tight quick connectors

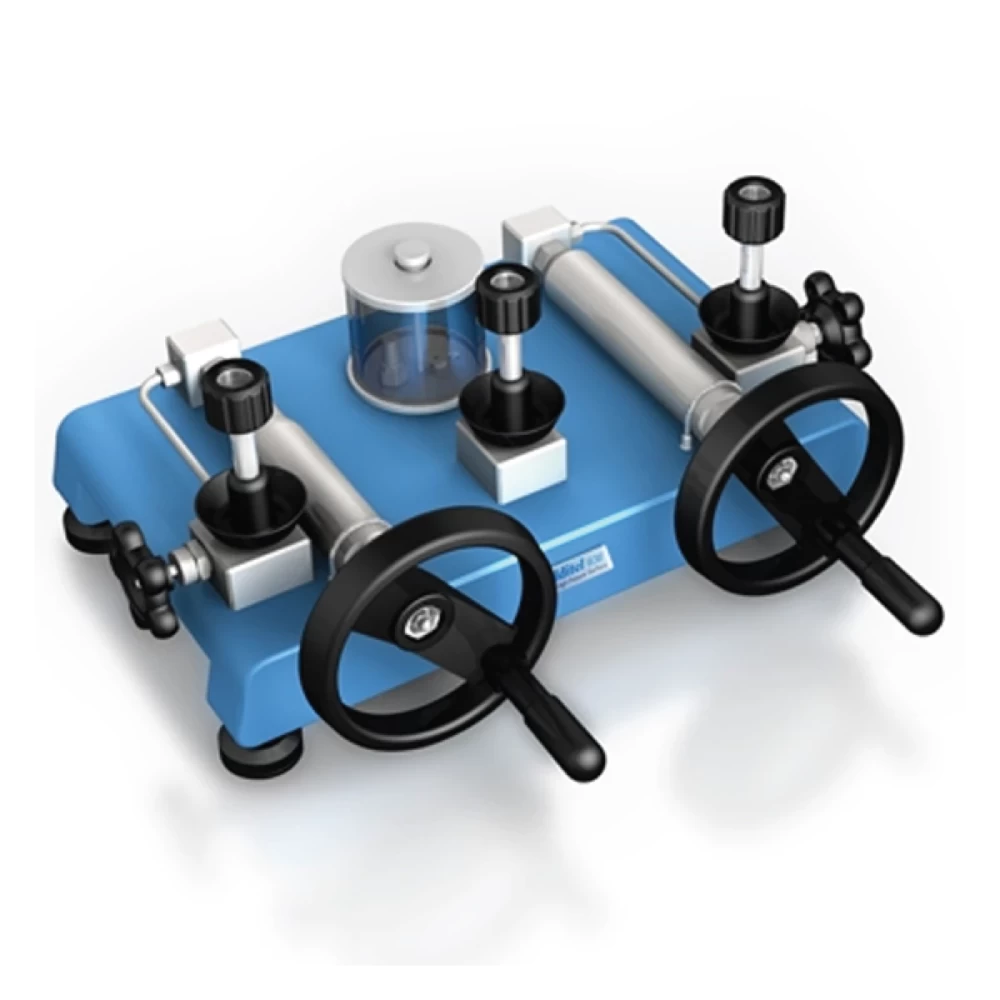

The 937 Hydraulic High-Pressure Calibration Pump is a hand-operated pressure pump designed for calibrating pressure measuring instruments with phosphoric acid ester fluid and Skydrol oil in the range from 85% vacuum to 15,000 psi (1000bar). With the patented screw press technology, high pressures can be easily generated, increased, and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check valve (non-returning valve), the 937 avoids the troublesome leakage issues that is usually experienced with hand pumps and allow for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 937 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators, or transducers in the laboratory.
High Pressure
Generates pressure up to 15,000 psi (1,000 bar)
Durable and Minimal Maintenance
Patented screw press technology, with no check
valve (non-returning valve) inside that is usually
used on troublesome hand pumps causing leakage.
Easy-to-use
High pressures can be generated easily, as well as
increased and decreased smoothly.
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to
the test pump without the need for PTFE tape or
wrenches.
|
Specifications |
|
|
Media |
Oil, compatible to phosphoric acid ester fluid and Skydrol Oil |
|
Generated Pressure Range |
85% vacuum to 15,000psi (1,000bar) positive. |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: EPDM,PTFE,Copper Alloy |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 9.1" (230 mm) |
|
Base: 20.5" (520 mm) x 14.2" (360mm). |
|
|
Weight |
35.2 lb (16 kg). |
|
Warranty |
1 year |
|
Accessories Included |
|
Mineral oil,1 bottle (250 ml)* |
|
O-ring: 20 pcs |
|
Carrying Case (937-X-SET models only) |
|
Optional Accessories |
|
|

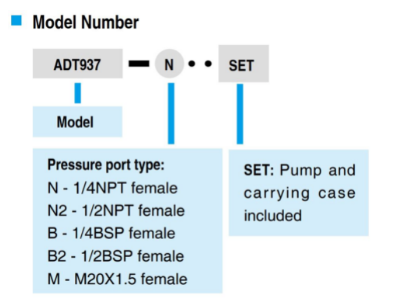

Model Number |
Description |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
9908 |
Carrying Case for 936, 937, 938, or 949 |
|
ADT937-MK |
Maintenance kit for Additel 937 pump |
