Additel 912A
• Portable
• Great stability and high resolution
• Minimal maintenance
• Hand-tight quick connectors

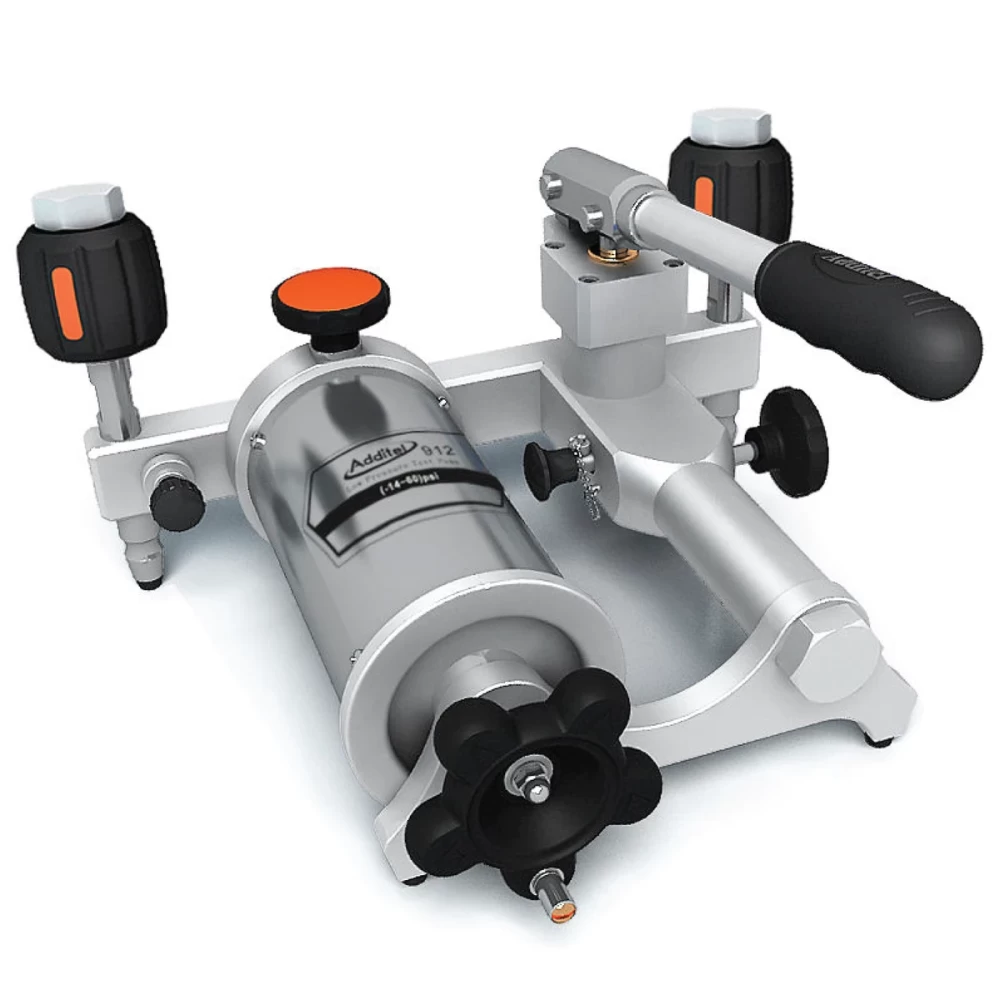

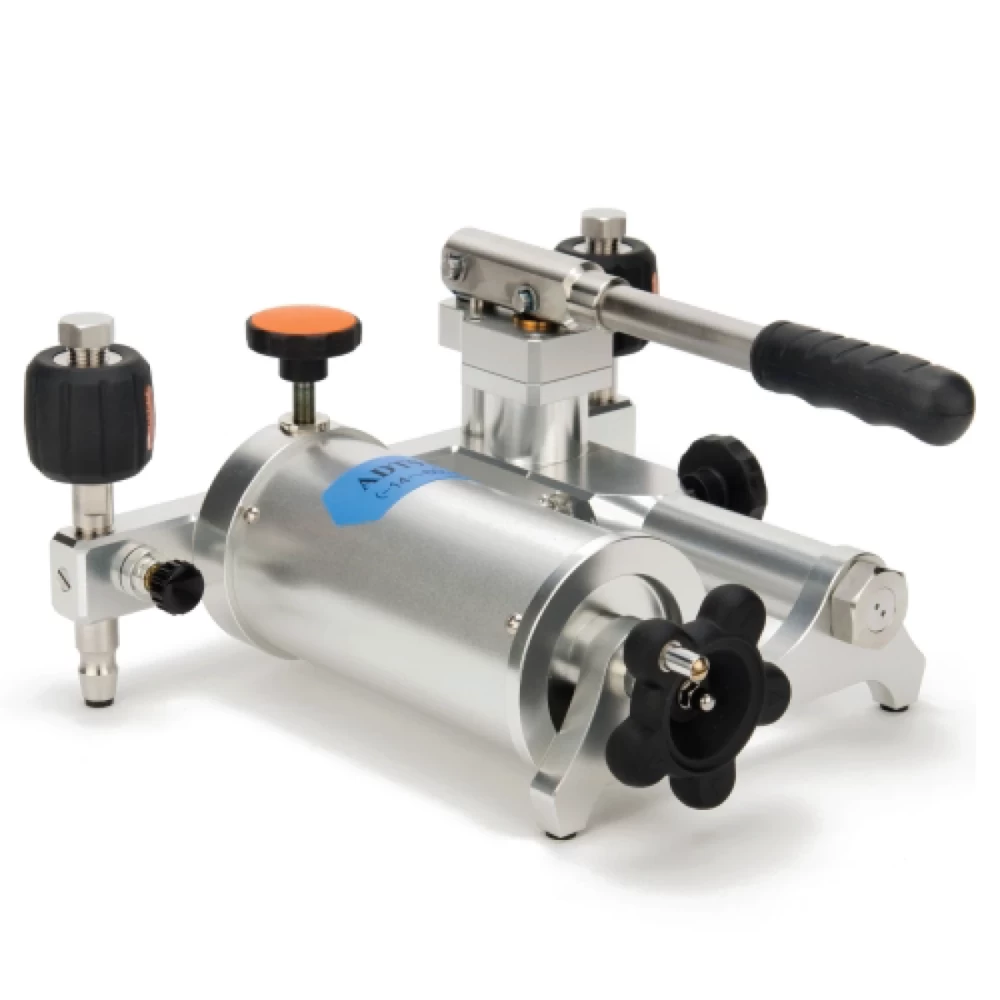

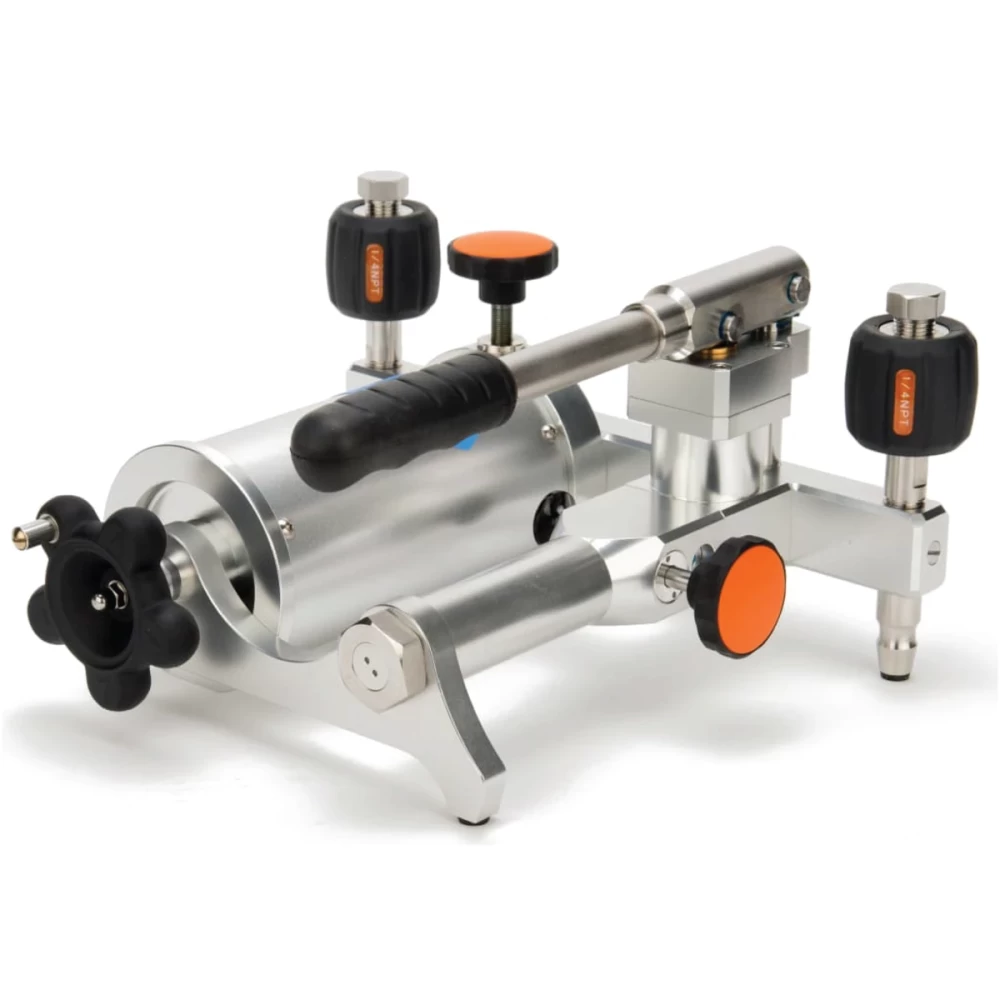

The 912A Pneumatic Pressure Test Pump is a hand-operated pressure pump designed to generate pressure from 95% vacuum to 60psi (4bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 Pa (0.001 mbar). The 912A is a very stable low-pressure calibrator. It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change. Most pumps make use of a check valve (non-returning valve) and are not well insulated which will cause large fluctuations in pressure with a change in ambient temperature or when the unit is touched. The 912A does not use a check valve and is remarkably stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 912A is an ideal comparison test pump for low-pressure applications.
Portable: Only 6.2 lb (2.8 kg)
Adjustment Resolution
0.1 Pa (0.001 mbar)
High-quality screw press for fine pressure adjustment
Great Stability
Isothermal chamber: the pressure chamber is
insulated to reduce the influence from environmental
temperature changes
Specially designed bellows minimize leakage to
guarantee excellent stability
Shut-off valve closes the air in the isothermal chamber
during calibration
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from
moisture and dirt
Easy-to-use
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches
|
Specifications |
|
|
Media |
Air |
|
Generated Pressure Range |
95% vacuum to 60 psi (4 bar) positive pressure |
|
Adjustment Resolution |
0.1 Pa (0.001 mbar). |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: Buna-N |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 5.51" (140 mm) |
|
Base: 10.75" (273 mm) x 10.16" (258 mm) |
|
|
Weight |
6.2 lb (2.8 kg). |
|
Warranty |
1 year |
|
Accessories Included |
|
O-ring: 20 pcs |
|
Manual: 1 pc |
|
Carrying Case (912A-X-SET models only) |
|
Optional Accessories |
|
|

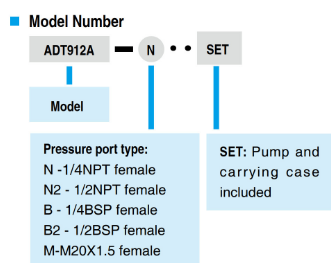

Model Number |
Description |
|
ADT912A-X-KIT |
Test kit for ADT912A (barb fitting, connection hoses, and adapters). X=connection type e.g. N-1/4NPTM, N2-1/2NPTM, B-1/4BSPM, B2- 1/2BSPM, M-M20X1.5M. |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connections (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
ADT100-HTK-8K |
Hose test kit, 5 feet flexible hose, 8,000 psi, user-selectable male (1/4NPT, 1/2NPT, 1/4BSP, 1/2BSP, M20) to the user-selectable female hand-tight quick connector. |
|
9904-912 |
Carrying Case for one ADT912A pump and two ADT681 gauges or ADT672 calibrators |
|
ADT912A-MK |
Maintenance kit for Additel 912A pump |
|
9240 |
Differential pressure gauge holder |
|
Note: For oil free applications contact Additel. |
|
|
Documents and Links |
|
Videos |
|

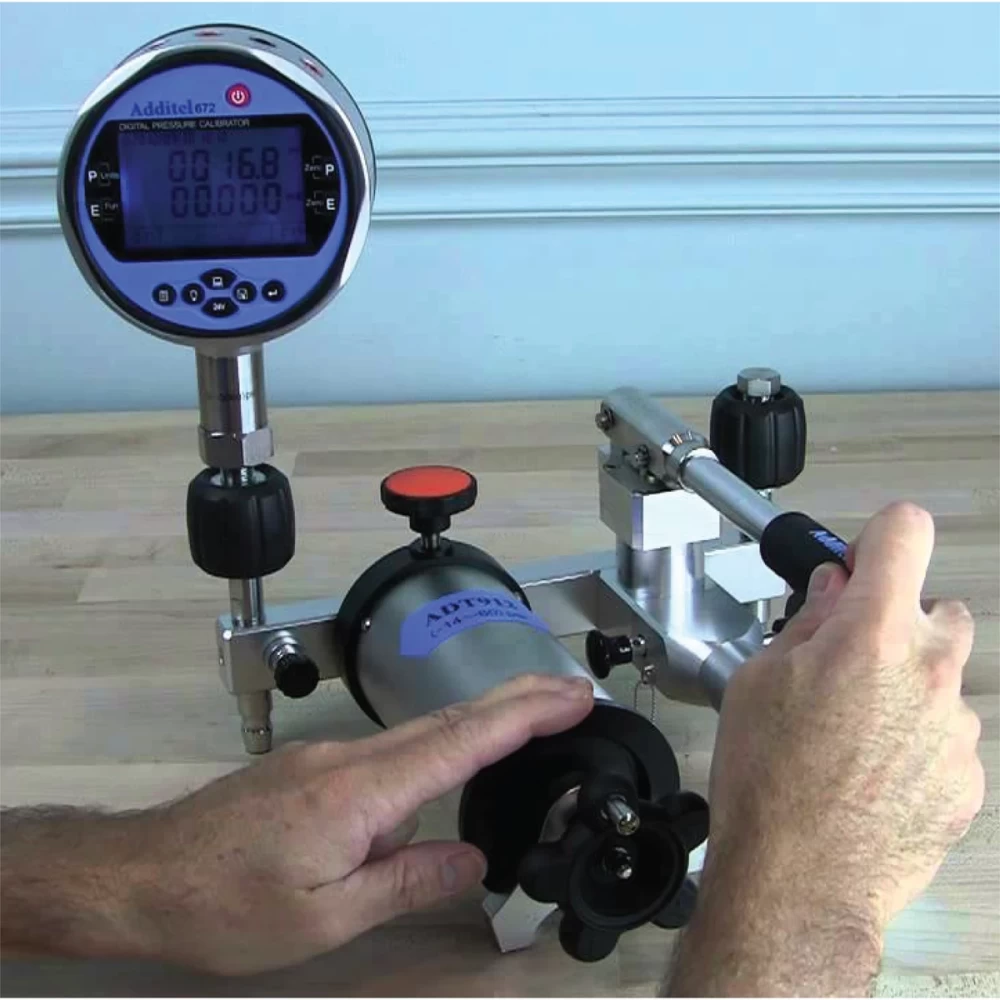

Additel 912A Video Demo |
