Additel 927
• Portable, only 7 lb
• Minimal maintenance
• Increase and decrease pressure smoothly
• Hand-tight quick connectors

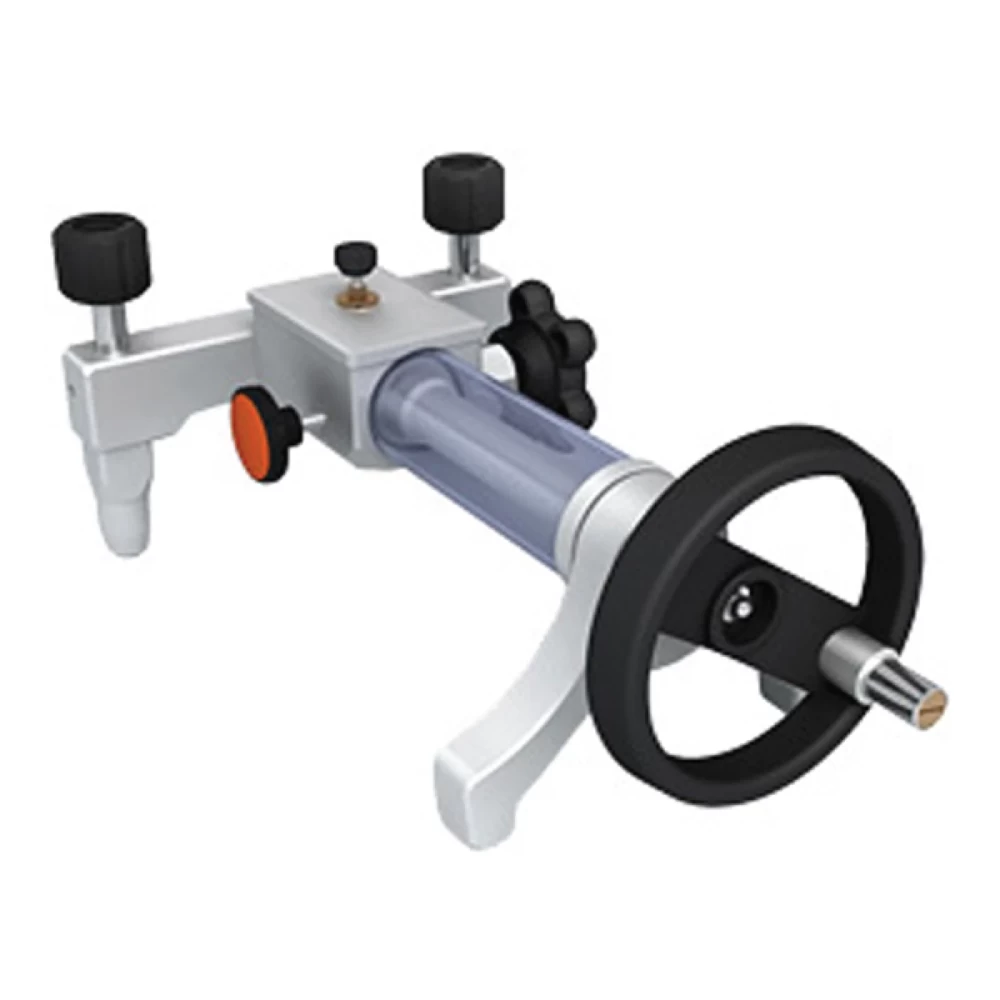

The 927 Hydraulic Pressure Test Pump is a hand-operated pressure pump designed to generate pressure from 85% vacuum to 10,000 psi (700bar). With the patented screw press technology, high pressures can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the 927 avoids the troublesome leakage issues that are usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 927 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators, or transducers in the field or laboratory.
Portable: Only 7 lb
Durable and Minimal Maintenance
Patented screw press technology, without non-returning valve inside that, is usually used on
troublesome hand pumps.
Easy-to-use
The high pressure can be generated easily, as well
as increased and decreased smoothly.
Extremely Low Leakage
Patented screw press technology, replaces
troublesome check valves (non-returning valve) used
in most hand pumps which practically eliminates
leakage.
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches.
|
Specifications |
|
|
Media |
Oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically) |
|
Generated Pressure Range |
85% vacuum to 10,000psi (700bar) positive pressure. |
|
Adjustment Resolution |
0.001 psi (10 Pa, 0.1 mbar). |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: Buna-N |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 5.31" (135 mm) |
|
Base: 11.42" (290 mm) x 7.80" (198 mm). |
|
|
Weight |
7 lb (3.2 kg). |
|
Warranty |
1 year |
|
Accessories Included |
|
Mineral oil,1 bottle (250 ml)* |
|
O-ring: 20 pcs |
|
Manual: 1 pc |
|
Carrying Case (927-X-SET models only) |
|
Optional Accessories |
|
|

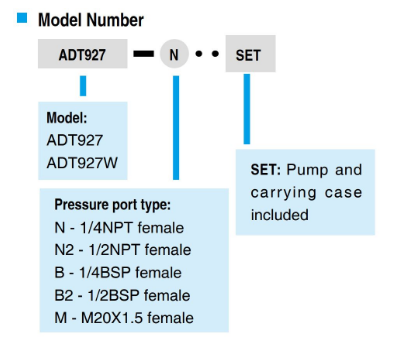

Model Number |
Description |
|
9202 |
Mineral Oil, 1 liter (1 quart) |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
ADT100-HTK-15K |
Hose test kit, 5 feet flexible hose, 15,000 psi, 1/4NPT male to 1/4NPT (1/8NPT, 1/2NPT, 1/4BSP,1/2BSP, or M20X1.5) female hand-tight quick connector. |
|
9904-927 |
Carrying Case for one ADT927 pump and two ADT681 gauges or ADT672 calibrators |
|
ADT927-MK |
Maintenance kit for Additel 927 pump |
|
