Additel 946A
• Pressurize large-volume workload
• Generate pressure to 15,000 psi (1,000 bar)
• Increase and decrease pressure smoothly
• Three pressure ports
• Hand-tight quick connectors

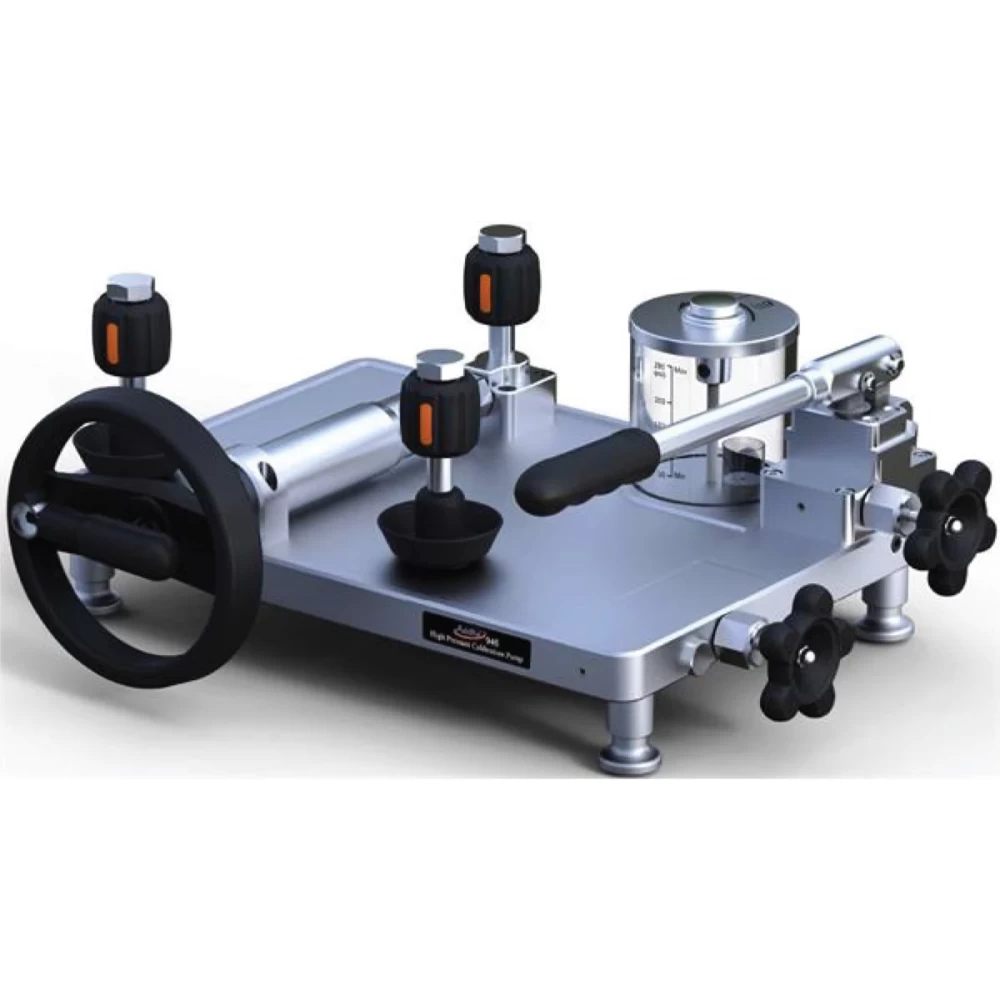

The new Additel 946A Hydraulic High-Pressure Test Pump is a benchtop pressure pump designed to generate pressure to 15,000 psi (1,000 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the high pressure, fine adjust screw press. The 946A test pump incorporates an isolation valve that isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The Additel 946A is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers.
Hand pump to fill large volume systems
Durable and Minimal Maintenance
Isolation valve provides stable pressures while
reducing maintenance on the hand pump check valve.
Easy-to-use
15,000 psi (1,000 bar) can be generated easily with
the dual-piston system.
Three hand-tight quick connectors
Allows easy connection and disconnection to the test
pump without the need for PTFE tape or wrenches.
|
Specifications |
|
|
Media |
Mineral oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically) |
|
Reservoir Capacity |
420ml (25.6 in^3) |
|
Generated Pressure Range |
0 psi to 15,000psi (1,000bar). |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: Buna-N |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 7.8" (200 mm) |
|
Base: 18.1" (460 mm) x 14.3" (365 mm) |
|
|
Weight |
28.7 lb (13 kg). |
|
Warranty |
1 year |
|
Piston Volume |
Fine adjust piston: 1.5 ml |
|
Accessories Included |
|
Mineral Oil, 1 bottle (250 ml)* |
|
O-ring: 20 pcs |
|
Manual: 1 pc |
|
Carrying case (946-X-SET models only) |
|
* When water media is not requested |
|
Optional Accessories |
|
|
Model Number |
Specifications |
|
9201 |
Oil, Diethylhexyl Sebacate, 1 liter (1 quart) |
|
9202 |
Oil, Mineral oil, 1 liter (1 quart) |
|
ADT102 |
Adapters and fittings, 1/4HP male to various male and female connectors (25 pcs). More information shown on page 70. |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/4BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). More information shown on page 71. |
|
ADT-HTK |
Hose test kit, 5 feet flexible hose, 15,000 psi, 1/4NPT male to 1/4NPT (1/8NPT, 1/2NPT, 1/4BSP, or M20X1.5) female hand-tight quick connector. |
|
ADT946A-MK |
Maintenance kit for Additel 946A pump |
|
ADT100-946-HK |
Hose Kit, External Reservoir Expansion Hose Kit for ADT946A |
|
9910 |
Carrying case for Additel 946A, Additel 959A or Additel 960 |
