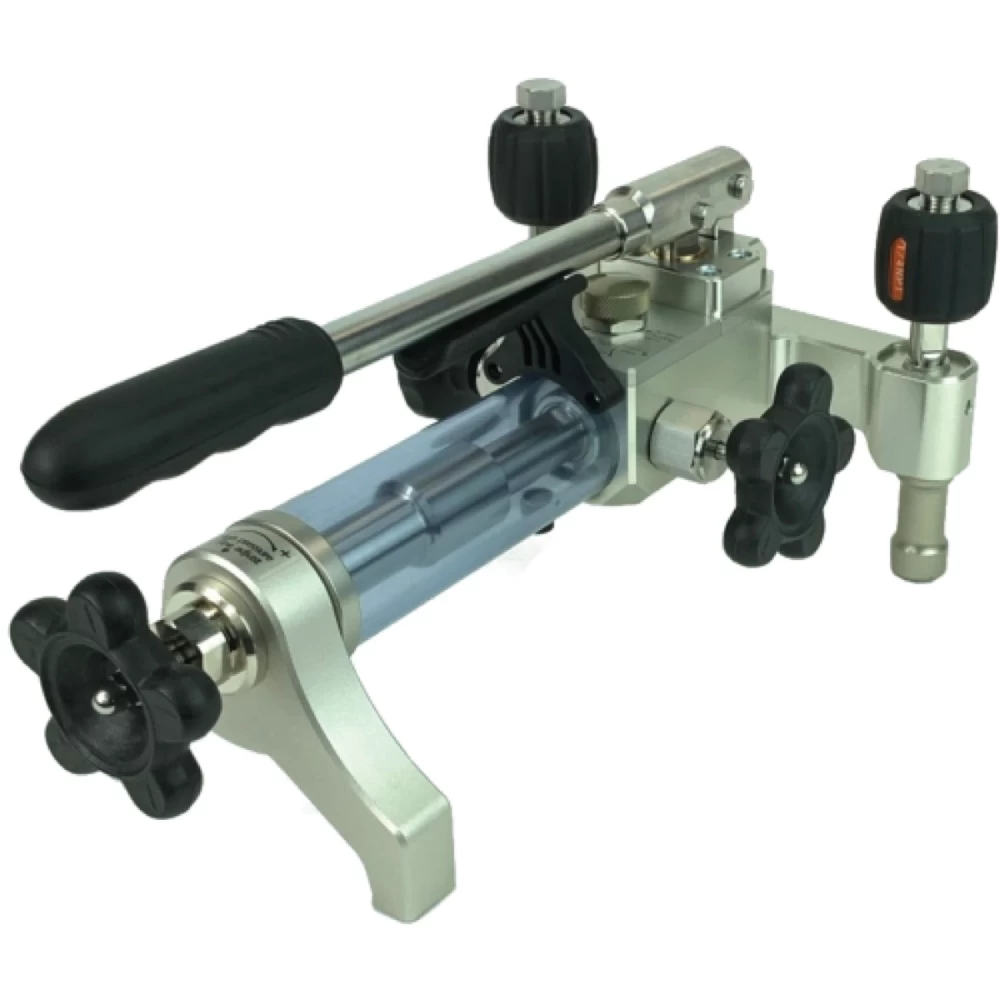

Additel 928
• Pressurize large-volume workload
• Generate to 15,000 psi (1,000 bar) pressure
• Portable only 8.6 Ibs (3.9kg)
• Increase and decrease pressure smoothly
• Hand-tight quick connectors
The Additel 928 Hydraulic Pressure Test Pump is a hand-operated pressure pump designed to generate pressure to 15,000 psi (1,000bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the fine adjustment. The Additel 928 Test hand pump incorporates an isolation valve that isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The Additel 928 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators, or transducers in the field or laboratory.
Hand pump to fill large volume systems
Portable: 8.6 lbs (3.9 kg)
Durable and minimal maintenance
The isolation valve provides stable pressures while
reducing maintenance on the hand pump
check valve
Easy to use
15,000 psi (1,000 bar) can be generated easily
with the dual-piston system
Hand-tight quick connectors
Allows easy connection and disconnection to
the test pump without the need for PTFE tape
or wrenches
|
Specifications |
|
|
Media |
Oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically) |
|
Generated Pressure Range |
0 to 15,000 psi (1,000 bar) gauge pressure. |
|
Material |
Ram/adapters: 304 SS |
|
Body: 304 SS / aluminum |
|
|
Seals: Buna-N / PTFE / Copper Alloy |
|
|
Reservoir: UPVC |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|
Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 6.38" (162 mm) |
|
Base: 13.58" (345 mm) x 8.46" (215 mm). |
|
|
Weight |
8.6 lb (3.9 kg). |
|
Warranty |
1 year |
|
Piston Volume |
Fine Adjust: 0.9 ml (0.05 cubic inches) |
|
Volume per Stroke |
3.72 ml |
|
Reservoir Volume |
150 ml (9.15 cubic inches) |
|
Accessories Included |
|
Mineral oil,1 bottle (250 ml)* |
|
O-ring: 20 pcs |
|
Manual: 1 pc |
|
Carrying Case (928-X-SET models only) |
|
* When water media is not requested |
|
Optional Accessories |
|
|

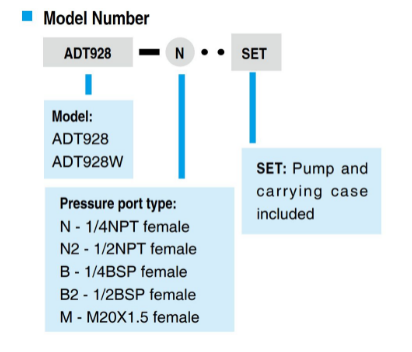

Model Number |
Description |
|
9201 |
Oil, Diethylhexyl Sebacate, 1 liter (1 quart) |
|
9202 |
Mineral Oil, 1 liter (1 quart) |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
ADT100-HTK-15K |
Hose test kit, 5 feet flexible hose, 15,000 psi, 1/4NPT male to 1/4NPT (1/8NPT, 1/2NPT, 1/4BSP,1/2BSP, or M20X1.5) female hand-tight quick connector. |
|
9904-928 |
Carrying Case for one ADT928 pump and two pressure test gauges |
|
ADT927-MK |
Maintenance kit for Additel 928 pump |
|
ADT100-928-HK |
Hose Kit, External Reservoir Expansion Hose Kit for ADT928’ |
