Additel 936
• Minimal maintenance
• Increase and decrease pressure smoothly
• Three pressure ports
• Hand-tight quick connectors

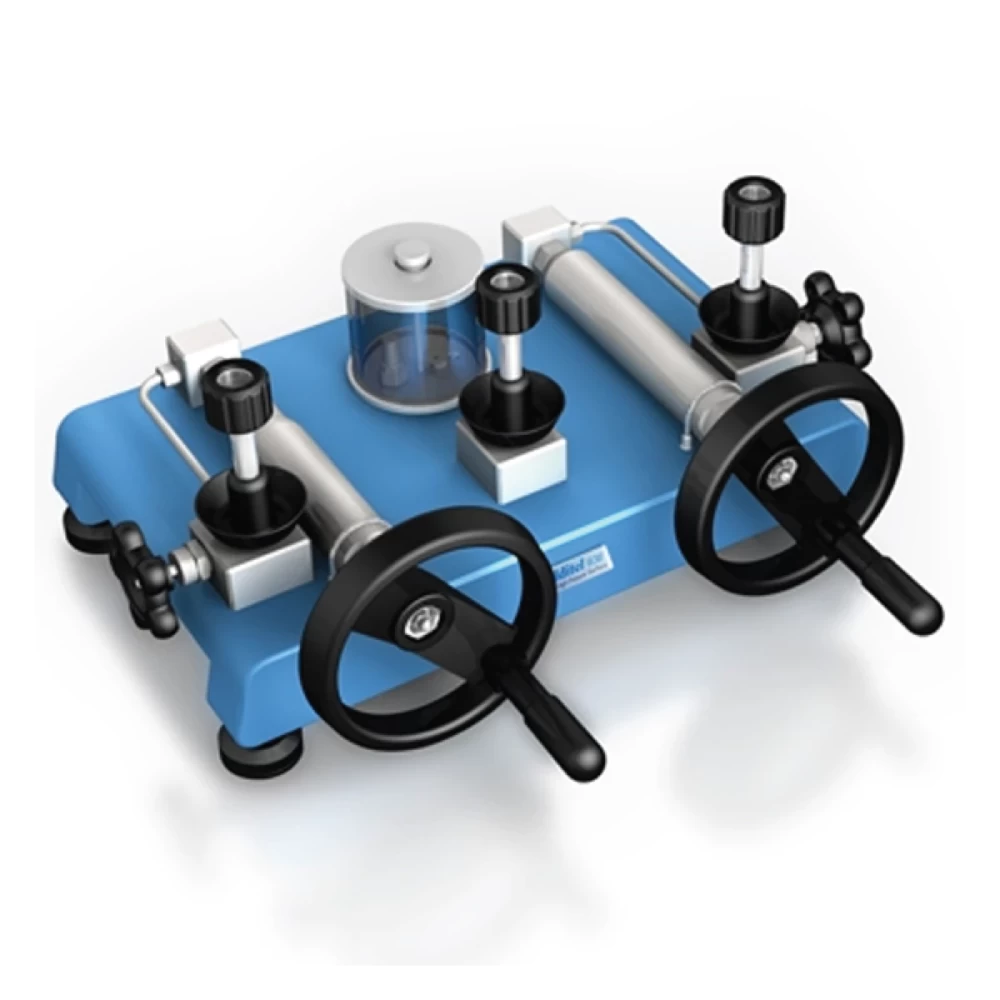

The 936 Hydraulic High-Pressure Test Pump is a hand-operated pressure pump designed to generate pressure from 85% vacuum to 15,000 psi (1,000bar). With the patented screw press technology, high pressures can be easily generated, as well as increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check valve (non-returning valve), the 936 avoids the troublesome leakage issues that are usually experienced with hand pumps and allow for minimal maintenance. Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 936 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators, or transducers in the laboratory.
High Pressure
Generates pressure up to 15,000 psi (1000 bar)
Durable and Minimal Maintenance
Patented screw press technology, without non-returning valve inside that, is usually used on
troublesome hand pumps.
Easy-to-use
High pressures can be generated easily, as well
as increased and decreased smoothly.
Extremely Low Leakage
Patented screw press technology replaces
troublesome check valves (non-returning valve)
in most hand pumps which practically eliminates
leakage.
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to
the test pump without the need for PTFE tape or
wrenches.
|
Specifications |
|
|
Media |
Oil |
|
Generated Pressure Range |
85% vacuum to 15,000psi (1,000bar) positive. |
|
Material |
Ram/adapters: SS |
|
Body: SS/aluminum |
|
|
Seals: Buna-N |
|
|
Connection |
Hand-tight connectors for both test gauge and reference gauge. |
|

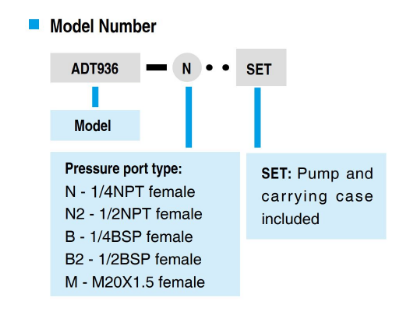

Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female |
|
|
Dimensions |
Height: 9.1" (230 mm) |
|
Base: 20.5" (520 mm) x 14.2" (360mm). |
|
|
Weight |
35.2 lb (16 kg). |
|
Warranty |
1 year |
|
Accessories Included |
|
Mineral oil,1 bottle (250 ml)* |
|
O-ring: 20 pcs |
|
Carrying Case (936-X-SET models only) |
|
Optional Accessories |
|
|
Model Number |
Description |
|
9202 |
Mineral Oil, 1 liter (1 quart) |
|
ADT102 |
Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
|
ADT103 |
Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
|
9908 |
Carrying Case for 936, 937, 938, or 949 |
|
ADT936-MK |
Maintenance kit for Additel 936 pump |
|
Documents and Links |
|
Videos |
|
Additel 936 Video Demo |
|
Additel 936, 938, and 949 Setup Video |
