OVERVIEW

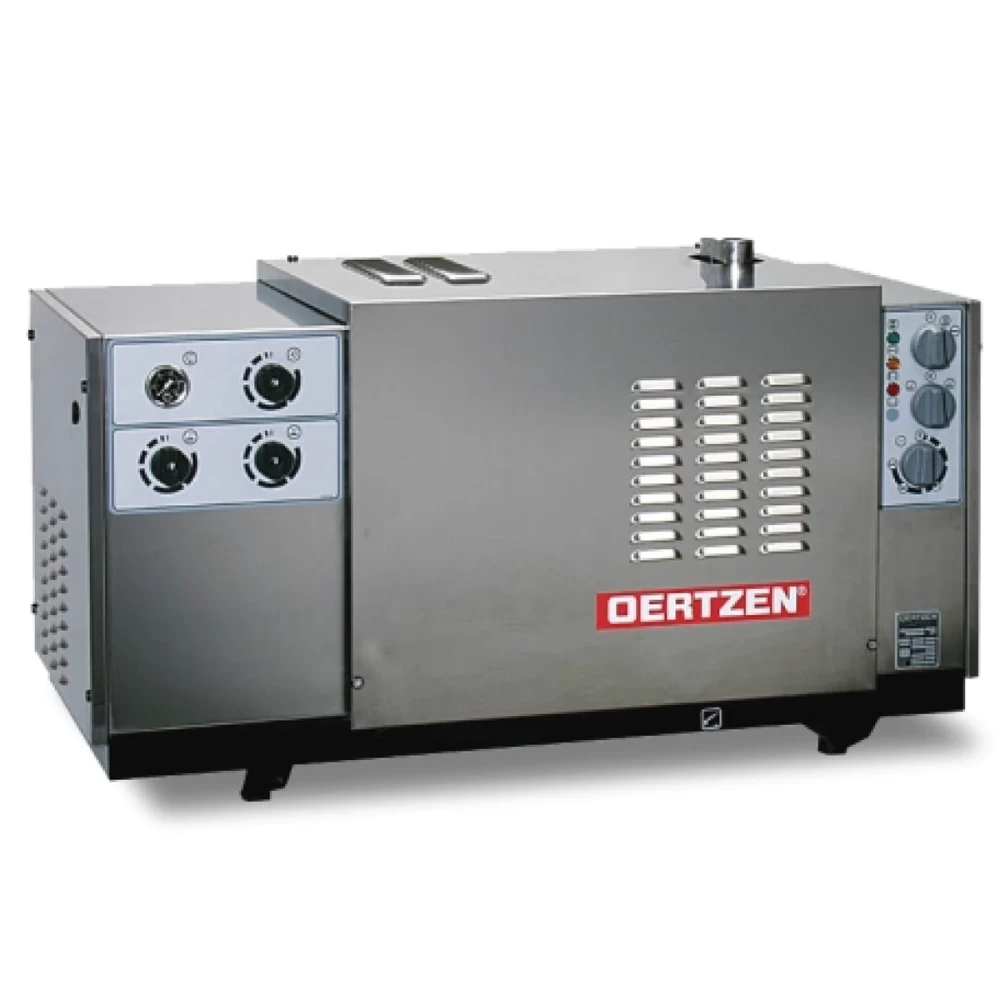

OERTZEN S 1320 H
Hot water high pressure cleaner, stationary unit
fuel oil heated, 140ºC / 284°F
flame control by photo cell
3 cyl. inline plunger pump 22 l/min / 5.8 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
automat. stop system (motor off) after closing spray pistol (20 sec.) -
immediate restart with opening spray pistol
water storage tank, float lever operated
pump stop with water shortage
autom. descaling system
motor/pump unit protected by solid, surrounding steel frame and INOX panels

Application range: container cleaning, drain cleaning, floor cleaning, high pressure cleaning, hot water cleaning, industrial cleaning, wall cleaning

Standard equipment: single lance 600 mm / 23 in (710.700.030) with HIP flat stream nozzle 07 (710.712.507), high pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm / 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET HP safety hose NW 8, 10 m / 33 ft (710.702.064), 6.5 m / 21 ft electric power cable with CEE plug

Option: rack or wall mounting in stainless steel
