HOT WATER HIGH PRESSURE

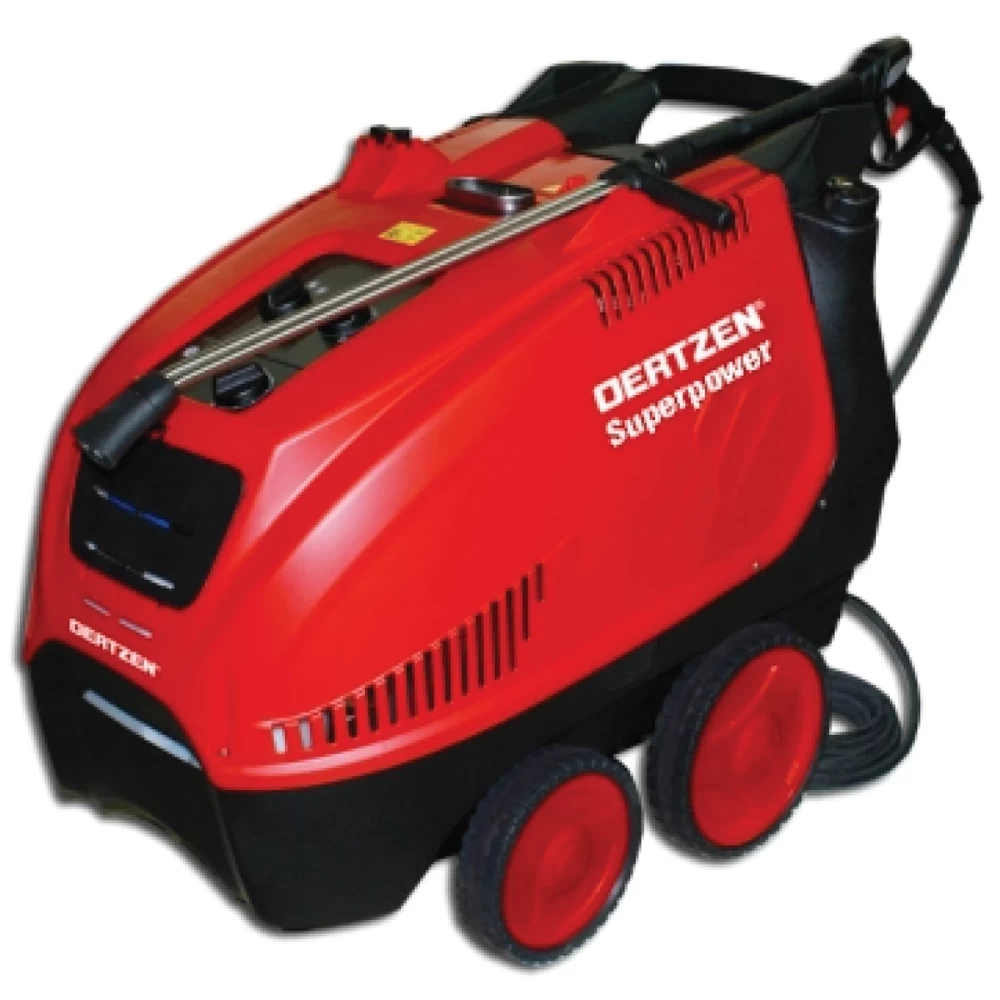

OERTZEN - Superpower - hot water

Flow rate max

900 l/h / 238 gal/h

Unloading pressure

190 bar / 2755 psi

Working pressure max

170 bar / 2465 psi

Water temperature max

140°C/248°F

Standard voltage

400 V/3P/50 Hz

Pump speed (rpm)

1400 1/min

Power source

Electric motor

Connecting power

5.2 kw

Safety control stop SCS

Start/Stop (time delay)

Dimensions (frame:  L×W×H)

1110×700×900 mm

Weight

120 kg / 265 lb

OVERVIEW

OERTZEN Superpower
Hot water high pressure cleaner
fuel oil heated, 140°C / 284°F
stainless steel boiler with heating coil, vertical burner system
3 cyl. inline plunger pump 15 l/min / 4 gal/min
(ceramic plunger) - flanged to electric motor
motor/pump rpm 1400 1/min, slowly running machine
start/stop device (time delayed)
water storage tank, float lever operated
fuel oil tank 25 l / 6.6 gal
detergent tank 22 l / 5.8 gal
anti scaling system
hot and cold water operation
hp cleaner with 4 wheels on twin axle with locking brake, PE hood

Application range: automobile cleaning, commercial cleaning, container cleaning, floor cleaning, gastronomy cleaning, high pressure cleaning, hot water cleaning, wall cleaning

Standard equipment: 10 m / 33 ft high pressure hose, spray pistol with hose swivel, insulating handle, double spray lance with pressure regulation, 5.5 m / 18 ft electric cable with safety plug

Technical characteristics

Technical characteristics

Flow rate max.

900 l/h / 238 gal/h

Unloading pressure

190 bar / 2755 psi

Working pressure max.

170 bar / 2465 psi

Water temperature max.

140°C / 284°F

Standard voltage

400 V/3~50 Hz

Special voltage

-

Pump speed

1400 1/min

Power source

electric motor

Connecting power

5.2 kW

Engine / motor output

-

Thermo valve

-

Safety Control Stop SCS

Start/Stop (time delay)

Dimensions ( frame: LxWxH)

1110 x 700 x 900 mm / 43.3 x 27,3 x 35 in

Weight

120 kg / 265 lb

Please notice

technical data are subject to alterations
