OVERVIEW

OERTZEN S 312 E-VA
Hot water high pressure cleaner, stationary,
18 kW flow heater, 54°C / 129°F
3 cyl. inline plunger pump 10 l/min / 2.6 gal/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min - slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
motor/pump unit protected by solid platform and hood of stainless steel

Application range: automobile cleaning, commercial cleaning, container cleaning, drain cleaning, floor cleaning, high pressure cleaning, hot water cleaning, industrial cleaning

Standard equipment: double lance 490 mm / 19 in (710.700.021) with HIP flat stream nozzle 3538 (710.743.538), flat stream nozzles with15/25/40/65° spray angle optional, high pressure security pistol 310 bar / 4495 psi 1/4" with insulated handle 560 mm / 22 in (710.700.003) and swivel joint (710.708.057), JET high pressure safety hose NW 8, 10 m / 33 ft (710.702.067)

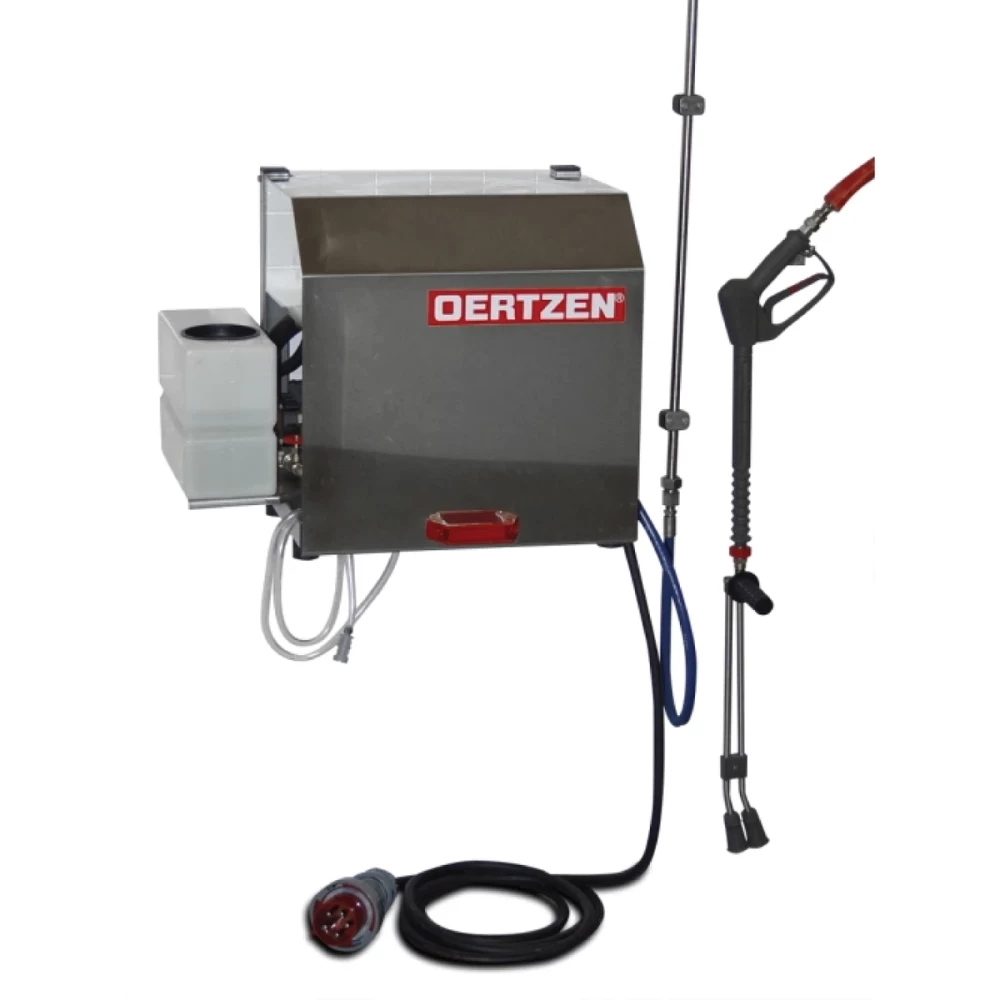

pic. shows option: water tank for backflow protection (check-valve)

Version: S 312 E-VA, 24 kW Order No. 710.000.563
unit equipped with 24 kW flow heater (63 A), water temperature 65°C / 149°F (level II) / 46°C / 115°F (level I), CEE plug 63 A

Version: E 312-18 kW Mobil, Order No. 710.000.568
Hot water high pressure cleaner (flow heater 18 kW), mobile
technical data like S 312 E-VA, but with sturdy machine frame on 4 wheels

pic. shows option: 1. INOX frame, 2. non marking wheels
