OERTZEN - Super Magnum 220 ELC - hot water
|
Flow rate max |
960 l/h / 2117 gal/h |
|
Unloading pressure |
230 bar / 3335 psi |
|
Working pressure max |
210 bar / 3045 psi |
|
Water temperature max |
140°C/248°F |
|
Standard voltage |
400V/3P/50 Hz |
|
Pump speed (rpm) |
1420 1/min |
|
Power source |
Electric motor |
|
Connecting power |
6.9 kw |
|
Safety control stop SCS |
Start/Stop (time delay) |
|
Dimensions (frame: L×W×H) |
1020×860×650 mm |
|
Weight |
145 kg / 320 lb |

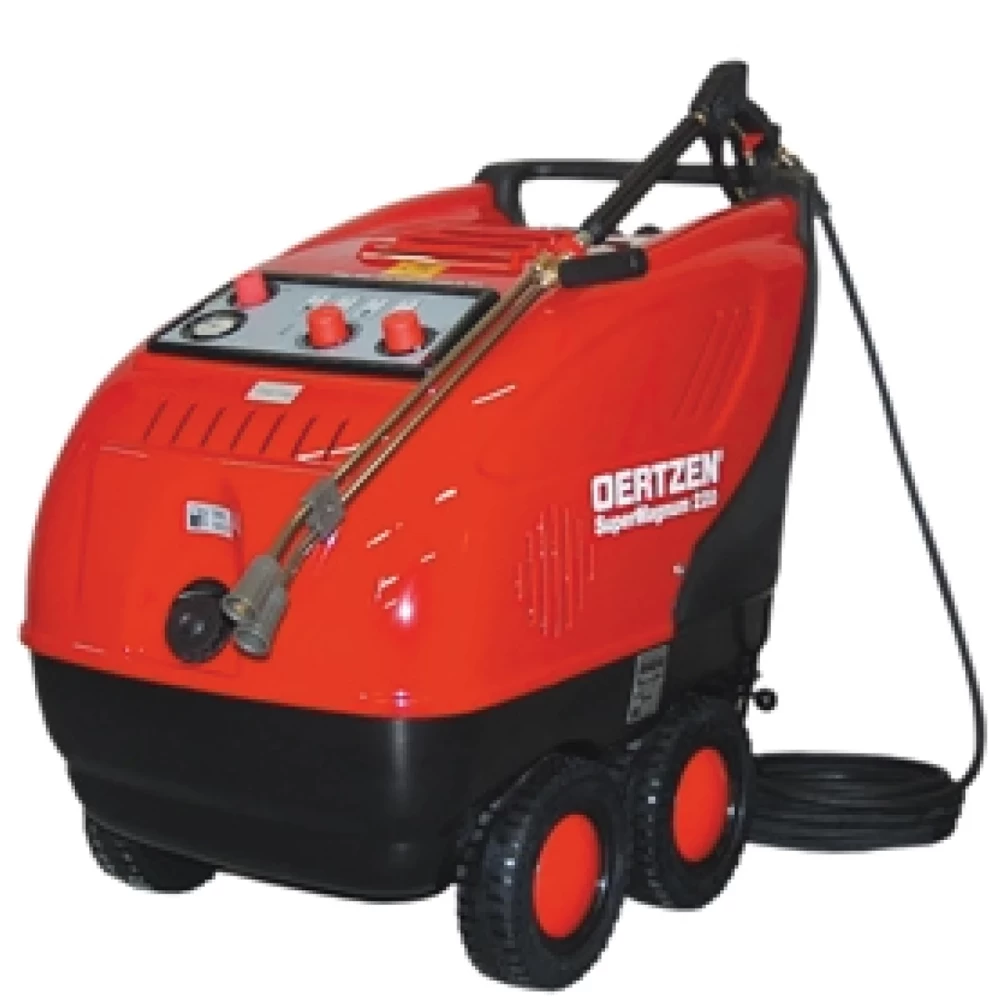

OERTZEN SuperMagnum 220
Hot water high pressure cleaner
fuel oil heated, 140°C / 284°F
stainless steel boiler with heating coil, vertical burner system
3 cyl. inline plunger pump 16 l/min / 4.2 gal/min
(ceramic plunger) - flanged to electric motor
motor/pump rpm 1420 1/min, slowly running machine
start/stop device (time delayed)
fuel oil tank 20 l / 5.3 gal
detergent tank 15 l / 4 gal
anti scaling system
hot and cold water operation
control lamps for operation mode, burner, fuel oil shortage
hp cleaner with 4 wheels on twin axle with locking brake, PE hood
Application range: automobile cleaning, container cleaning, facade cleaning, floor cleaning, grafitty removal, high pressure cleaning, hot water cleaning, industrial cleaning, wall cleaning
Standard equipment: double lance with pressure regulation (712.100.301) and flat stream nozzle (710.742.338), hp spray pistol 1/4" with insulated bar and swivel joint (712.100.297), hp safety hose NW 8, 10 m / 33 ft (712.100.296)
|
Technical characteristics |
|
|
Flow rate max. |
960 l/h / 253 gal/h |
|
Unloading pressure |
230 bar / 3335 psi |
|
Working pressure max. |
210 bar / 3045 psi |
|
Water temperature max. |
140°C / 284°F |
|
Standard voltage |
400V/3~50 Hz |
|
Special voltage |
on request |
|
Pump speed |
1420 1/min |
|
Power source |
electric motor |
|
Connecting power |
6.9 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
Start/Stop (time delay) |
|
Dimensions ( frame: LxWxH) |
1020 x 860 x 650 mm / 39.8 x 33.5 x 25.4 in |
|
Weight |
145 kg / 320 lb |
|
Please notice |
technical data are subject to alterations |
