OERTZEN - High power - hot water
|
Flow rate max |
1300 l/h / 343 gal/h |
|
Unloading pressure |
200 bar / 2900 psi |
|
Working pressure max |
185 bar / 2683 psi |
|
Water temperature max |
140°C/248°F |
|
Standard voltage |
400 V/3P/50 Hz |
|
Pump speed (rpm) |
1400 1/min |
|
Power source |
Electric motor |
|
Connecting power |
8.5 kw |
|
Safety control stop SCS |
Start/Stop (time delay) |
|
Dimensions (frame: L×W×H) |
1110×750×860 mm |
|
Weight |
181 kg / 399 lb |

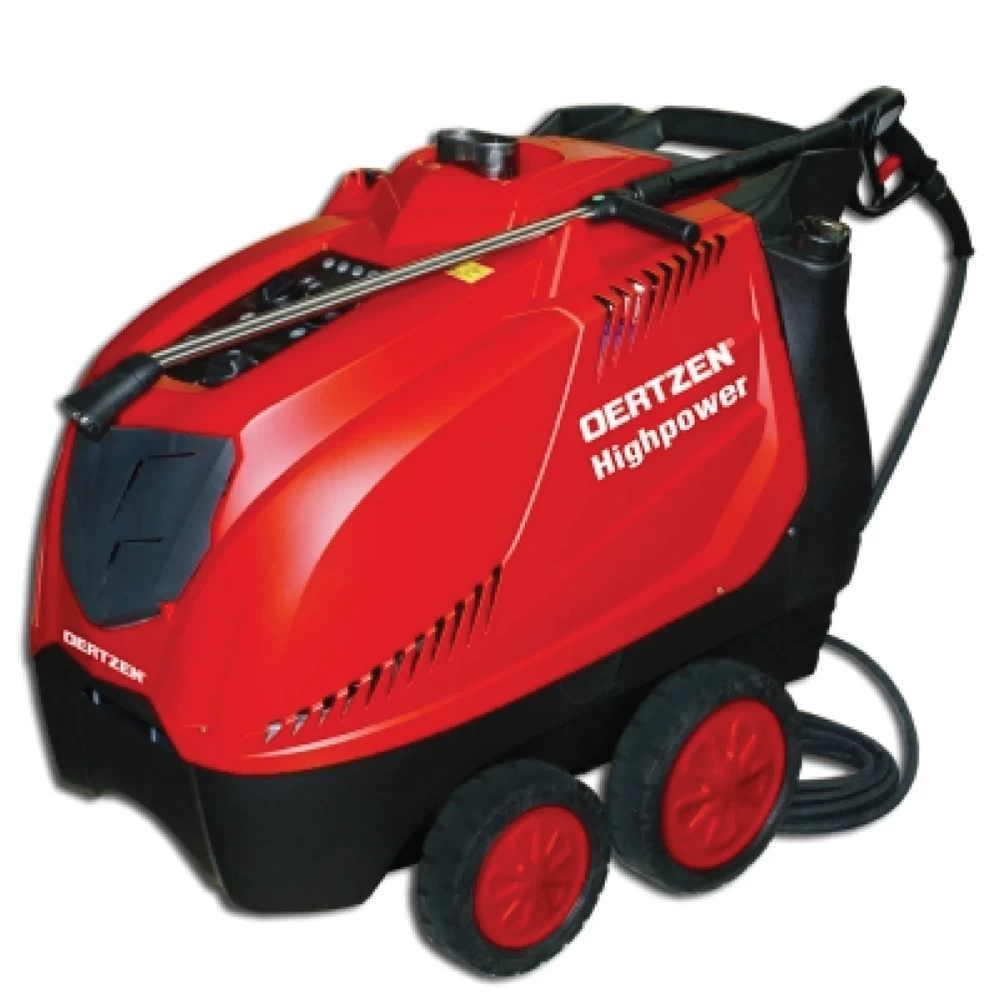

OERTZEN Highpower
Hot water high pressure cleaner
fuel oil heated, 140°C / 284°F
stainless steel boiler with heating coil, vertical burner system
3 cyl. inline plunger pump 22 l/min / 5.8 gal/min
(ceramic plunger) - flanged to electric motor
motor/pump rpm 1400 1/min, slowly running machine
start/stop device (time delayed)
water storage tank, float lever operated
fuel oil tank 25 l / 6.6 gal
detergent tank 22 l / 5.8 gal
anti scaling system
hot and cold water operation
control lamps for operation mode, burner, fuel oil shortage
hp cleaner with 4 wheels, PE hood
Application range: automobile cleaning, container cleaning, facade cleaning, floor cleaning,grafitty removal, high pressure cleaning, hot water cleaning, industrial cleaning, wall cleaning
Standard equipment: 10 m / 33 ft high pressure hose, spray pistol with hose swivel, insulating handle, double spray lance with pressure regulation, HIP nozzle, 5.5 m / 18 ft electric cable with CEE plug
|
Technical characteristics |
|
|
Flow rate max. |
1300 l/h / 343 gal/h |
|
Unloading pressure |
200 bar / 2900 psi |
|
Working pressure max. |
185 bar / 2683 psi |
|
Water temperature max. |
140°C / 284°F |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
on request |
|
Pump speed |
1400 1/min |
|
Power source |
electric motor |
|
Connecting power |
8.5 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
Start/Stop (time delay) |
|
Dimensions ( frame: LxWxH) |
1110 x 750 860 mm |
|
Weight |
181 kg / 399 lb |
|
Please notice |
technical data are subject to alterations |
