OERTZEN - Trendpower - hot water
|
Flow rate max |
800 l/h / 211 gal/h |
|
Unloading pressure |
187 bar / psi |
|
Working pressure max |
170 bar / psi |
|
Water temperature max |
140°C/248°F |
|
Standard voltage |
400 V/3P/50 Hz |
|
Pump speed (rpm) |
2800 1/min |
|
Power source |
Electric motor |
|
Connecting power |
4.3 kw |
|
Safety control stop SCS |
Start/Stop (time delay) |
|
Dimensions (frame: L×W×H) |
820×690×870 mm |
|
Weight |
95 kg / 209 lb |

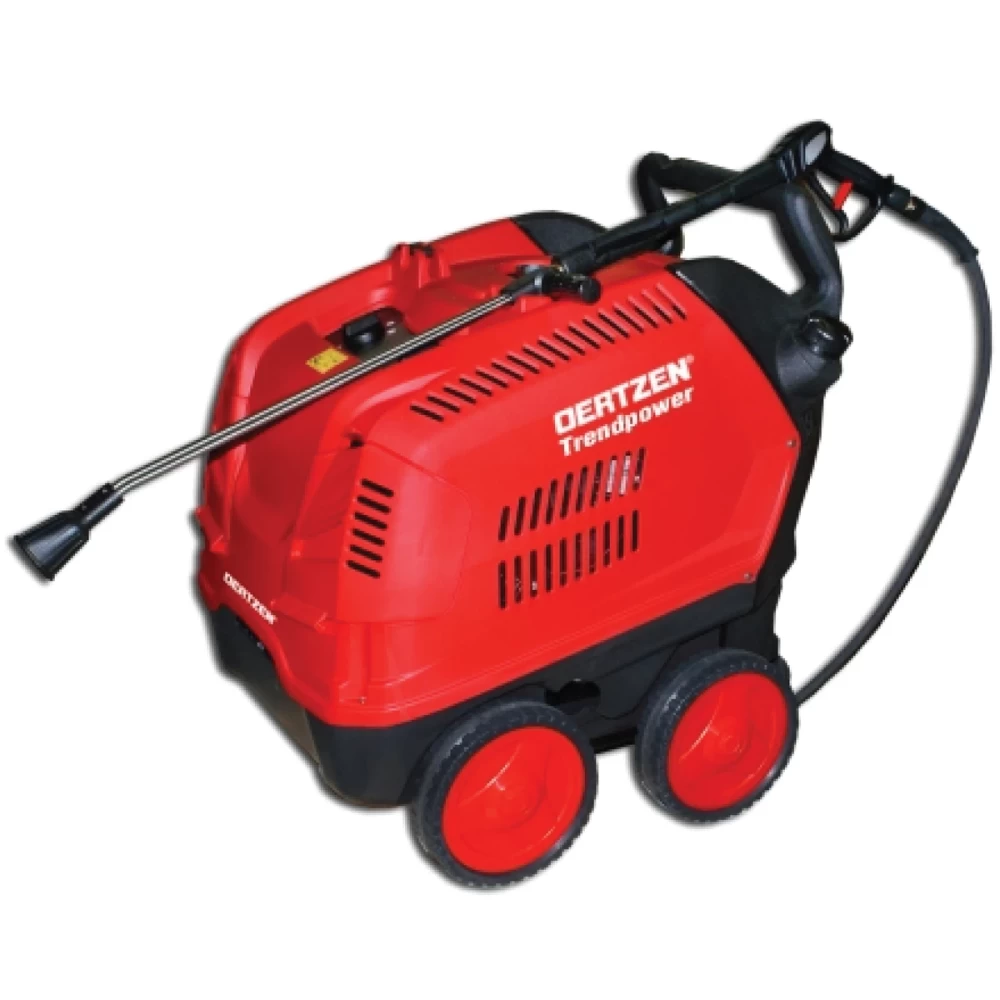

OERTZEN Trendpower
Hot water high pressure cleaner
fuel oil heated, 140°C / 284°F
stainless steel boiler with heating coil, vertical burner system
3 cyl. inline plunger pump 13.3 l/min / 3.5 gal/min
flanged to electric motor
motor/pump rpm 2800 1/min
hot and cold water operation
pump system pressureless by closing spray pistol (stand by operation)
fuel oil tank 18 l / 4.8 gal
hp cleaner with 4 wheels and PE hood
Application range: automobile cleaning, commercial cleaning, container cleaning, floor cleaning, gastronomy cleaning, high pressure cleaning, hot water cleaning, wall cleaning
Standard equipment: 10 m / 33 ft high pressure hose, detergent injector, spray pistol with hose swivel, insulating handle, double spray lance with pressure regulation, 5.5 m / 18 ft electric cable with safety plug
|
Technical characteristics |
|
|
Flow rate max. |
800 l/h / 211 gal/h |
|
Unloading pressure |
187 bar / 2712 psi |
|
Working pressure max. |
170 bar / 2465 psi |
|
Water temperature max. |
140°C / 284°F |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
- |
|
Pump speed |
2800 1/min |
|
Power source |
electric motor |
|
Connecting power |
4.3 kW |
|
Engine / motor output |
- |
|
Thermo valve |
- |
|
Safety Control Stop SCS |
Start/Stop (time delay) |
|
Dimensions ( frame: LxWxH) |
820 x 690 x 870 mm / 32 x 27 x 34 in |
|
Weight |
95 kg / 210 lb |
|
Please notice |
technical data are subject to alterations |
