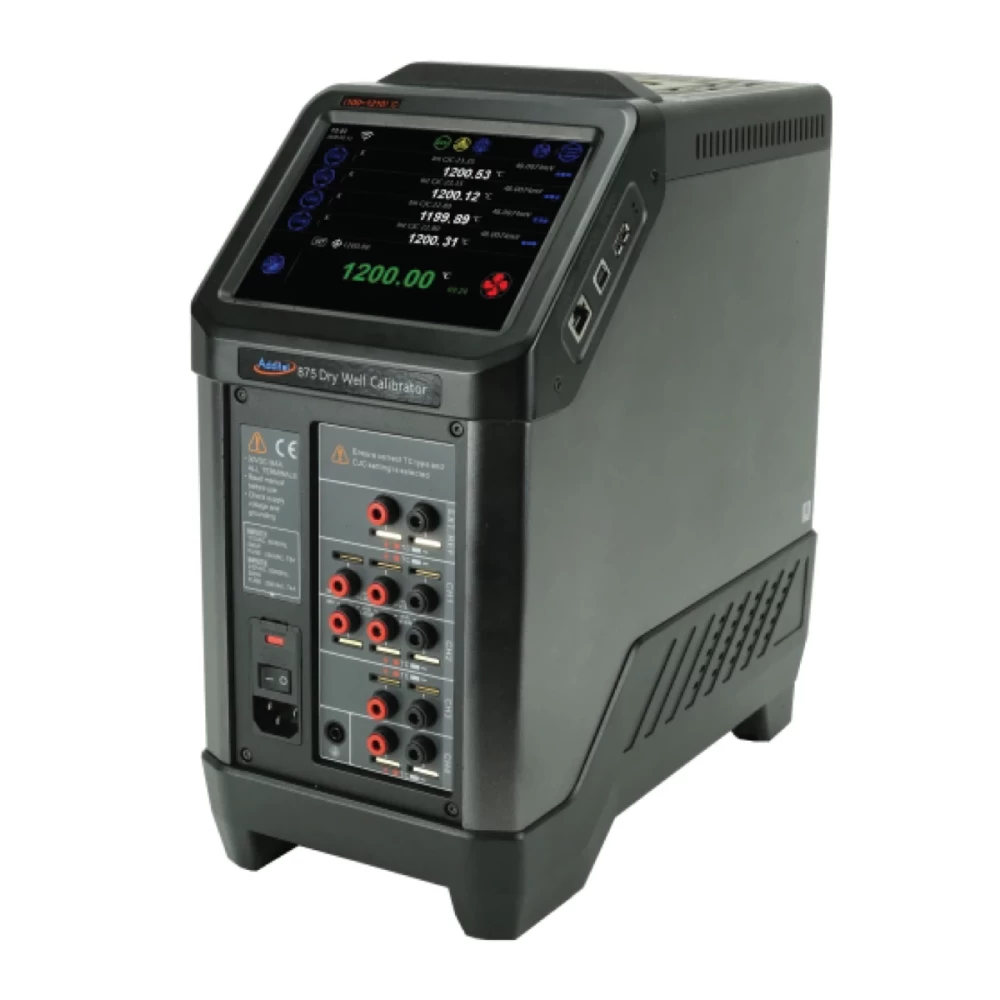

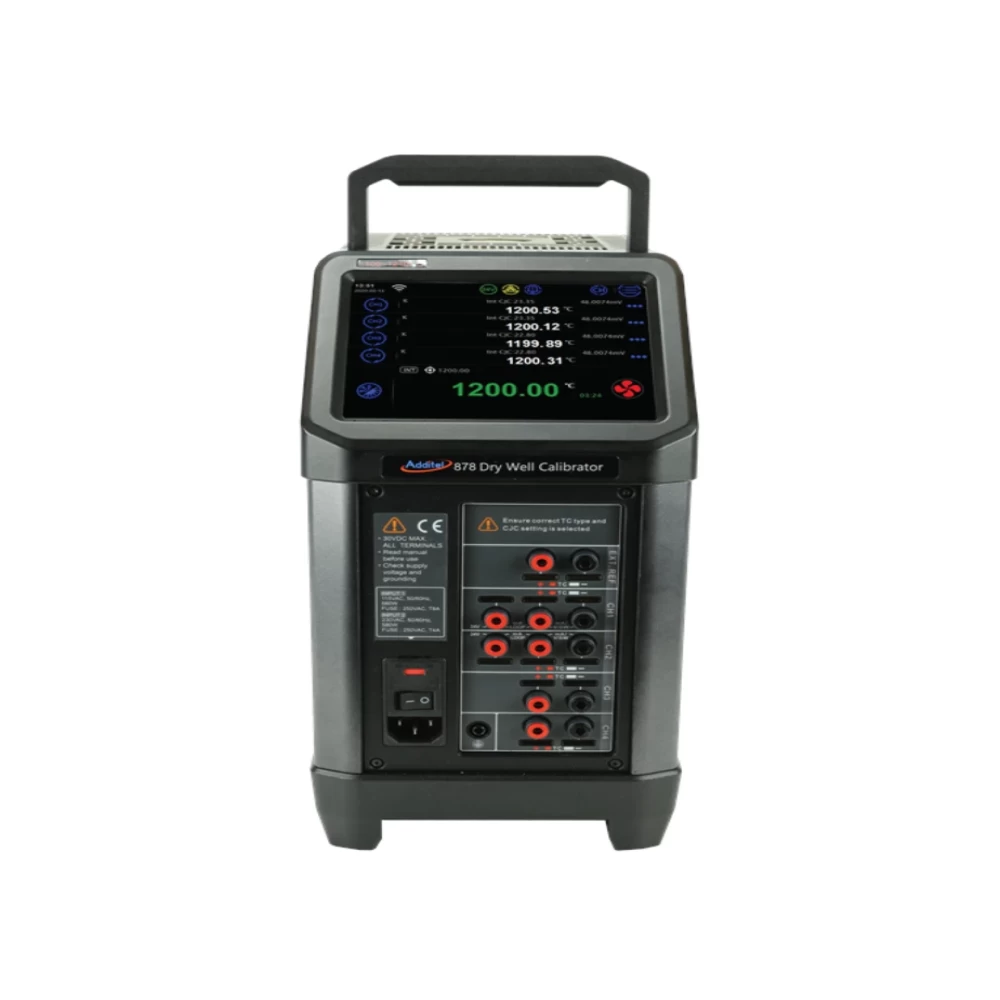

Additel 878-1210
• Temperature control from 100°C to 1210°C
• Two models to choose from: Reference (ADT878) and Standard (ADT875)
• Display Accuracy of ±1.5°C (ADT878)
• 4 on-board measurement channels (PC option)
• Process calibrator option provides a multi-channel readout for TCs, switches and transmitters, including task documentation and HART communication
• Portable, rugged and quick to temperature
• Self-calibration feature (PC option)
• Multi-zone temperature control
• Internal and external sensor control (PC option)

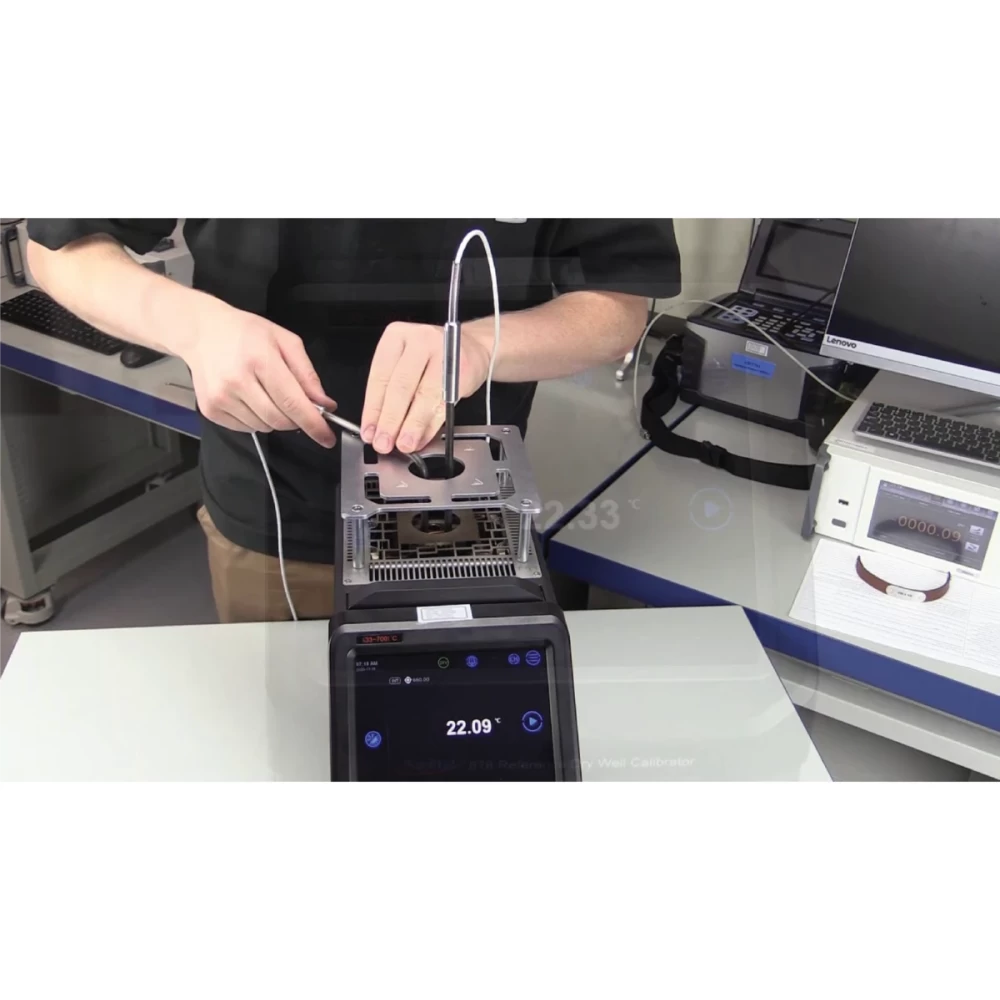

• Metallic interchangeable inserts

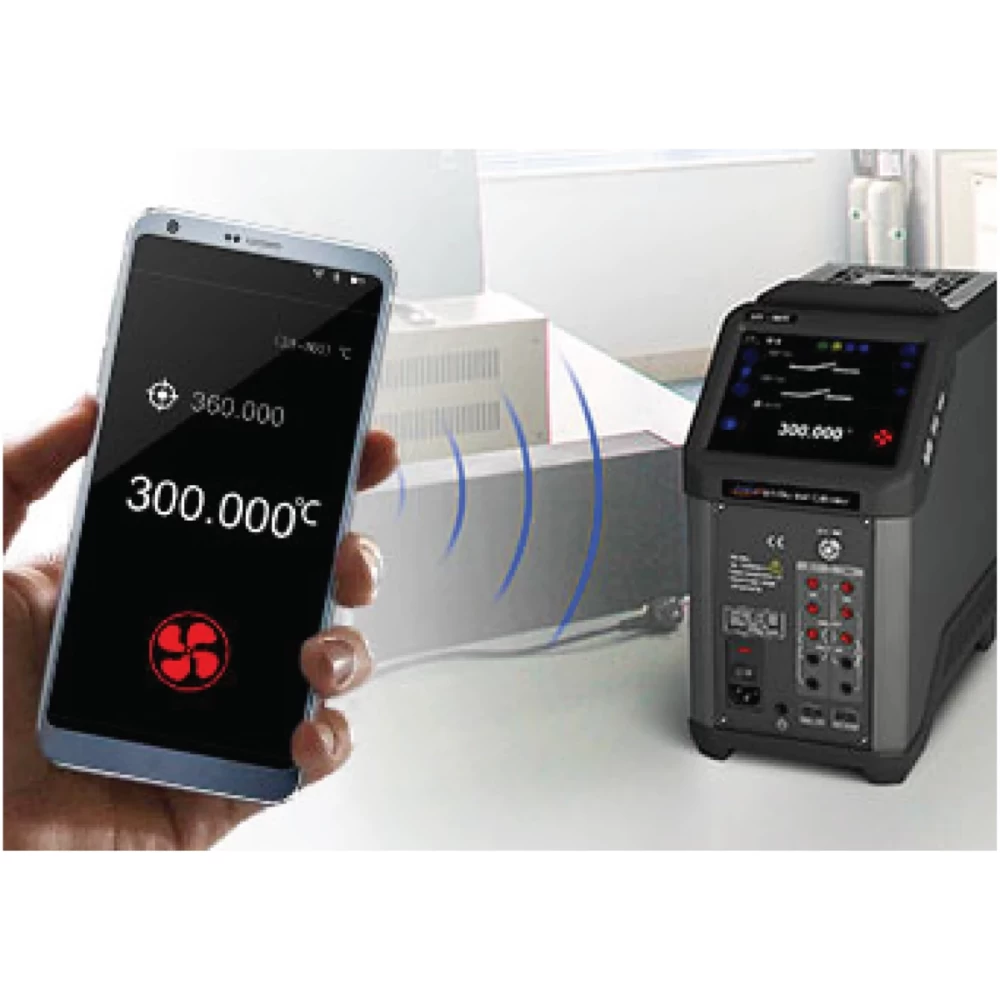

• Wi-Fi and Bluetooth capable
• Color touch screen display
• ISO 17025-accredited calibration w/data included
• Patent pending technology
We understand the many challenges associated with thermocouple calibration work. That is precisely why we decided to introduce the ADT875-1210 and ADT878-1210 Thermocouple Calibration Furnaces.
With an unmatched stability, uniformity and an optional on-board process calibrator, calibrating thermocouples has never been easier. With two separate units to choose from, the ADT875-1210 and ADT878-1210 furnaces include a patented multi-zone temperature control which provides a never before seen, highly stable and uniform heat source to ensure you get the best possible results from a modest investment. With metallic interchangeable inserts, users have the flexibility needed to service a wide variety of UUT’s and the durability they have come to expect from Additel. The ADT875-1210 and ADT878-1210 can be purchased with or without our on-board process calibration electronics to provide flexibility for customers who are needing the best 1200°C heat source on the market.
If thermocouple calibration and/or verification work is part of your workload, you don’t want to miss out on this opportunity to save valuable time and money with these best in class furnaces from Additel.
Temperature Control
The Additel ADT875 and ADT878 Thermocouple Calibration Furnaces have been designed with a unique and innovative way of controlling temperature and temperature gradients. We like to call it “Advanced Adaptive Control”. This exciting new design feature incorporates our patent pending wind tunnel control technology with Additel’s impressive 3-zone temperature control to provide the very best uniformity and stability possible.
Each ADT875 and ADT878 is tested and calibrated in Additel’s accredited laboratory (Brea, CA) to ensure that each unit is ready to go when the customer opens the package. The included accredited calibration certificate provides data relating to accuracy, stability and uniformity to help provide even more confidence in the testing and calibration of each and every ADT875 and ADT878 Thermocouple Calibration Furnace.
Process Electronics
Both the ADT875 and ADT878 can be ordered with Additel's Process Calibrator(PC) option. The Process Calibrator Option combines the many features foundin a thermocouple readout device and process calibrator with the ADT875 andADT878 Calibration Furnaces.This unique option includes Additel’s patented Quick-Push connectors which accommodate virtually all TC connection types. The Process option also includes the ability to measure a reference grade thermocouple and up to (4) under test channels. Channels 1 and 2 can measure mA, voltage, perform switch testing and source 24V DC. In addition to these measurement functions, the process option provides full documenting capability of creating tasks, saving"as found" and "as left" results and HART communications for simplified transmitter work. The snapshot feature allows users to capture all information displayed on the screen with a touch of the screen. This optional add-on allows for data logging of all channels using our auto step and a ramp functions. By utilizing the external reference option users can select to control to the furnace set point using an external control probe, which helps to reduce uncertainties. The external control probe feature also facilitates the handy self-calibration feature!
|

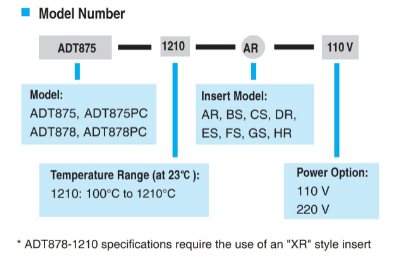

General Specifications |
||
|
Specification |
875-1210 |
878-1210[1] |
|
Temperature Range |
100°C to 1210°C |
|
|
Display Accuracy |
±1.2°C @ 100°C |
±1.0°C @ 100°C |
|
±1.2°C @ 300°C |
±1.0°C @ 300°C |
|
|
±1.2°C @ 600°C |
±1.0°C @ 600°C |
|
|
±1.6°C @ 900°C |
±1.2°C @ 900°C |
|
|
±2.0°C @ 1210°C |
±1.5°C @ 1210°C |
|
|
Stability |
±0.1°C |
|
|
Axial Uniformity (20mm zone) |
±0.6°C @ 100°C |
±0.4°C @ 100°C |
|
±1.2°C @ 300°C |
±0.8°C @ 300°C |
|
|
±1.5°C @ 600°C |
±1°C @ 600°C |
|
|
±1.5°C @ 900°C |
±1°C @ 900°C |
|
|
±1.5°C @ 1210°C |
±1°C @ 1210°C |
|
|
Radial Uniformity |
±0.2°C @ 100°C |
±0.2°C @ 100°C |
|
±0.3°C @ 300°C |
±0.3°C @ 300°C |
|
|
±0.4°C @ 600°C |
±0.4°C @ 600°C |
|
|
±0.8°C @ 900°C |
±0.6C @ 900°C |
|
|
±1°C @ 1210°C |
±0.8°C @ 1210°C |
|
|
Loading Effect |
±0.5°C |
|
|
Environmental Conditions |
8°C to 38°C guaranteed accuracy |
|
|
0°C to 50°C, 0% to 90% RH non-condensing, |
||
|
3000 M altitude for normal operation |
||
|
Storage Conditions |
-20°C to 60°C |
|
|
Immersion Depth |
XR style inserts = 138 mm (5.43") |
|
|
XS style inserts = 116 mm (4.57") |
||
|
(see insert ordering info for more details) |
|
|
|
Insert Size - OD |
24.8 mm (0.98 inches) |
|
|
Heating Time |
50 min: 23°C to 1210°C |
|
|
Cooling Time |
50 mins:1210°C to 300°C 50 mins: 300°C to 50°C |
55 mins:1210°C to 300°C 55 mins: 300°C to 50°C |
|
Typical Time to Stability |
15 min |
|
|
Resolution |
0.01°C |
|
|
Units |
°C, °F, and K |
|
|
Display |
6.5 in (165 mm) color touch screen |
|
|
Size (H x W x D) |
345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in) |
|
|
Weight |
10.6 kg (23.4 lbs) |
|
|
Power Requirements |
115 V AC (±10%) or 230 V AC (±10%), switchable, 45-65 Hz, 580 W |
|
|
Mechanical Testing |
Vibrat ion: 2 g (10-500 Hz) , 30 min for 2 sides |
|
|
Impact: 4 g three times |
||
|
Drop test: 500 mm (19.6 in) |
||
|
Communication |
USB A, USB B, RJ45, WiFi, Bluetooth |
|
|
Localization |
English, Chinese, Japanese, Russian, German |
|
|
Warranty |
1 year |
|
|
[1] 878-1210 specifications require use of an "XR" style insert. Otherwise, default to the 875-1210 specifications. |
||
|
Input Specifications (Process Calibrator [PC] Option) |
||
|
Specification |
875-1210 |
878-1210 |
|
TC Measurement Channels |
Patented TC terminals: Accepting S, R, K, B, N, E, J, T, L, and U |
|
|
TC Measurement Accuracy Type K Ch. 1-4 (excluding sensor) |
±0.182°C @ 100°C |
±0.172°C @ 100°C |
|
±0.266°C @ 300°C |
±0.236°C @ 300°C |
|
|
±0.310°C @ 600°C |
±0.251°C @ 600°C |
|
|
±0.397°C @ 900°C |
±0.304°C @ 900°C |
|
|
±0.517°C @1210°C |
±0.382°C @ 1210°C |
|
|
TC Range |
–75 mV to 75 mV (UUT Channels 1-4) |
|
|
–18 mV to 18 mV (Reference Channel) |
||
|
TC Resolution |
0.0001 mV, Input Impedance < 10Ω |
|
|
TC Voltage Accuracy |
0.02% RD + 8μV (ch. 1-4) |
0.01% RD + 8μV (ch. 1-4) |
|
0.01% RD + 2μV (ref ch.) |
0.005% RD + 2μV (Ref ch.) |
|
|
Internal CJC Accuracy |
±0.35°C (ch. 1-4) |
±0.30°C (ch. 1-4) |
|
±0.25°C (ref ch.) |
±0.20°C (ref ch.) |
|
|
Current Range |
–30 mA to 30 mA |
|
|
Current Accuracy |
±(0.02% of rdg+ 2μA) |
±(0.01% of rdg + 2μA) |
|
Current Resolution |
0.0001 mA |
|
|
Voltage Ranges |
–12 V to 12 V and –30 V to 30 V |
|
|
Voltage Accuracy |
±(0.02% of rdg+ 2mV) |
±(0.01% of rdg+ 0.6mV) |
|
Voltage Resolution |
0.0001 V, Input Impedance >1MΩ |
|
|
DC 24V Output |
24 V ± 10%, MAX 60 mA |
|
|
Hart Communication |
Optional (ADT875PC and ADT878PC Models) |
|
|
Temperature Coefficient 0°C to 8°C and 38°C to 50°C |
TC Readouts: ±5 ppm/°C |
|
|
Current: ±5 ppm/°C |
||
|
Voltage: ±5 ppm/°C |
||
|
Switch Test |
Mechanical or Electrical - Channels 1 & 2 only |
|
|
Documentation |
Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions |
|
|
TC Measurement Specifications |
|||
|
TC Type |
TEMP (°C) |
Error (°C)[1] |
|
|
875 |
878 |
||
|
K (CH1-CH4) |
100 |
±0.182 |
±0.172 |
|
300 |
±0.266 |
±0.236 |
|
|
600 |
±0.310 |
±0.251 |
|
|
900 |
±0.397 |
±0.304 |
|
|
1210 |
±0.517 |
±0.382 |
|
|
N (CH1- CH4) |
100 |
±0.273 |
±0.264 |
|
300 |
±0.270 |
±0.243 |
|
|
600 |
±0.309 |
±0.256 |
|
|
900 |
±0.368 |
±0.285 |
|
|
1210 |
±0.455 |
±0.335 |
|
|
E (CH1- CH4) |
100 |
±0.136 |
±0.126 |
|
300 |
±0.153 |
±0.130 |
|
|
600 |
±0.210 |
±0.154 |
|
|
900 |
±0.291 |
±0.202 |
|
|
1000 |
±0.297 |
±0.196 |
|
|
L (CH1- CH4) |
100 |
±0.223 |
±0.214 |
|
300 |
±0.271 |
±0.241 |
|
|
600 |
±0.308 |
±0.251 |
|
|
900 |
±0.522 |
±0.448 |
|
|
U (CH1- CH4) |
100 |
±0.270 |
±0.261 |
|
300 |
±0.189 |
±0.164 |
|
|
600 |
±0.227 |
±0.176 |
|
|
J (CH1- CH4) |
100 |
±0.186 |
±0.177 |
|
300 |
±0.197 |
±0.168 |
|
|
600 |
±0.256 |
±0.200 |
|
|
900 |
±0.281 |
±0.197 |
|
|
1200 |
±0.414 |
±0.294 |
|
|
S (CH1-CH4) |
100 |
±1.102 |
±1.094 |
|
300 |
±0.924 |
±0.899 |
|
|
600 |
±0.888 |
±0.837 |
|
|
900 |
±0.868 |
±0.793 |
|
|
1210 |
±0.865 |
±0.765 |
|
|
R (CH1- CH4) |
100 |
±1.080 |
±1.072 |
|
300 |
±0.869 |
±0.844 |
|
|
600 |
±0.804 |
±0.755 |
|
|
900 |
±0.771 |
±0.699 |
|
|
1210 |
±0.766 |
±0.670 |
|
|
B (CH1- CH4) |
250 |
±3.182 |
±3.170 |
|
300 |
±2.645 |
±2.631 |
|
|
600 |
±1.409 |
±1.379 |
|
|
900 |
±1.049 |
±1.003 |
|
|
1210 |
±0.905 |
±0.839 |
|
|
T (CH1- CH4) |
100 |
±0.194 |
±0.185 |
|
300 |
±0.191 |
±0.166 |
|
|
400 |
±0.217 |
±0.183 |
|
|
S (EXT. REF) |
100 |
±0.277 |
±0.273 |
|
300 |
±0.242 |
±0.229 |
|
|
600 |
±0.249 |
±0.224 |
|
|
900 |
±0.258 |
±0.220 |
|
|
1210 |
±0.266 |
±0.216 |
|
|
R (EXT. REF) |
100 |
±0.271 |
±0.266 |
|
300 |
±0.228 |
±0.216 |
|
|
600 |
±0.227 |
±0.202 |
|
|
900 |
±0.230 |
±0.194 |
|
|
1210 |
±0.240 |
±0.192 |
|
|
Standard Accessoreis |
||
|
Model |
Quantity |
Picture |
|
Calibration Furnace and selected Insert & insulator |
1 pc. |
 |
|
Power cable |
1 pc. |
 |
|
USB Cable |
1 pc. |
 |
|
Insert removal tool |
1 pc. |
 |
|
Test leads (PC option only) |
2 sets (6 pcs.) |
 |
|
Accredited Calibration Certification |
1 pc. |
|
|
Manual |
1 pc. |
|
|
Standard Accessoreis |
||
|
Model |
Quantity |
Picture |
|
9915-878 |
Carry case for ADT875-1210 or ADT878-1210 with wheels |
 |
|
ADT110-87X-TCINSERT-XX |
Insert for ADT875-1210 or ADT878-1210 (see insert ordering information below) |
|
|
AM1210-12 |
Reference TC - Type S: Platinum/10% Rhodium vs. platinum - 12" length (see AM1210 specs below) |
 |
|
9080 |
Cable Kit (includes TC plug, compensation cable, S,R,B,K,J,T,E,N) |
 |
|
AM1210-12 Type S Reference Standard Thermocouple |
|
|
Temperature Range |
0°C to 1300°C |
|
Type |
Type S: Platinum/10% Rhodium vs. platinum |
|
Long Term Drift |
±0.5°C at 1084.62°C after 1 year typical use |
|
Short Term Stability |
±0.2°C at 1084.62°C |
|
Diameter of Thermocouple Wire |
0.5 mm |
|
Sheath Material |
Alumina |
|
Sheath Dimensions |
OD: 6 mm (0.236"); Length: 305 mm (12.0") |
|
Protective Carrying Case |
e Included |
|
Documentation |
Report of test with data |
|
Note: ISO 17025 accredited probe calibration available, contact Additel for more information" |
|
|

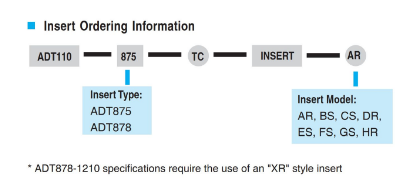

Inserts |
||
|
Style |
Model |
Specification |
|
Reference |
AR |
 |
|
DR |
 |
|
|
HR |
 |
|
|
Short |
CS |
 |
|
FS |
 |
|
|
GS |
 |
|
|
ES |
 |
|
|
BS |
 |
|
|
[1] 138 mm (5.43'') hole depth - for use with both 878 and 875 models |
||
|
[2] 116 mm (4.57'') hole depth - Only for the ADT875 – 1210, Insert models ending in the letter S have probe holes of shallower depths. Please call with questions. |
||
|
Documents and Links |
|
Additel 875-1210 and 878-1210 Dry Well Calibrator User Manual |
|
Software and Firmware |
|||
|
Name |
Versions |
Upload Date |
Size |
|
|
2020-02-20 |
135 MB |
|
|
|
2020-02-20 |
49 MB |
|
|
|
2021-11-18 |
11 MB |
|
