Specification

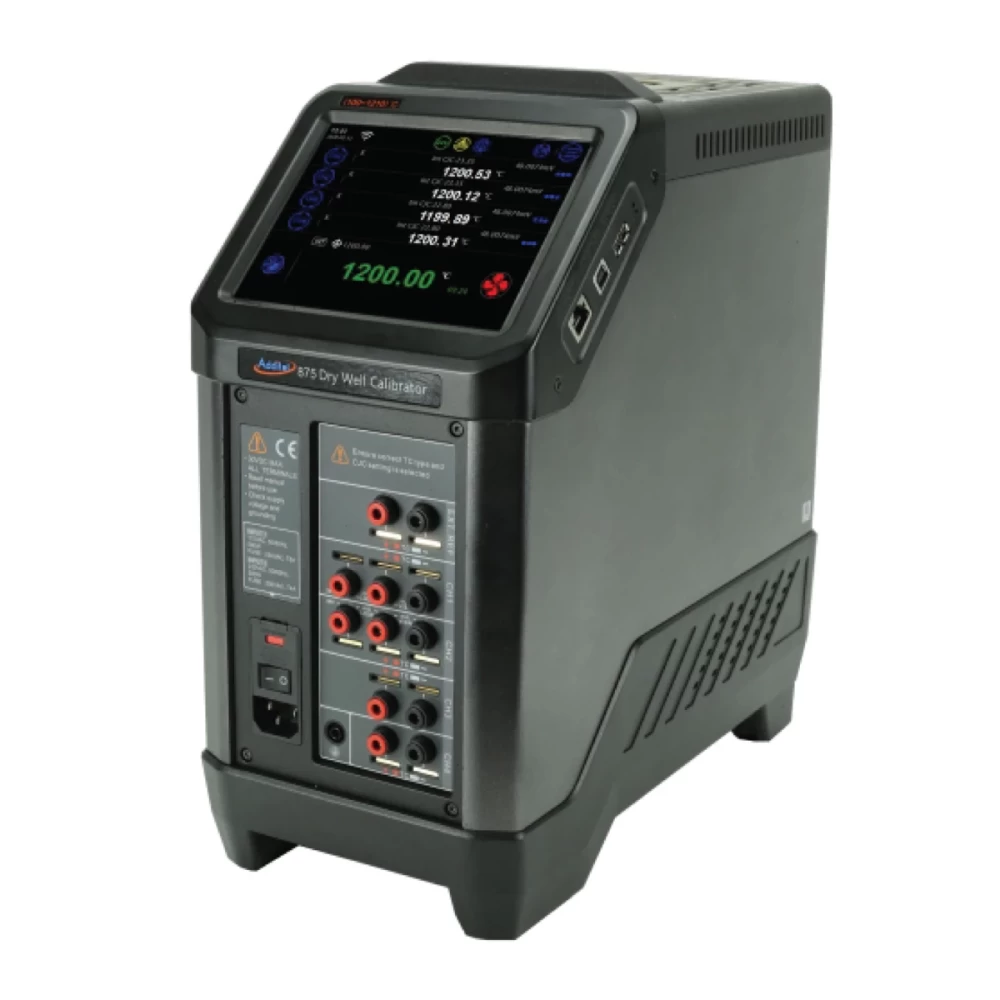

875 Display / Picture (Image 1)

875 Display / Picture (Image 2)

Task

mA Measurement

V Measurement

Auto Step

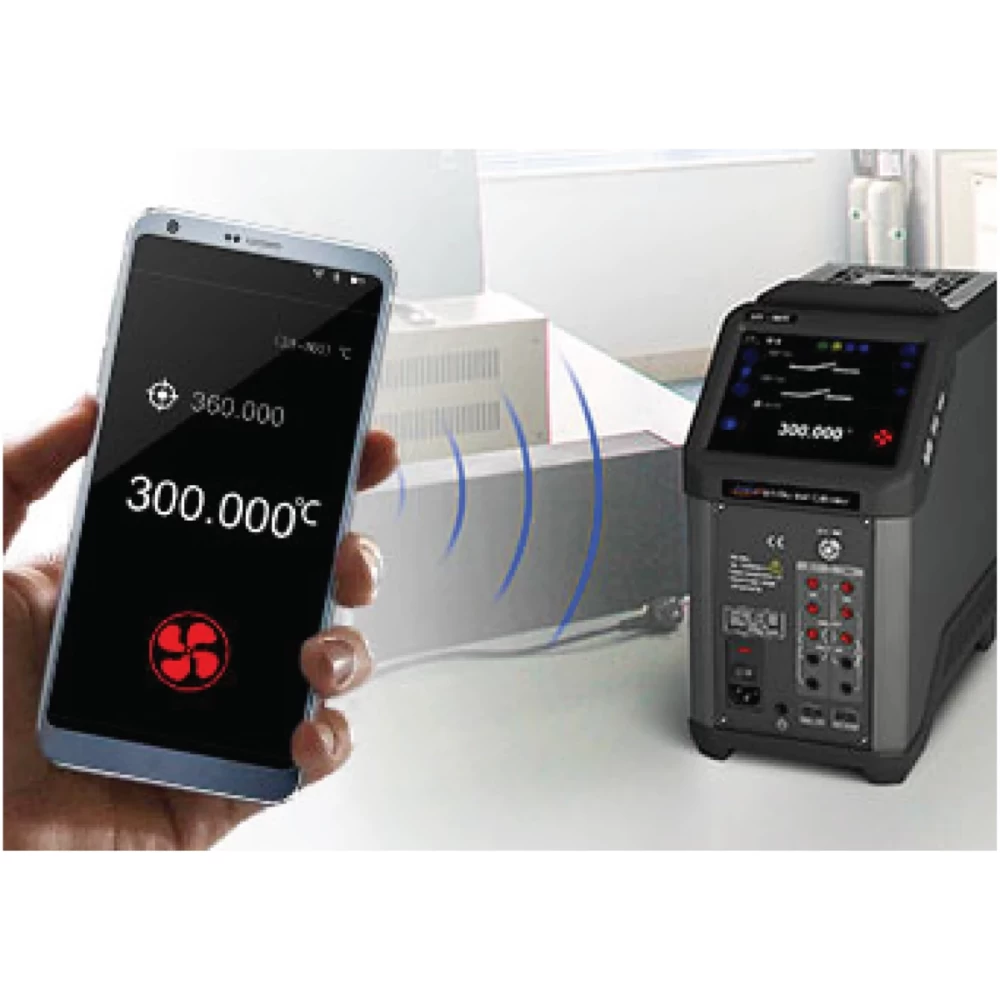

Remote Control

Data Logging

Stability Indicator

Connection Instruction

PRT Test (External Reference)

RTD Test

TC Test

Transmitter Test

Switch Test

Temperature Range at 23°C

-40°C to 155°C

33°C to 350°C

33°C to 660°C

Display Accuracy

±0.18°C at Full Range

±0.2°C at Full Range

±0.3°C at 33°C

±0.3°C at 420°C

±0.5°C at 660°C

Stability (30 min)

±0.01°C at Full Range

±0.02°C at Full Range

±0.02°C at 33°C

±0.03°C at 50°C

±0.04°C at 420°C

±0.04°C at 660°C

Axial Uniformity at 60 mm (2.4 in)

±0.07°C at Full Range

±0.04°C at 33°C

±0.05°C at 33°C

±0.1°C at 200°C

±0.3°C at 420°C

±0.2°C at 350°C

±0.5°C at 660°C

Radial Uniformity

±0.01°C at Full Range

±0.01°C at 33°C

±0.02°C at 33°C

±0.015°C at 200°C

±0.05°C at 420°C

±0.02°C at 350°C

±0.1°C at 660°C

Loading Effect

±0.1°C (Display Sensor)

±0.15°C (Display Sensor)

±0.15°C (Display Sensor)

±0.02°C (External Sensor)

±0.015°C (External Sensor)

±0.035°C (External Sensor)

Hysteresis (Display Sensor)

0.025°C

0.03°C

0.1°C

Environmental Conditions

8°C to 38°C guaranteed accuracy

0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation

Storage Conditions

-20°C to 60°C

IP Rating

IP20

Immersion Depth

145 mm (5.70 in)

150 mm(5.90 in)

Insert OD

25.8 mm (1.02 in)

24.8 mm (0.98 in)

Heating Time

13 min: -40°C to 155°C

10 min: 33°C to 350°C

15 min: 33°C to 660°C

5 min: -40°C to 23°C

8 min: 23°C to 155°C

Cooling Time

28 min: 155°C to -40°C

15 min: 350°C to 100°C

23 min: 660°C to 100°C

8 min: 155°C to 23°C

10 min: 100°C to 50°C

12 min: 100°C to 50°C

20 min: 23°C to -40°C

10 min: 50°C to 33°C

12 min: 50°C to 33°C

Typical Time to Stability

10 min

Resolution

0.01°C

Units

°C, °F, and K

Display

6.5 in (165 mm) color touch screen

Size (H x W x D)

320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)

Weight

9.9 kg (21.8 lbs)

8.2 kg (18.1 lbs)

Power Requirements

90-254 VAC, 45-65 Hz, 580 W

90-254 VAC, 45-65 Hz, 1200 W

Mechanical Testing

Vibration: 2 g (10-500 Hz), 30 min for 2 sides

Impact: 4 g three times

Drop test: 500 mm (19.6 in)

Communication

USB A, USB B, RJ45, WiFi, Bluetooth

Localization

English, Chinese, Japanese, Russian, German, French, Italian, and Spanish

Warranty

1 year

Readout Accuracy for 100 ohm PRT (Probe Accuracy Not Included)

±0.009°C at -40°C

±0.010°C at 0°C

±0.012°C at 50°C

±0.017°C at 155°C

±0.019°C at 200°C

±0.026°C at 350°C

±0.030°C at 420°C

±0.042°C at 660°C

Readout Resolution

0.5 mΩ

Reference Resistance Range

0Ω to 400Ω

Reference Resistance Accuracy

0Ω to 50Ω: 0.002Ω

50Ω to 400Ω: 0.008% RD

Reference Characterizations

ITS-90, CVD, IEC-751, Resistance

Reference Measurement Capability

4-wire PRT

Reference Probe Connection

6-pin lemo smart connector

RTD Channels

2

RTD Measurement Accuracy (excl sensor) Compliance

0Ω to 25Ω: 0.002Ω

25Ω to 400Ω: 0.004% RD

400Ω to 4K Ω: 0.008% RD

RTD Measurement Resolution

0Ω to 400Ω: 1 mΩ

400Ω to 4K Ω: 0.01Ω

RTD Measurement Resistance Range

0Ω to 4KΩ

RTD Characterizations

PT10, PT25, PT50, PT100, PT200, PT500, PT1000, CU10, CU50, CU100, NI100, NI120

RTD Connection

Four 4 mm input jacks

RTD Channels

2 channels. Both accept 2, 3, or 4-wire RTDs

TC Channel

2

TC Measurement Channels

Mini TC terminals: Accepting S, R, K, B, N, E, J, T, C, D, G, L, and U

TC Measurement Accuracy (excl sensor)

Type K: ±0.13°C at 0°C ±0.15°C at 155°C ±0.18°C at 350°C ±0.24°C at 660°C

TC Range

–75 mV to 75 mV

TC Resolution

0.0001 mV, Input Impedance >100 MΩ

TC Voltage Accuracy

0.02% RD + 5 μV

Internal CJC Accuracy

±0.35°C (ambient from 0°C to 50°C)

Current Range

–30 mA to 30 mA

Current Accuracy

0.02% RD + 2 μA

Current Resolution

0.0001 mA, Input Impedance: < 10Ω

Voltage Ranges

–12 V to 12 V and –30 V to 30 V

Voltage Accuracy

±0.02% RD + 2 mV

Voltage Resolution

0.001 V; Input impedance: > 1MΩ

Switch Test

Mechanical or Electrical

DC 24V Output

24V ±10%, MAX60 mA

Hart Communicator

Read, configure and calibrate HART devices - DD files updated periodically Optional - (order ADT875PC)

Documentation

Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions.

Temperature Coefficient 0°C to 8°C and 38°C to 50°C

ADT875 (PC)-155: ±0.005°C/°C

ADT875 (PC)-350/660: ±0.01°C/°C

Ref Readout: ±5 ppm FS/°C

RTD Readouts: ±2 ppm FS/°C

TC Readouts: ±5 ppm FS/°C

Current: ±5 ppm FS/°C

Voltage: ±5 ppm FS/°C

B

250

±2

350

±1.44

660

±0.84

C

0

±0.38

155

±0.34

350

±0.33

660

±0.38

0

±0.52

155

±0.37

350

±0.33

660

±0.36

E

-40

±0.09

0

±0.09

155

±0.1

350

±0.13

660

±0.19

G

0

±3.85

155

±0.71

350

±0.43

660

±0.36

J

-40

±0.1

0

±0.1

155

±0.12

350

±0.16

660

±0.21

K

-40

±0.13

0

±0.13

155

±0.16

350

±0.19

660

±0.25

L

-40

±0.1

0

±0.1

155

±0.12

350

±0.16

660

±0.21

N

-40

±0.2

0

±0.2

155

±0.19

350

±0.2

660

±0.24

R

-40

±1.23

0

±0.95

155

±0.63

350

±0.56

660

±0.54

S

-40

±1.16

0

±0.93

155

±0.65

350

±0.6

660

±0.6

T

-40

±0.14

0

±0.13

155

±0.13

350

±0.15

400

±0.15

U

-40

±0.14

0

±0.13

155

±0.13

350

±0.14

600

±0.17

[1] Excluding cold junction compensation errors.

Temperature Range [3]

-60°C to 160°C

-200°C to 420°C

-200°C to 670°C

-200°C to 670°C

Resistance at 0°C

Nominal 100Ω

Temperature Coefficient

0.003925 Ω / Ω / °C

Calibrated Accuracy (k=2)[2][3]

±0.025°C at -40°C

±0.025°C at -40°C

±0.025°C at -40°C

±0.010°C at -196°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.006°C at 0.01°C

±0.025°C at 160°C

±0.035°C at 420°C

±0.035°C at 420°C

±0.015°C at 420°C

±0.05°C at 661°C

±0.025°C at 661°C

Drift

±0.01°C at TPW after 100 hours at 160°C

±0.01°C at TPW after 100 hours at 420°C

±0.01°C at TPW after 100 hours at 661°C

±0.004°C at TPW after 100 hours at 661°C

Short Term Stability

±0.007°C

±0.002°C

Thermal Shock

±0.005°C after (10) thermal cycles from minimum to maximum temperatures

±0.002°C after (10) thermal cycles from minimum to maximum temperatures

Hysteresis

<=0.005°C

<=0.001°C

Self-heating

50 mW/°C

0.0015°C at 0.5mA

Response Time

9 seconds for 63% response to step change in water moving at 3 feet per second

Measurement Current

0.5 mA or 1 mA

Sensor Length

32 mm

42 mm

Sensor Location

5 mm from tip

Insulation Resistance

>1000 MΩ at room temperature

Sheath Material

Stainless Steel

Inconeltm

Dimension

AM1710-12-ADT

AM1730-12-ADT

AM1751-12-ADT

AM1760-12-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

AM1710-BEND-ADT

AM1730-BEND-ADT

AM1751-BEND-ADT

AM1760-BEND-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

External Leads

Teflontm –insulated copper wire, 4 leads, 0.8 meters

Handle Dimension

15 mm (OD) x 65 mm (L)

Handle Temperature Range[1]

-50°C to 160°C

-50°C to 180°C

Calibration

NIST traceable calibration with data included. Accredited calibration available per request.

[1] Handle temperatures outside this range will cause damage to the probe.

[2] Includes calibration and 100 hour drift.

[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).

*PRT Information from www.accumac.com

Temperature Range

-40°C to 160 °C

Resistance at 0 °C

Nominal 100 Ω

Temperature Coefficient

0.00385Ω/Ω /°C

Accuracy

±0.05°C at 0°C

Drift

±0.04°C at 0°C after 100 hours at 160°C

Short Term Stability

±0.02°C

Thermal Shock

±0.02°C after 10 times thermal cycles from minimum to maximum temperatures

Hysteresis

<= 0.01°C

Self-heating

75 mW/°C

Response Time

4 seconds for 63% response to step change in water moving at 3 feet per second

Measurement Current

1 mA

Internal Sensor Length

0.49" (15 mm)

Dimension

0.118" X 0.984" (3mm X 25mm)

Insulation Resistance

>1000 MΩ at room temperature

Sheath Material

Stainless Steel 316 L

Dimension

0.118 inch X 1.78 inch ( 3 mm X 45 mm )

External Leads

Enameled copper wire protected by high temperature heat shrink tubing, 4 leads, 0.8 meters

Calibration

NIST traceable calibration with data provided

Temperature Range [3]

-60°C to 160°C

-200°C to 420°C

-200°C to 670°C

-200°C to 670°C

Resistance at 0°C

Nominal 100Ω

Temperature Coefficient

0.003925 Ω / Ω / °C

Calibrated Accuracy (k=2)[2][3]

±0.025°C at -40°C

±0.025°C at -40°C

±0.025°C at -40°C

±0.010°C at -196°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.006°C at 0.01°C

±0.025°C at 160°C

±0.035°C at 420°C

±0.035°C at 420°C

±0.015°C at 420°C

±0.05°C at 661°C

±0.025°C at 661°C

Drift

±0.01°C at TPW after 100 hours at 160°C

±0.01°C at TPW after 100 hours at 420°C

±0.01°C at TPW after 100 hours at 661°C

±0.004°C at TPW after 100 hours at 661°C

Short Term Stability

±0.007°C

±0.002°C

Thermal Shock

±0.005°C after (10) thermal cycles from minimum to maximum temperatures

±0.002°C after (10) thermal cycles from minimum to maximum temperatures

Hysteresis

<=0.005°C

<=0.001°C

Self-heating

50 mW/°C

0.0015°C at 0.5mA

Response Time

9 seconds for 63% response to step change in water moving at 3 feet per second

Measurement Current

0.5 mA or 1 mA

Sensor Length

32 mm

42 mm

Sensor Location

5 mm from tip

Insulation Resistance

>1000 MΩ at room temperature

Sheath Material

Stainless Steel

Inconeltm

Dimension

AM1710-12-ADT

AM1730-12-ADT

AM1751-12-ADT

AM1760-12-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

AM1710-BEND-ADT

AM1730-BEND-ADT

AM1751-BEND-ADT

AM1760-BEND-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

External Leads

Teflontm –insulated copper wire, 4 leads, 0.8 meters

Handle Dimension

15 mm (OD) x 65 mm (L)

Handle Temperature Range[1]

-50°C to 160°C

-50°C to 180°C

Calibration

NIST traceable calibration with data included. Accredited calibration available per request.

[1] Handle temperatures outside this range will cause damage to the probe.

[2] Includes calibration and 100 hour drift.

[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).

*PRT Information from www.accumac.com

9875-155-CYOR

Range selection for ADT875- 155 Dry Well Calibrator, Customize Range

9875-350-CYOR

Range selection for ADT875- 350 Dry Well Calibrator, Customize Range

9875-660-CYOR

Range selection for ADT875- 660 Dry Well Calibrator, Customize Range

Dry well and selected insert

1 pc.

Power cable

1 pc.

USB Cable

1 pc.

Insert removal tool

1 pc.

Thermal Shield (ADT875/PC-350/660 only)

1 pc.

Silica gel plug (ADT875/PC-155 only) 1

1 set (3 pcs.)

Insulation plug (ADT875/PC-155 only)

1 pc.

Test leads (ADT875PC only)

2 sets (4 pcs.)

ISO 17025 Accredited calibration

1 pc.

CD Manual

1 pc.

9915-875

Carry Case for ADT875- 155/350/660 with wheels

ADT110-875-X-INSERT-X

Insert for ADT875, see insert ordering information on the next page

AM17XX-12-ADT

Secondary PRT with dry well connector, see PRT information on the next page

AM17XX-BEND-ADT

Bend Secondary PRT with dry well connector, see PRT information on the next page

9070

Smart connector for reference PRT used with ADT875 Dry Well Calibrator

9071

Connector Adapter from smart connector to 4-wire with goldplated spades for ADT875 Dry Well Calibrator

9072

Smart connector with clamps for reference PRT used with ADT875 Dry Well Calibrator

9080

Cable Kit (includes TC plug, compensation cable, S,R,B,K,J,T,E,N)

A

B

C

D

E

F

G

H

Z

ADT110-875-L-SHRT-Z

Spare Blank Insert

ADT110-878-L-SHRT-D

Spare Blank Insert

AM1612-ADT

Spare Short Style Secondary Reference Probe

3 mm dia.

4 mm dia.

6 mm dia.

1/8 in dia.

3/16 in dia.

1/4 in dia.

Additel 875 Dry Well Calibrator Datasheet

Additel 875 Dry Well Calibrator User Manual

Additel Hart Communication Manual

Additel Short Probe Temperature Calibration Kit Datasheet

Additel 875 Firmware Update Package

1.0.2.191.0.2.181.0.2.131.0.1.301.0.1.261.0.1.251.0.1.24

2021-11-18

12 MB

HART Pressure Library Update Package

2020.20.2

2020-02-20

135 MB

HART Temperature Library Update Package

2020.20.2

2020-02-20

49 MB

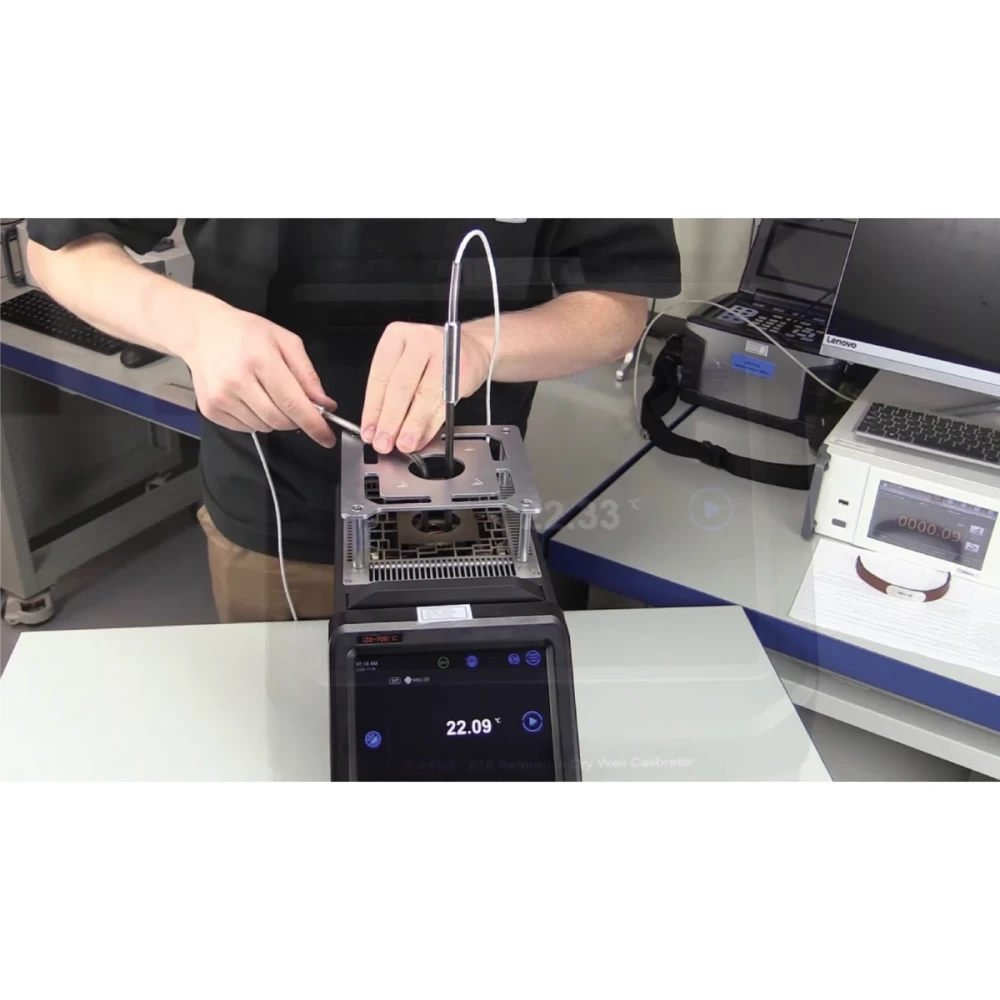

ADT875 - Introduction Video

ADT875 - Self Calibration Video

Additel Short Probe Kit Video
