OVERVIEW

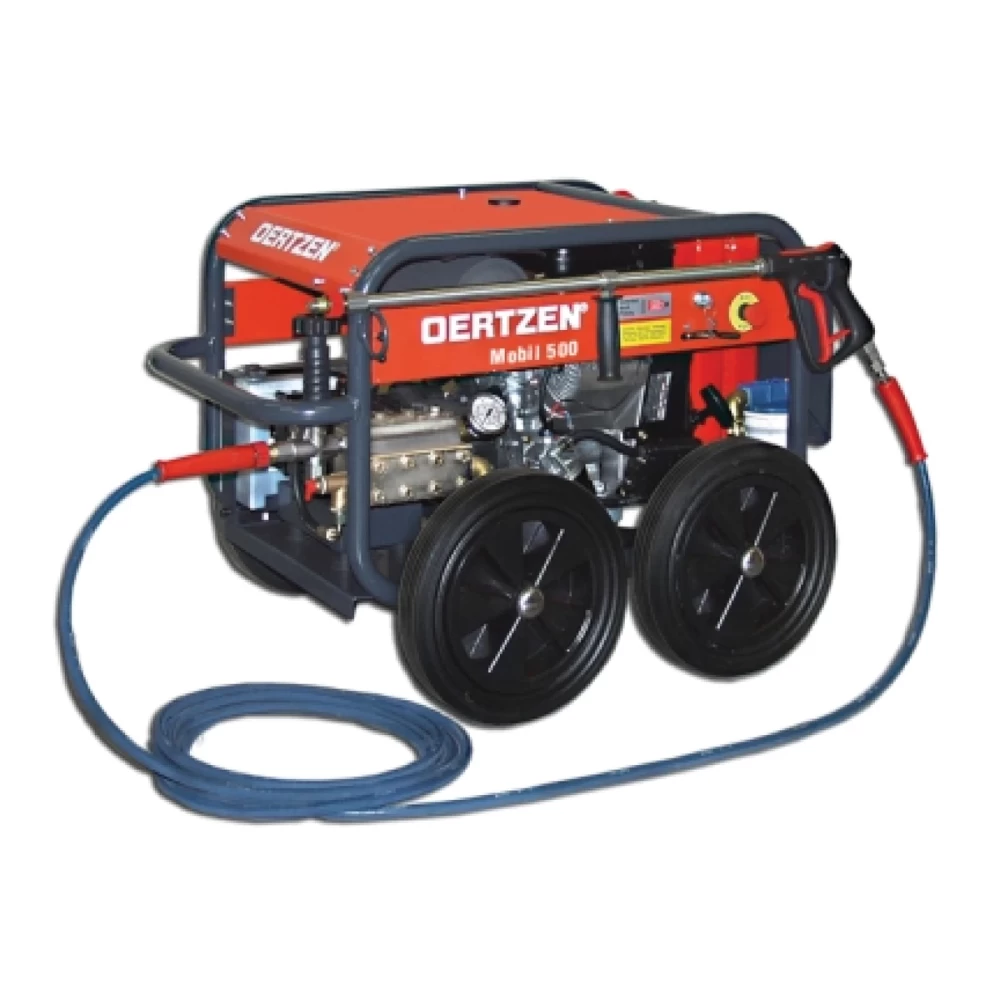

OERTZEN Mobil 500
Cold water high pressure aggregate
2 cyl. 4 stroke petrol engine 16.2 kW
oil shortage control protects engine
3 cyl. inline plunger pump 17 l/min / 4.5 gal/min
(brass pump head, ceramic plungers)
reduction gear flanged to petrol engine
motor/pump rpm 1420 1/min - slowly running machine
electric starter
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water shortage control protects pump from cavitation
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, concrete restoration, decoating, derusting, facade cleaning, graffiti removal, high pressure cleaning, industrial cleaning, paint removal, pipeline cleaning, sewage cleaning, water-sandblasting

Standard equipment: single lance 800 mm / 31 in (710.704.952) with HIP flat stream nozzle 3538 (710.743.538), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

hot water module HOT BOX (see accessories) turns Mobil 500 into hot water cleaner
