OVERVIEW

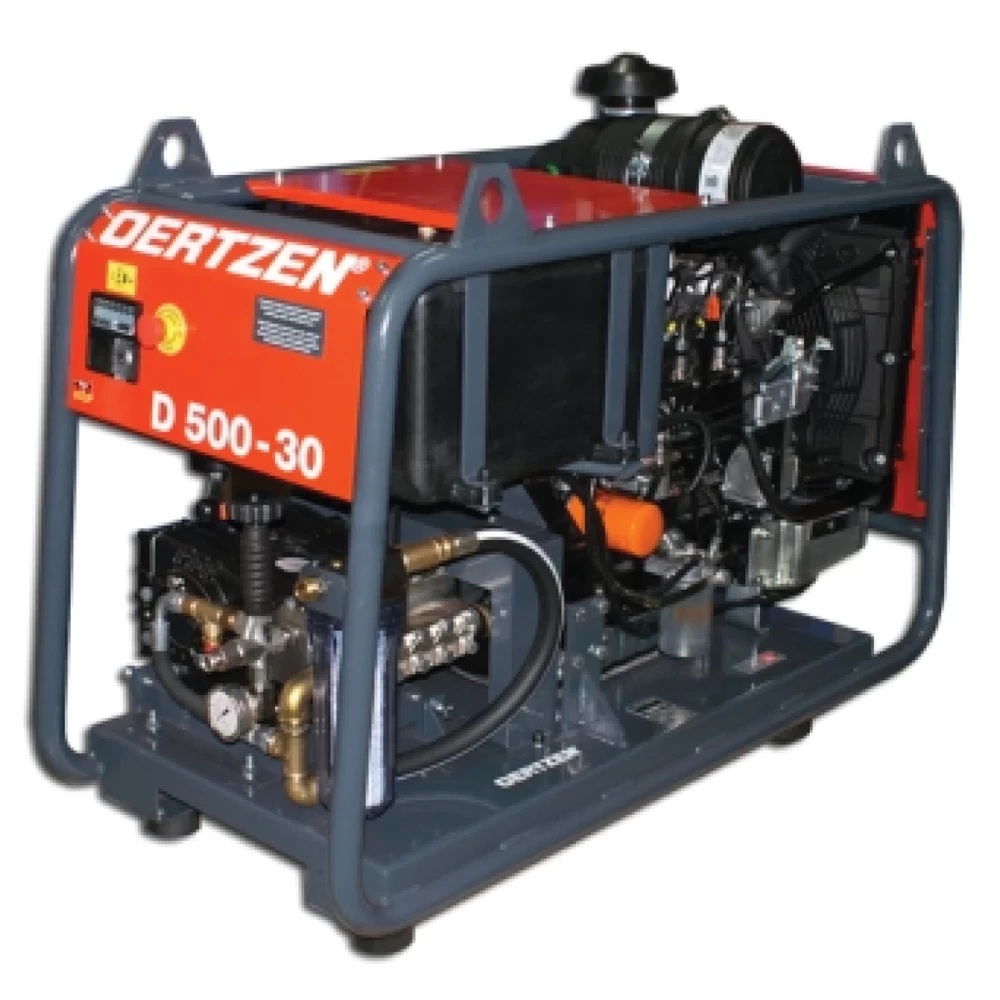

OERTZEN D 500-30 - diesel engine
Cold water high pressure aggregate
4 cyl. 4 stroke diesel engine 33 kW
5 cyl. inline plunger pump 30 l/min / 7.9 gal/min
(brass pump head, ceramic plungers)
motor/pump rpm 1450 1/min - slowly running machine, tooth belt drive
electric start
oil radiator, rpm control
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
on rubber feet
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, concrete restoration, decoating, derusting, facade cleaning, graffiti removal, high pressure cleaning, industrial cleaning, paint removal, pipeline cleaning, sewage cleaning, water-sandblasting

Standard equipment: single lance 800 mm / 31 in (710.704.952) with HIP flat stream nozzle 2038 (710.742.038), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 20 m / 66 ft (710.702.066)

Option: wheel kit with locking brake
