OVERVIEW

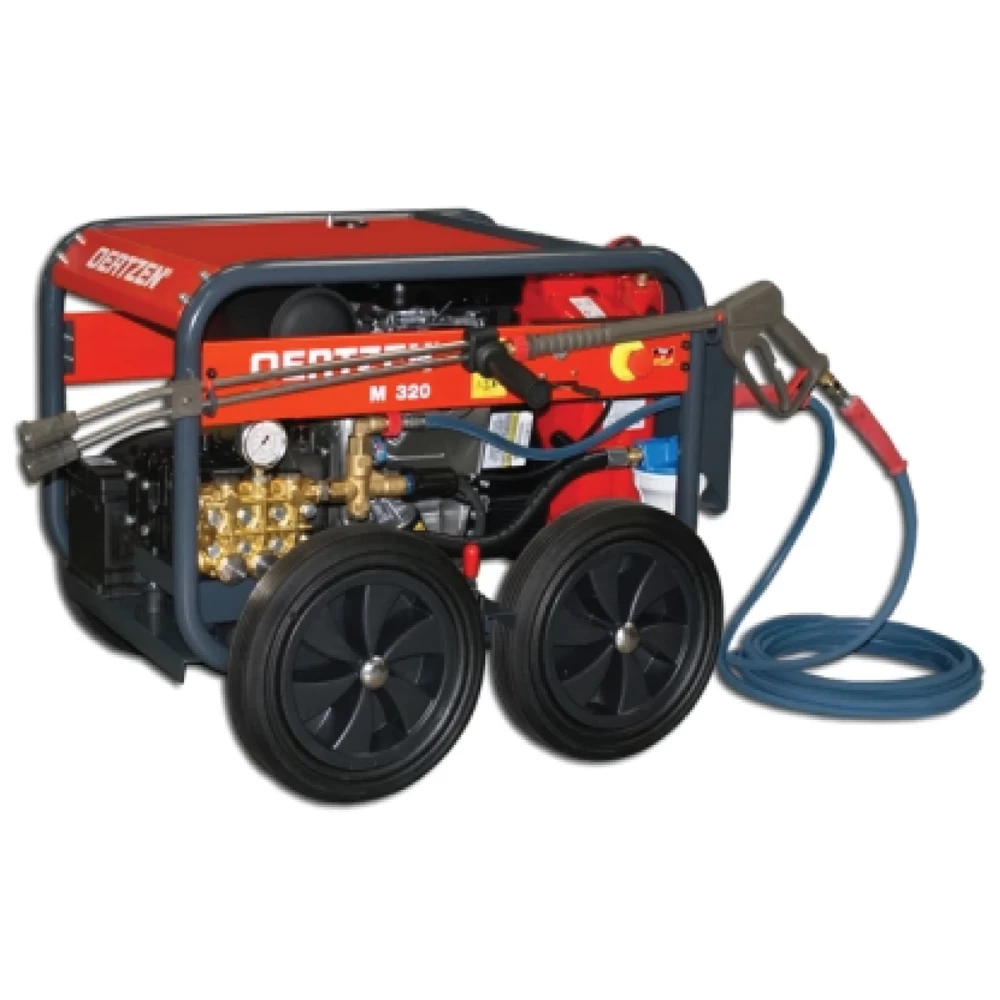

OERTZEN Mobil 320
Cold water high-pressure cleaner
2 cyl. 4 stroke petrol engine 16.2 kW
oil shortage control protects the engine
3 cyl. inline plunger pump 23 l/min / 6.1 gal/min
(brass pump head, ceramic plungers)
reduction gear flanged to petrol engine
motor/pump rpm 1420 1/min - slowly running machine
electric starter
pump system pressureless by closing spray pistol (stand by operation)
Thermo valve protects the pump from overheating
water shortage control protects the pump from cavitation
water microfilter protects the pump from soiled water
motor/pump unit protected by a solid, surrounding steel frame (powder coated)
chassis with 4 wheels on a twin axle, locking brake
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, facade cleaning, graffiti removal, high-pressure cleaning, industrial cleaning, paint removal, pipeline cleaning, sewage cleaning, water-sandblasting

Standard equipment: double lance 660 mm / 26 in (710.700.022) with HIP flat stream nozzle 2038 (710.742.038), flat stream nozzles with 15/25/40/65° spray angle optional, high-pressure security pistol 330 bar / 4785 psi 3/8" with insulated handle 560 mm / 22 in (710.700.001) and swivel joint (710.708.050), PANZERJET high-pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

hot water module HOTBOX 500 (see accessories) turns Mobil 320 into hot water cleaner
