COLD WATER HIGH PRESSURE CLEANER

OERTZEN - Mobil 500 - Petrol Engine

Flow rate max.

1320 l/h / 348 gal/h

Unloading pressure

410 bar / 5945 psi

Working pressure max.

385 bar / 5583 psi

Pump speed (rpm)

1450 1/min

Power source

Diesel Engine

Engine/motor output

18 kw

Dimensions (frame: LxWxH)

1370 x 820 x 1080 mm

Weight

254 kg / 560 lb

OVERVIEW

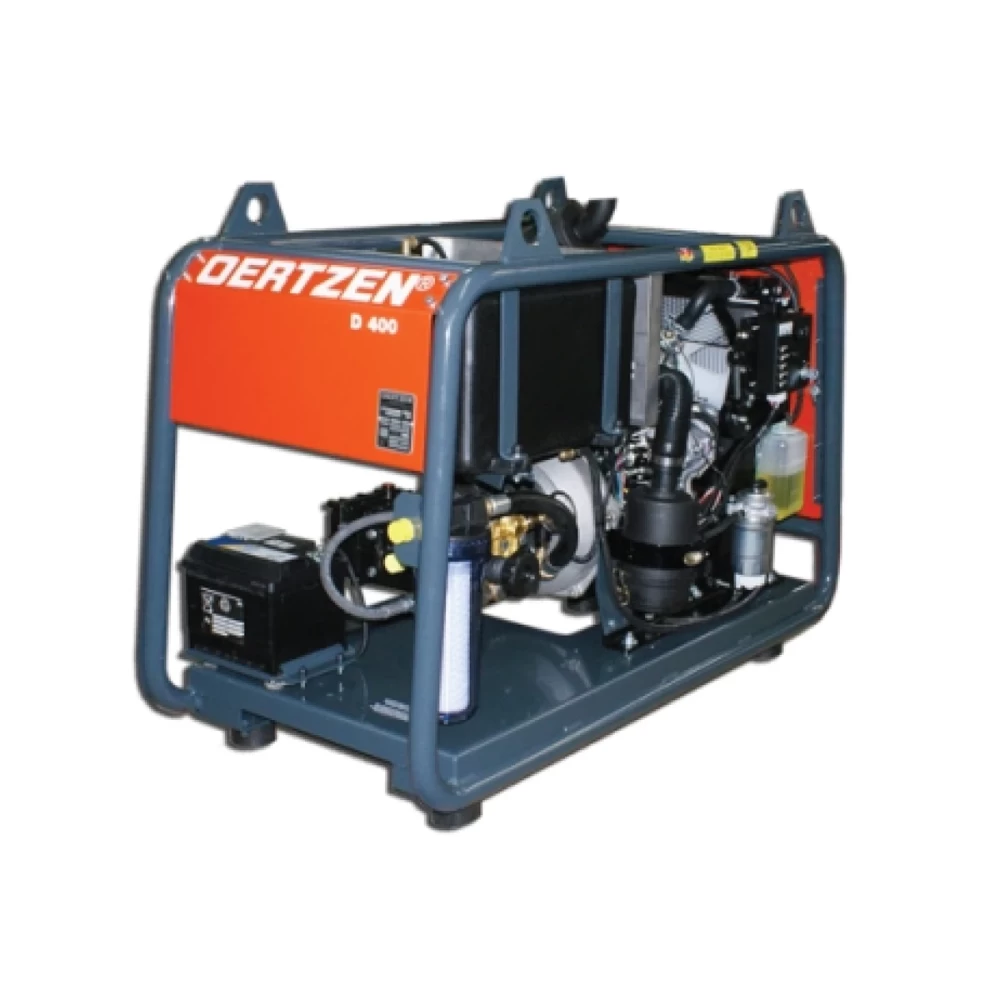

OERTZEN D 400 - diesel engine
Cold water high pressure aggregate
3 cyl. 4 stroke diesel engine 18 kW
3 cyl. inline plunger pump 22 l/min / 5.8 gal/min
(brass pump head, ceramic plungers)
motor/pump rpm 1450 1/min
electric start
oil radiator, rpm control
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
water micro filter protects pump from soiled water
motor/pump unit protected by solid, surrounding steel frame (powder coated)
on rubber feet
hose swivel prevents hp hose from curling up

Application range: abrasive blasting, decoating, facade cleaning, graffiti removal, high pressure cleaning, industrial cleaning, paint removal, pipeline cleaning, sewage cleaning, water-sandblasting

Standard equipment: single lance 800 mm 31 in (710.704.952) with HIP flat stream nozzle 2038 (710.742.038), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

Option:
wheel kit with locking brake

Technical characteristics

Technical characteristics

Flow rate max.

1320 l/h / 348 gal/h

Unloading pressure

410 bar / 5945 psi

Working pressure max.

385 bar / 5583 psi

Water temperature max.

-

Power source

diesel engine

Engine output

18 kW

Pump speed

1450 1/min

Thermo valve

+

Dimensions (frame: LxWxH)

1370 x 820 x 1080 mm / 53.4 x 32 x 42.1 in

Weight (net)

254 kg / 560 lb

Please notice

technical data are subject to alterations
