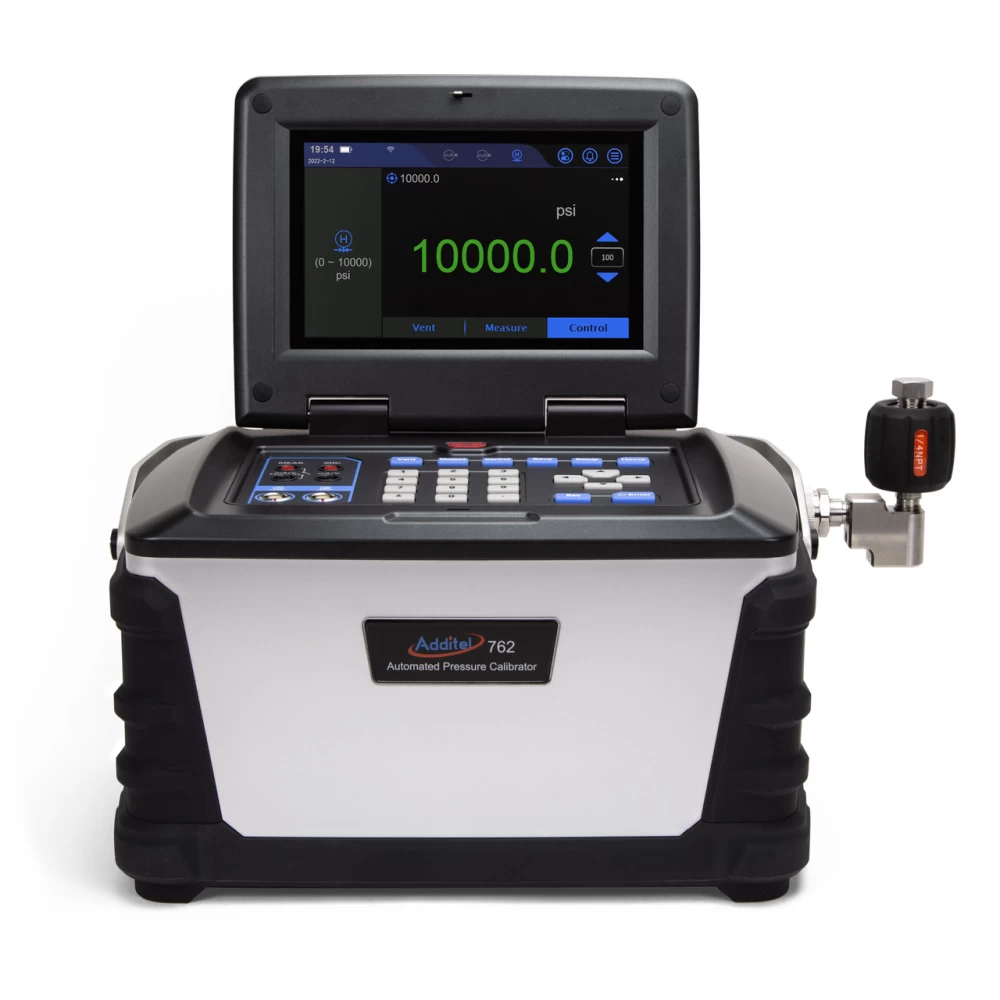

Dual-Range Accuracy to 0.01% FS

The ADT762 includes the unique ability to automatically switch between different internal calibrations depending on the current control pressure of the ADT762. Additel provides calibrations unique to each ADT762 for ranges of 0-3,000 PSI (200 Bar) and 0-10,000 PSI (700 Bar). As the calibrator is pressurized, it will automatically select the best calibration data for any specific control pressure. This means the accuracy option of 0.01% or 0.02% FS would apply to both the 10,000 psi and the 3,000 psi ranges. Pressure calibration range selection can be set to “auto” mode so the calibration range is automatically selected by the ADT762 based on the set point pressure, or the calibration range can be manually selected.

Built-in Auto-Purge Application

Purging hydraulic calibration systems can be challenging and time consuming. The ADT762 has been designed with an integrated auto-purge system that saves time, money and frustration by completely automating the removal of air from the system. With the push of a button, the ADT762 quickly manages the system purging. This helps to free up time for technicians to attend to other needs.

Documented Task Feature

The powerful documented calibration task application allows users to quickly create and execute tasks without the need for a PC or tablet. The ADT762 automatically analyzes errors, generates test reports, while storing results locally. The Additel 762 can support up to 1000 documented tasks which can be stored and recalled at any time to help save time and money.

Dual-Mode Hart Communication

HART pressure transmitters can be directly maintained and calibrated without any other equipment or tools. The ADT762 provides an automatic HART calibration mode as well as a manual mode. This dual-mode HART communication function not only provides an efficient and convenient interoperability mode for DUT, but also supports access to a fully HART capable calibrator.

Pressure Range

0-10,000 psi (0-700 Bar)

Range Selection

Manual 3K psi, Manual 10K psi or Auto-range

Accuracy

0-10,000 psi, 0.01%FS

0-10,000 psi, 0.02%FS

0-3,000 psi, 0.01%FS

0-3,000 psi, 0.02%FS

Maximum External Load Capacity

Max: 80 ml @ 700 Bar, 50 ml reccomended

Reservoir

Max: 350 ml, push-on reservoir cap, built-in filter

Control Stability [1]

≤ 0.005% FS

Stability Duration

> 5 min

Pressure Modules

Built-in one module with dual range

External Control Pressure Module

See the following "External Control Pressure Module Specification and Compatibility" table

External Measurement Pressure Module

All ADT161 pressure modules

[1] Control Stability is based on the range of pressure control module

Current Measure

Auto-ranging ±25 or ±50 mA

0.1 μA

0.008 %RD + 1.0 μA

Impedance < 10 Ω

0.008 %RD + 2.0 μA

Voltage Measure

±300 mV

1 μV

0.008 %RD + 6 μV

Impedance > 1 GΩ

Auto-ranging ±5, ±12 or ±30 V

±5 V: 20 μV

0.008 %RD + 100 μV

Impedance > 1 MΩ

±12 V: 0.1 mV

0.008 %RD + 240 μV

±30 V: 0.1 mV

0.008 %RD + 600 μV

Loop Power Source

24 V

N/A

±1 V

50 mA (Max Loading)

mA Source

0 to 2.5 mA or 2.5 to 25 mA

0-2.5 mA: 0.05μA, 0-25 mA: 0.5μA

0-2.5 mA: 0.008 %RD + 0.1 μA, 0-25 mA: 0.008 %RD + 1.0 μA

20 mA @ 1 kΩ

Power Source

16 to 30 V

1 V

±1 V

70 mA (Max Loading)

V Source

0 to 16 V

250 μV

0.008 %RD + 0.002 %FS

Pressure Switch

Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch

N/A

N/A

Response time < 10 ms if the switch is powered. Voltage range: (3-30) V

Temperature Compensation

18°C to 28°C

Temperature Coefficient

Outside of 18°C to 28°C: <±0.0005%RD+0.00005%FS/°C

Misuse Protection

Up to 30 V on any two sockets

Pressure Switch Test

Supported

HART / Profibus PA

Supported

ADT161-01RD-GPXM for 0.01% rdg






1000

70

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

1500

100

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

2000

140

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

3000

200

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

5000

350

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

10000

700

0.01% rdg or 0.03% FS whichever is greater

Gauge

G,L

ADT161-02-GPXX for 0.02% FS



1000

70

0.02

Gauge

G,L

1500

100

0.02

Gauge

G,L

2000

140

0.02

Gauge

G,L

3000

200

0.02

Gauge

G,L

5000

350

0.02

Gauge

G,L

10000

700

0.02

Gauge

G,L

[1] For 0.01% FS pressure modules, single or multiple measurement range calibration certificate per request.  For other specifications, please contact Additel for more details.

User Interface

Color touch screen and keypad operation

Display

7” TFT touch screen 800 x 480 color

Enclosure IP Rating

IP31

Power

Dedicated lithium battery or power adapter

Battery

Rechargeable Li-Ion battery, typically 12 hours of operation, less than 5 hours recharge.

Weight

28 lbs (12.8 kg) without media

Size

11.81 x 8.66 x 7.56 in (300 x 220 x 192 mm)

Communications

Wi-Fi, LAN, Bluetooth, USB, Ethernet

HART Communication

Read, configure and calibrate HART devices - DD files updated periodically

Data Storage

> 8 GB

Data Logging

Up to 1,000,000 readings (data and time stamped)

Task documentation

Up to 1,000 tasks can be stored with data

Automation Functions

Switch test, auto step, leak test

User Interface Localization

English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian

Pump life

> 1,000,000 cycles

Environmental Specifications

Operating temperature: 32°F to 122°F( 0°C to 50°C)

Storage temperature: -20°C to 60°C ( -4°F to 120°F)

Humidity: <90%, non-condensing

Certification

ISO 17025 accredited certificate of calibration with NIST-traceable data

Compliance

CE

Software Compatibility

ACal, Additel Land and Additel Link for access via mobile application

Warranty

1 year

9022 Test Leads

2 sets (4 pcs)

USB Cable

1 pc

9725 Rechargeable Li-ion battery

1 pc

9818 110V/220V external Power adapter

1 pc

Funnel

1 pc

ADT100-762Hose High pressure hose

1 pc

Small accessory case (For cables and adaptors)

1 pc

Transportation cap

1 pc

9907-762 Carrying case

1 pc

9203 Sebecate oil (500ml)

1 bottle

O rings for liquid storage tank 3.5*1.2-NBR70

5 pcs

O rings for right angle connector 5*1.5-NBR70

5 pcs

9060 Pressure module connection cable

1 pc

ADT762 Right Angle connector

1 pc

ISO17025 accredited calibration certificate

1 pc

ADT107-KIT, Includes dual ports manifold, pressure hose and zero return communication cable

1 set
