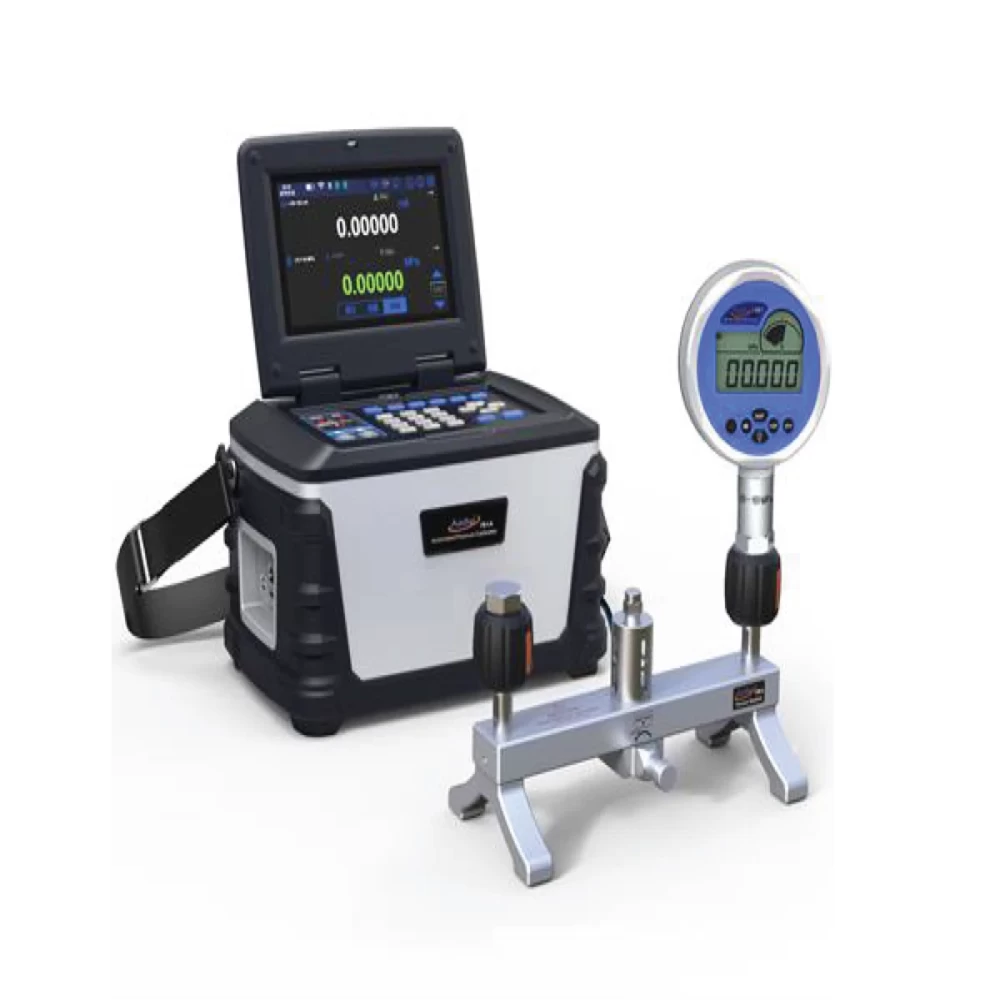

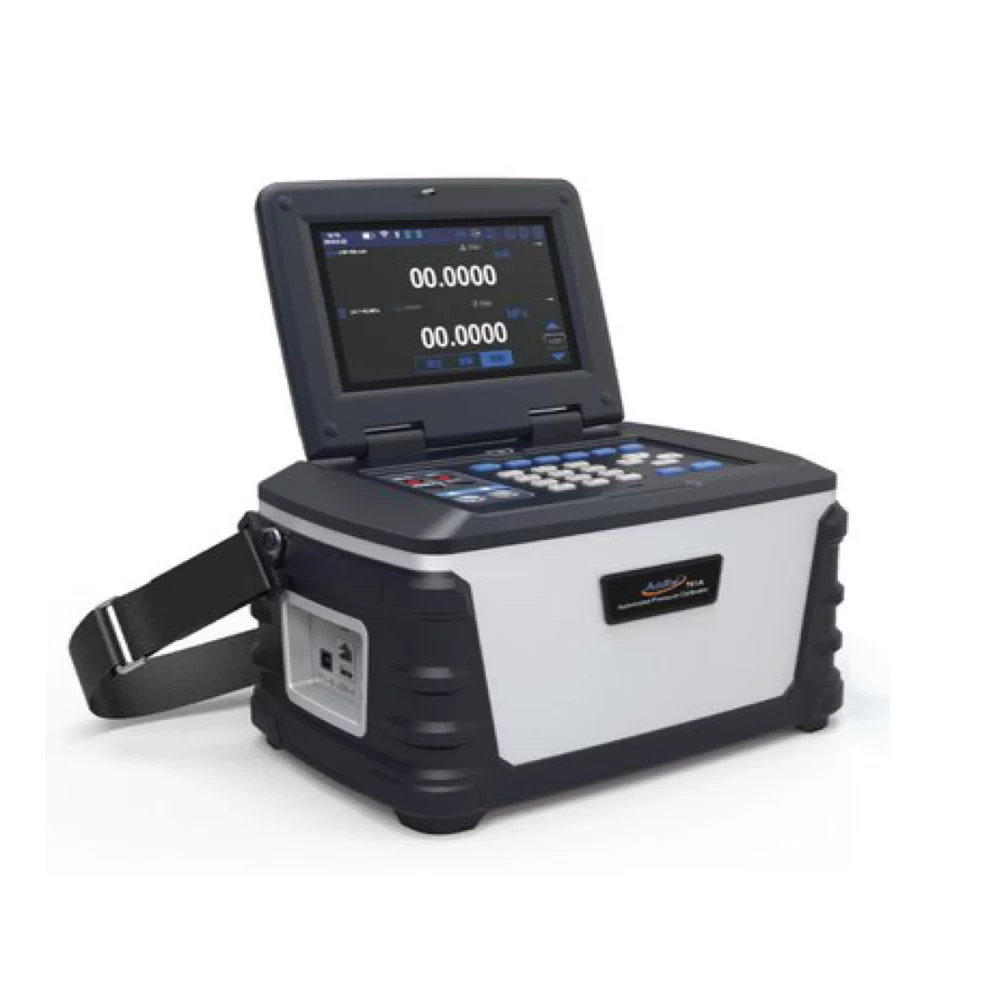

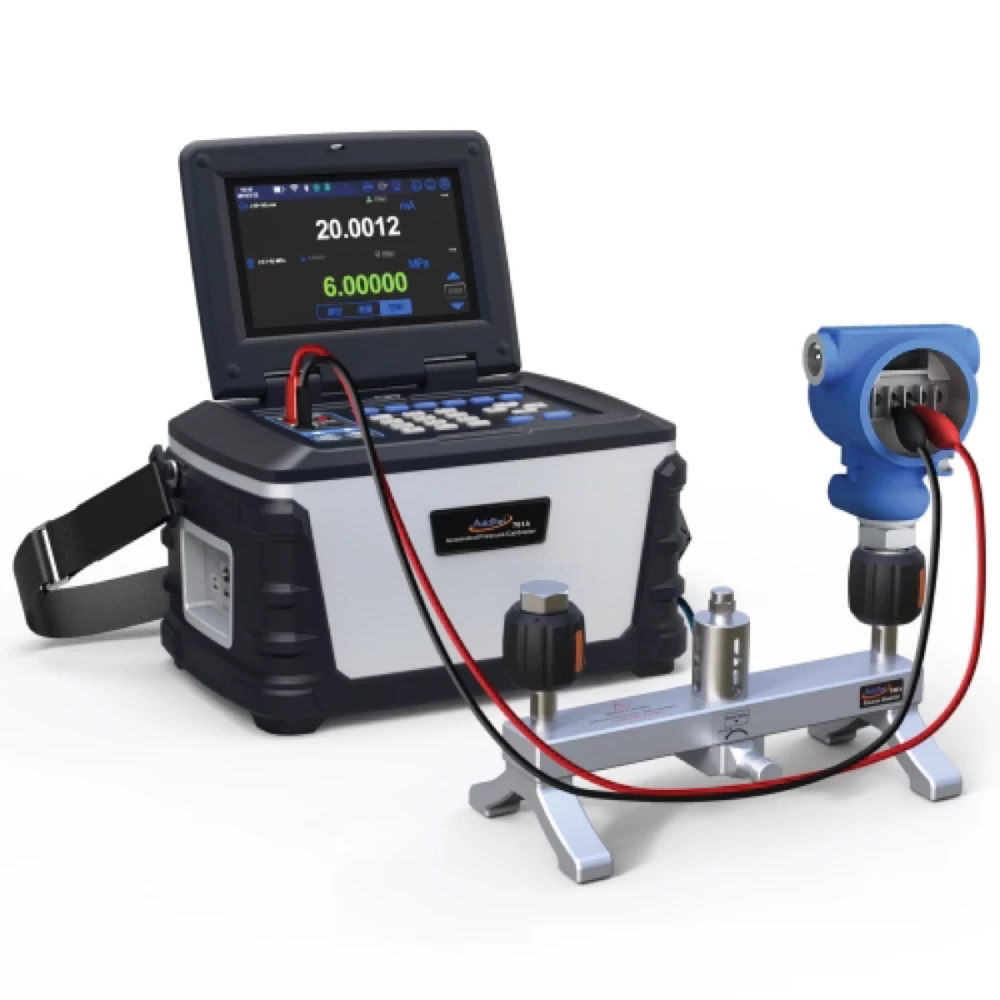

Additel 761A-BP
• Automated and self-contained pressure generation and control to 35 psi ( 2.5 bar)
• Up to 0.02%FS accuracy
• Two removable internal pressure modules for multi-range selection
• Control stability to 0.005%FS
• Portable, designed for use in the field and in the lab
• Ability to measure two external pressure modules
• Wi-Fi, Bluetooth, USB and Ethernet communication
• HART and profibus communication
• Full HART field communicator
• HART and profibus communication
• Data logging and task management
• Patented electric pump technology and improved speed
At Additel, innovation and continuous improvement are part of our company's culture and the products we introduce. When we set out to deliver the Additel 761A series calibrators, we knew we needed to provide breakthrough improvements and additional value to the existing line of calibrators (Additel 761 series). The ADT761A has many improvements: increased pressure range to 1,000 psi (70 bar), removable internal pressure modules, optional precision models to 0.01%FS, increased speed to pressure, ability to read two external pressure modules, touch screen display, Wi-Fi, Bluetooth, and Ethernet communications, double the original battery life, and more!
ADT761A-BP
The Additel 761A-BP is designed for calibration of barometer sensors. With a range of 100 to 1200 hPa and an accuracy of 0.01%FS, this unit is ideal for calibration on the bench or in the field.
|
Pressure Specifications |
||||||
|
Specification |
761A-LLP |
761A-D |
761A-500 |
761A-1K |
761A-APXR |
761A-BP |
|
Max Pressure Range |
30 inH2O (75 mbar) |
35 psi (2.5 bar) |
500 psig (35 bar.g) |
1,000 pisg (70 bar.g) |
Dependent on APXR |
1,200 hPasensor |
|
Min Pressure Range |
-30 inH2O (-75 mbar) |
-13.5 psi (-0.95 bar) |
-13 psi (-0.9 bar) |
-13 psi (-0.9 bar) |
Dependent on APXR |
100 hPasensor |
|
Accuracy(1) |
0.05%FS |
0.02%FS |
0.02%FS |
0.02%FS |
0.01%FS |
0.01%FS |
|
Stability |
0.005%FS or 0.05 Pa |
0.005%FS |
0.005%FS |
0.005%FS |
0.003%FS |
0.02 hPa |
|
Pressure Type |
Differential, Gauge |
Differential, Gauge |
Gauge, Absolute |
Gauge, Absolute |
Gauge, Absolute |
Absolute |
|
Over Range Indication |
1.2 |
|||||
|
Resolution |
6 digits |
|||||
|
Measurement Units |
Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, inH2O@68°F, kg/m2, mtorr, torr, lb/ft2, tsi, custom |
|||||
|
Barometric Accuracy |
N/A |
N/A |
60 Pa |
60 Pa |
60 Pa |
N/A |
|
[1] One year accuracy (including 1 year stability). FS specification applies to the span of the module range. |
||||||
|
[2] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode. Applicable only for use with the ADT761A-500 and ADT761A-1K |
||||||
|
* Additel 761A calibrators support 160A intelligent digital pressure modules that are available for gauge, vacuum and absolute pressure from -15 psi to 60,000 psi (-1 bar to 4200 bar).For detailed specs, see the 160A pressure module data sheet. |
||||||
|
Electrical Specifications |
||||
|
Specification |
Range |
Resolution |
Accuracy |
Note |
|
mA Measure |
Auto-ranging, ±25 or ±50 mA |
0.1 μA |
0.008%RD+0.004%FS |
Impedance<10Ω |
|
V Measure |
±300 mV |
1 μV |
0.008%RD+0.002%FS |
Impedance >1GΩ |
|
Auto-ranging, ±5, ±12 or ±30 V |
±5V:20 μV |
0.008%RD+0.002%FS |
Impedance >1MΩ |
|
|
±12V:100 μV |
||||
|
±30V:100 μV |
||||
|
Loop Power Source |
24 V |
N/A |
±0.24 V |
50 mA (Max Loading) |
|
mA Source |
0 to 2.5 mA or 2.5 to 25 mA |
0-2.5 mA: 0.05μA |
0-2.5 mA: 0.008%RD+0.1 μA |
20 mA @ 1KΩ |
|
0-25 mA:0.5μA |
0-25 mA: 0.008%RD+1.0 μA |
|||
|
Power Source |
16 to 30 V |
1 V |
±0.5 V(24 V: ±0.24 V) |
70 mA (Max Loading) |
|
V Source |
0 to 16 V |
250 μV |
0.008%RD+0.002%FS |
|
|
Pressure Switch |
Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch |
N/A |
N/A |
Response time<10 ms. If the switch is live, voltage range will be (3-30) V |
|
Temperature Compensation |
5°C to 35°C |
|||
|
Temperature Coefficient |
Outside of 5°C to 35°C: <±0.0005%RD+0.0001%FS/°C |
|||
|
Misuse Protection |
Up to 30 V on any two sockets |
|||
|
Internal Module Specification and Compatibility |
|||||||||
|
Model |
inH2O |
mbar |
Media |
Accuracy (%FS)(1) |
Burst Pressure |
761A-LLP |
761A-D |
761A-500 |
761A-1K |
|
ADT155-20-DP025 |
±0.25 |
±0.62 |
G |
0.2 (2) |
100x |
• |
|
|
|
|
ADT155-10-DP050 |
±0.5 |
±1.25 |
G |
0.1(3) |
100x |
• |
|
|
|
|
ADT155-05-DP1 |
±1 |
±2.5 |
G |
0.05(4) |
100x |
• |
|
|
|
|
ADT155-05-DP2 |
±2 |
±5 |
G |
0.05(4) |
100x |
• |
|
|
|
|
ADT155-05-DP5 |
±5 |
±10 |
G |
0.05(4) |
50x |
• |
|
|
|
|
ADT155-05-DP10 |
±10 |
±25 |
G |
0.05(4) |
20x |
• |
• |
|
|
|
ADT155-05-DP20 |
±20 |
±50 |
G |
0.05 |
20x |
• |
• |
|
|
|
ADT155-05-DP30 |
±30 |
±75 |
G |
0.05 |
20x |
• |
• |
|
|
|
ADT155-05-DP50 |
±50 |
±125 |
G |
0.05 |
3x |
|
• |
|
|
|
ADT155-02-DP100 |
±100 |
±250 |
G |
0.02 |
3x |
|
• |
|
|
|
ADT155-02-DP150 |
±150 |
±350 |
G |
0.02 |
3x |
|
• |
|
|
|
ADT155-02-DP300 |
±300 |
±700 |
G |
0.02 |
3x |
|
• |
|
|
|
ADT155-02-DP400 |
-380 to 400 |
-950 to 1K |
G |
0.02 |
3x |
|
• |
|
|
|
ADT155-02-DP800 |
-380 to 800 |
-950 to 2K |
G |
0.02 |
3x |
|
• |
|
|
|
ADT155-02-DP1K |
-380 to 1K |
-950 to 2.5K |
G |
0.02 |
3x |
|
• |
|
|
|
[1] FS specification applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules. |
|||||||||
|
[2] Accuracy is a 6 months spec, 1-year long-term drift is 0.2%FS. |
|||||||||
|
[3] Accuracy is a 6 months spec, 1-year long-term drift is 0.1%FS. |
|||||||||
|
[4] Accuracy is a 6 months spec, 1-year long-term drift is 0.05%FS. |
|||||||||
|
[5] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode.Applicable only for use with the ADT761A-500 and ADT761A-1K. |
|||||||||
|
Internal Module Specification and Compatibility (Gauge Pressure) |
|||||||||
|
Model |
psig |
bar.g |
Media |
Accuracy (%FS)(1) |
Burst Pressure |
761A-LLP |
761A-D |
761A-500 |
761A-1K |
|
ADT155-02-CP10 |
±10 |
±0.7 |
G |
0.02(5) |
3x |
|
• |
• |
|
|
ADT155-02-CP15 |
-13.5 to 15 |
-0.95 to 1 |
G |
0.02(5) |
3x |
|
• |
• |
|
|
ADT155-02-CP30 |
-13.5 to 30 |
-0.95 to 2 |
G |
0.02(5) |
3x |
|
• |
• |
• |
|
ADT155-02-CP35 |
-13.5 to 35 |
-0.95 to 2.5 |
G |
0.02(5) |
3x |
|
• |
• |
• |
|
ADT155-02-CP50 |
-13.5 to 50 |
-0.90 to 3.5 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP100 |
-13.5 to 100 |
-0.95 to 7 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP150 |
-13.5 to 150 |
-0.95 to 10 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP200 |
-13.5 to 200 |
-0.95 to 14 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP300 |
-13.5 to 300 |
-0.95 to 20 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP500 |
-13.5 to 500 |
-0.95 to 35 |
G |
0.02(5) |
3x |
|
|
• |
• |
|
ADT155-02-CP600 |
-13.5 to 600 |
-0.95 to 40 |
G |
0.02(5) |
3x |
|
|
|
• |
|
ADT155-02-CP1K |
-13.5 to 1K |
-0.95 to 70 |
G |
0.02(5) |
3x |
|
|
|
• |
|
[1] FS specification applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules. |
|||||||||
|
[5] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode.Applicable only for use with the ADT761A-500 and ADT761A-1K. |
|||||||||
|
General Specifications |
|
|
Specification |
Description |
|
User Interface |
Color touch screen and/or keypad operation |
|
|
Four total: one electrical, high or low internal |
|
Channels |
pressure module, two external pressure modules |
|
Enclosure IP Rating |
IP31 |
|
Battery |
Rechargeable Li-Ion battery, typically 16 hours of operation, recharges in less than 5 hours. |
|
Power |
Rechargeable Li-Ion battery, external power 110/220 V power adapter 27 V |
|
Display |
7” TFT touch screen 800 x 480 color |
|
Communications |
USB, LAN, Bluetooth, Wi-Fi |
|
Weight |
<17.52 lb (7.95 KG) |
|
Size |
11.77 x 7.60 x 7.56 in (299 x 193 x 192 mm) |
|
Certification |
ISO17025 accredited certificate of calibration with NIST-traceable data |
|
Data Storage |
6 GB |
|
Data Logging |
Up to 1,000,000 readings (data and time stamped) |
|
HART Communicator |
Read, configure and calibrate HART devices - DD files updated periodically |
|
Task documentation |
Up to 1000 tasks can be stored with data |
|
Automation Functions |
Switch test, auto step, leak test |
|
User Interface Localization |
English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian |
|
Pump life |
>100,000 cycles |
|
Environmental Specifications |
Operating temperature: 32 °F to 122 °F( 0°C to 50°C) |
|
Compensated temperature: 32 °F to 122 °F( 0°C to 50°C) |
|
|
Storage temperature: -20°C to 60°C ( -4 °F to 120 °F) |
|
|
Humidity: <90%, non-condensing |
|
|
Vibration and Shock |
Vibration: 4g (20 to 2,000 Hz) |
|
Shock: 8g, 1 meter drop test |
|
|
Compliance |
CE |
|
Software Compatibility |
ACal, Additel Land and Additel Link for access via mobile application |
|
Warranty |
1 year |
|
Pressure Range |
||||||
|
Type |
Model |
Pressure Range |
High-Range Pressure Module |
Low-Range Pressure Module |
||
|
Range |
Accuracy |
Range |
Accuracy |
|||
|
Low/Differential Pressure |
ADT761A-LLP |
-75 to 75 mbar (-30 to 30 inH2O) |
DP30: -75 to 75 mbar (-30 to 30 inH2O) |
0.05%FS |
User selectable from DP20 to DP025 |
See Internal Module Table |
|
ADT761A-D |
-0.95 to 2.5 bar (-13.5 to 35 psi) |
CP35: -0.95 to 2.5 bar (-13.5 to 35 psi) |
0.02%FS |
User selectable from DP10 to CP30 |
See Internal Module Table |
|
|
Standard Accuracy Gauge/Absolute Pressure |
ADT761A-500 |
-0.9 to 35 bar (-13 to 500 psi) |
CP500: -0.9 to 35 bar (-13 to 500 psi) |
0.02%FS |
User selectable from CP10 to CP300 |
See Internal Module Table |
|
ADT761A-1K |
-0.9 to 70 bar (-13 to 1000 psi) |
CP1K: -0.9 to 70 bar (-13 to 1000 psi) |
0.02%FS |
User selectable from CP30 to CP600 |
See Internal Module Table |
|
|
Precision Accuracy Gauge/Absolute Pressure |
ADT761A-30R |
-0.95 to 1 bar (-13.5 to 15 psi) |
AP30R: -0.95 to 1 bar (-13.5 to 15 psi) |
0.01%FS |
Single sensor only |
|
|
ADT761A-50R |
-0.95 to 2.5 bar (-13.5 to 35 psi) |
AP50R: -0.95 to 2.5 bar (-13.5 to 35 psi) |
0.01%FS |
Single sensor only |
||
|
ADT761A-100R |
-0.95 to 7 bar (-13.5 to 100 psi) |
AP100R: -0.95 to 7 bar (-13.5 to 100 psi) |
0.01%FS |
Single sensor only |
||
|
ADT761A-300R |
-0.9 to 21 bar (-13 to 300 psi) |
AP300R: -0.9 to 21 bar (-13 to 300 psi) |
0.01%FS |
Single sensor only |
||
|
ADT761A-500R |
-0.9 to 35 bar (-13 to 500 psi) |
AP500R: -0.9 to 35 bar (-13 to 500 psi) |
0.01%FS |
Single sensor only |
||
|
ADT761A-1KR |
-0.9 to 70 bar (-13 to 1000 psi) |
AP1KR: -0.9 to 70 bar (-13 to 1000 psi) |
0.01%FS |
Single sensor only |
||
* See Internal Pressure Model Information in the Specifications Tab
|
Accessories (included) |
||
|
Accesory |
Amount |
Picture of Accessory |
|
ADT106A-X External Pressure Manifold (Excl ADT761A-LLP) |
1 pc |
 |
|
9818 (110V/220V External Power adapter) |
1 pc |
 |
|
9725 (Chargeable Li-ion battery) |
1 pc |
 |
|
9240 (DP gauge holder, rubber) (Only for ADT761A-LLP) |
1 pc |
 |
|
9060 (Pressure module connection cable) |
1 pc |
 |
|
ADT100-761A-X (Hose Test Kit, 5 feet flexible hose) (excl ADT761A-LLP) |
1 pc + 1 pc adapter |
 |
|
1220211206 (Adapter, quick female to barb) (Only for ADT761A-D) |
1 pc |
 |
|
9022 (Test Leads for calibrator) |
2 sets (4 pcs) |
|
|
9907 (Carrying case for 761A calibrator and accessory) |
1 pc |
 |
|
O-rings |
20 pcs |
|
|
Manual |
1 pc |
|
|
Pressure Hose |
1 pc for the ADT761A-D, 1 pc for the ADT761A-BP |
 |
|
ISO17025 accredited calibration certificate |
1 pc |
|
|
Threaded plug (Excl ADT761A-LLP) |
1 pc |
 |
|
USB Cable |
1 pc |
 |
|
Barb Fitting (Only for ADT761A-D and ADT761A-BP) |
1 pc |
 |
|
Silicone Tube |
2 meters for the ADT761A-LLP, 1 meter for the ADT761A-D |
 |
|
Optional Accessories |
||
|
Accessory |
Description |
Picture of Accessory |
|
|
||
|
9060 |
Pressure module connection cable |
|
|
9530 |
Additel/ACal Automated Calibration Software |
|
|
ADT100-761Hose |
ADT761 hose, 5 feet (polyamide, 2,390 psi burst) |
 |
|
ADT106A-X |
External Pressure Manifold (Excl ADT761A-LLP) |
|
|
ADT100-761A-X |
Hose Test Kit, 5 feet flexible hose |
|
|
Documents and Links |
|
Software and Firmware |
|||
|
Name |
Versions |
Upload Date |
Size |
|
|
2021-12-07 |
12 MB |
|
|
|
2020-12-15 |
136 MB |
|
|
|
2021-02-01 |
6 MB |
|
|
Videos |
