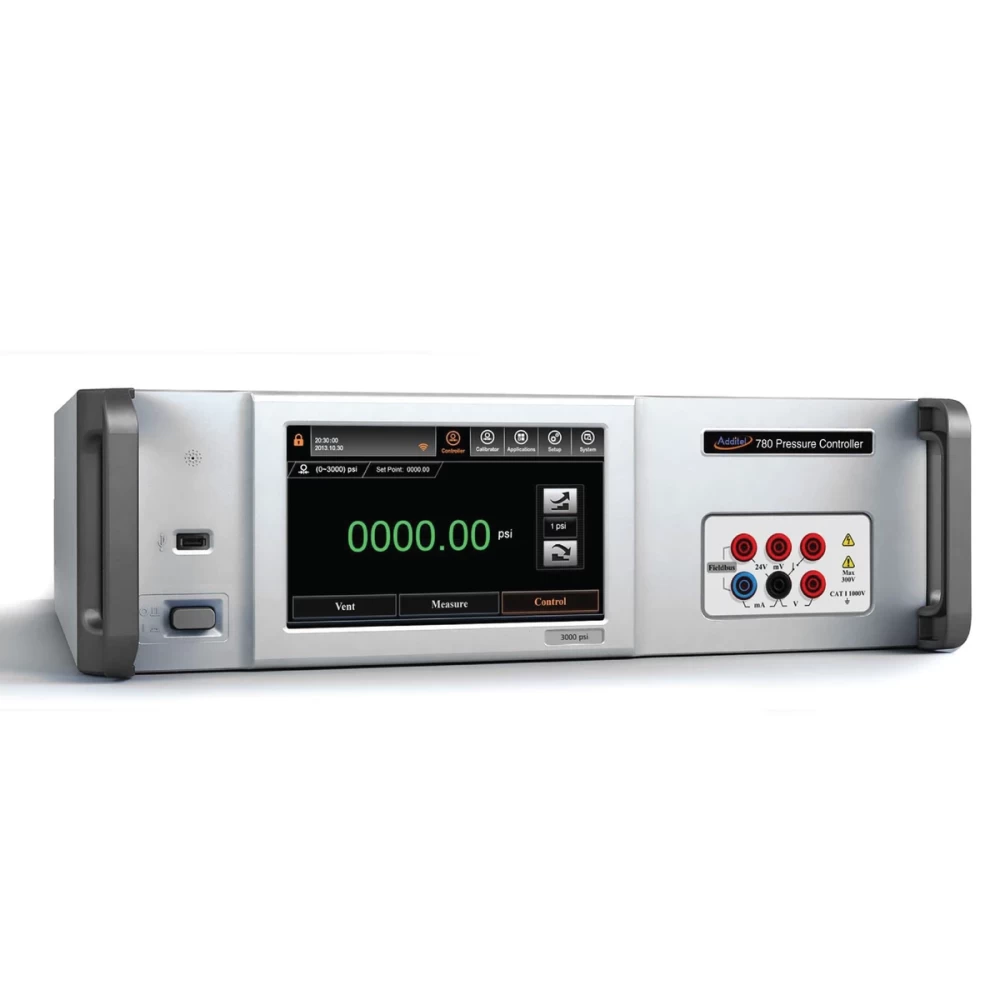

Additel 780S
• Pressure ranges from vacuum to 3,000 psi (200 bar)
• Precision accuracy models to 0.01% of reading
• Standard model accuracy of 0.02% of full scale
• HART Communication and Profibus PA
• Control stability of 0.003%FS
• Easy-to-use icon based user interface
• ISO 17025-accredited calibration w/data included
For years, we’ve provided the most durable, accurate, quality pressure calibration products for field applications. The Additel 780S controller incorporates the same durability, accuracy, and quality into a new bench top controller packed with features and functionality that is remarkably easy to use. The Additel 780S offers two base ranges: to 1,000 psi (70 bar) and to 3,000 psi (200 bar). The base range establishes the maximum controlling range of the controller. Each configuration includes a control sensor in which you can preselect the sensor range best suited your application. External and internal sensors can be used which allows for expanded range and accuracy capability in the future.
Modular Design
Each unit comes with one Intelligent Pressure Module configured to the many range offerings provided. Standard accuracy sensors (ADT160A-CPXXX) are silicon pressure sensors with a 1 year accuracy of 0.02% FS. The precision quartz based sensors improve the 1 year accuracy specification to 0.005% of reading + 0.005% FS. Each sensor has been specially aged, tested and screened before assembly. After assembly each sensor is temperature compensated over the range of -10°C to 50°C. The Additel 780S allows for one internal pressure sensor and one external pressure sensor. The modular design of this unit provides for interchangeability of both the internal and external sensors with other Intelligent Pressure Modules.In addition to the Intelligent Pressure Modules, the Additel 780S has a built in barometric sensor. This allows for switching between gauge pressures to absolute pressures.
Standalone Solution
Typical pressure controllers will require a nitrogen bottle for the gas supply which make it difficult to move the controller around without having to move or connect to another bottle. The Additel 780S is unique in that with the optional electric pump, you can generate pressures to 1,000 psi (70 bar) without the need of a gas bottle.
|

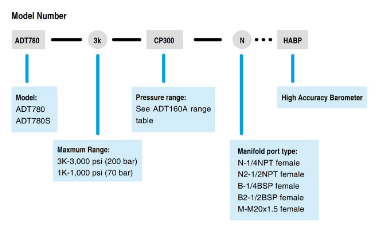

Specification |
ADT780-1K |
ADT780-3K |
|
Pressure range |
-14.5 to 1,000 psi (-0.95 to 70 bar) |
-14.5 to 3,000 psi (-0.95 to 200 bar)[1] |
|
Control stability |
0.003% FS (stability based on % FS of control sensor range) |
|
|
Precision (includes 1 year stability) |
See pressure range table |
|
|
Media |
Clean gas |
|
|
Over-range indication |
103% to 120% (based on sensor) |
|
|
Resolution |
4, 5, 6, or 7 digits (user selectable)[2] |
|
|
Pressure type |
Gauge, Absolute |
|
|
Warm up time |
15 minutes |
|
|
Measurement units |
Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable |
|
|
Minimum control pressure[3] |
0.0001 psi |
0.001 psi |
|
BAROMETRIC MEASUREMENT SPECIFICATION |
||
|
Sensor/Mode |
Gauge |
Absolute |
|
ADT160-02-CPXX |
N/A |
40 Pa[1] |
|
ADT160-01-APXXQ |
3 Pa[2] |
N/A |
|
Barometer range (60~110)kPa, the accuracy is 40 Pa (11 Pa is optional) [1] 40 Pa uncertainty (k=2) includes calibration uncertainty, linearity, and long term stability (<30 Pa per year). Barometer range of 60 to 120 kPa. [2] Combined linearity, hysteresis, and repeatability. Add 3 Pa when used in gauge mode. When using the ADT160-01-APXXQ sensors with the ADT780 controller in gauge mode, regular zeroing will realign the barometric reading to provide the most accurate result. |
||
|
PHYSICAL SPECIFICATIONS |
|
|
Specification |
ADT780S-1K & ADT780S-3K |
|
Power |
100 to 240V, 50/60 Hz |
|
Pressure ports |
G1/8 F |
|
Storage temperature |
-20°C to 70°C |
|
Operating environment |
0-90% RH non-condensing |
|
Display |
7 inch (17.8 cm) color, touch screen display |
|
Weight |
33 lbs (15 kg) |
|
Dimensions (DWH) |
16.5 x 17.3 x 5.2 inch (419 x 440 x 132 mm) |
|
Mounting |
Standard desktop, optional rack mount kit |
|
Shock |
4G |
|
Vibration |
1G 10Hz~500Hz |
|
OTHER SPECIFICATIONS |
|
|
WiFi specifications |
802.11 b, g, and n |
|
Vent |
Front panel vent and safety release button (only for 780S) |
|
Communications |
RS232,USB,LAN,WIFI |
|
Stability indicator |
User selectable |
|
Operating modes |
Control, measure, and vent |
|
Display modes |
Controller – show pressure indication and control |
|
Localization |
English, Chinese (simplified), German, Spanish, French, Italian, Portuguese, Russian, Japanese |
|
Conformity |
CE |
|
Calibration certification |
Accredited certificate of calibration with data included |
|
Warranty |
1 year |
|
160A for 780 & 780S |
||||||||
|
P/N |
Pressure Range |
Media |
Accuracy[2] |
Pressure Rating |
Suggested Controller Compatibility |
Internal/ External Use |
||
|
psia |
bar.a |
Burst |
Over Pressure |
|||||
|
Precision Sensors[1] |
||||||||
|
AP15R |
0 to 15 |
0 to 1 |
G |
0.01% FS |
2x |
1.2x |
ADT780-1K only |
Both |
|
AP30R |
0 to 30 |
0 to 2 |
G |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
ADT780-1K only |
Both |
|
AP50R |
0 to 50 |
0 to 3.5 |
G |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
ADT780-1K only |
Both |
|
AP100R |
0 to 115 |
0 to 8 |
G,L |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
ADT780-1K only |
Both |
|
AP300R |
0 to 315 |
0 to 21 |
G,L |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
Both |
Both |
|
AP500R |
0 to 515 |
0 to 36 |
G,L |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
Both |
Both |
|
AP1KR |
0 to 1,015 |
0 to 71 |
G,L |
0.01% rdg or 0.003% FS whichever is greater |
2x |
1.2x |
Both |
Both |
|
AP2KQ |
0 to 2,015 |
0 to 141 |
G |
0.005% rdg + 0.005% FS |
3x |
1.1x |
ADT780-3K only |
Both |
|
AP3KQ |
0 to 3,015 |
0 to 201 |
G |
0.005% rdg + 0.005% FS |
3x |
1.1x |
ADT780-3K only |
Both |
|
[1] Contact Additel for other range options. [2] Accuracy includes calibration uncertainty, linearity and long-term stability. **Low pressure sensors (ADT160A-XX-DPX) available for low pressure and differential pressure measurement. Also available for low pressure control (gauge mode only). Ranges from ±1 inH20 (2.5 mbar) to 300 inH2O (700 mbar). |
||||||||
|
160A for 780 & 780S |
||||||||
|
P/N |
Pressure Range |
Media |
Accuracy |
Pressure Rating |
Suggested Controller Compatibility |
Internal/ External Use |
||
|
psig |
bar.g |
Burst |
Over Pressure |
|||||
|
Standard Pressure Sensors |
||||||||
|
CP10 |
±10 |
±0.7 |
G |
0.02% FS |
3x |
1.2x |
ADT780-1K only |
Both |
|
CP15 |
±15 |
±1.0 |
G |
0.02% FS |
3x |
1.2x |
ADT780-1K only |
Both |
|
CP30 |
-15 to 30 |
-1 to 2.0 |
G |
0.02% FS |
3x |
1.2x |
ADT780-1K only |
Both |
|
CP50 |
-15 to 50 |
-1 to 3.5 |
G |
0.02% FS |
3x |
1.2x |
ADT780-1K only |
Both |
|
CP100 |
-15 to 100 |
-1 to 7.0 |
G,L |
0.02% FS |
3x |
1.2x |
ADT780-1K only |
Both |
|
CP300 |
-15 to 300 |
-1 to 20 |
G,L |
0.02% FS |
3x |
1.2x |
Both |
Both |
|
CP500 |
-15 to 500 |
-1 to 35 |
G,L |
0.02% FS |
3x |
1.2x |
Both |
Both |
|
CP600 |
-15 to 600 |
-1 to 40 |
G,L |
0.02% FS |
3x |
1.2x |
Both |
Both |
|
CP1K |
-15 to 1,000 |
-1 to 70 |
G,L |
0.02% FS |
3x |
1.2x |
Both |
Both |
|
CP2K |
-15 to 2,000 |
-1 to 140 |
G,L |
0.02% FS |
3x |
1.2x |
ADT780-3K only |
Both |
|
CP3K |
-15 to 3,000 |
-1 to 200 |
G,L |
0.02% FS |
3x |
1.2x |
ADT780-3K only |
Both |
|
CP5K |
-15 to 5,000 |
-1 to 350 |
G,L |
0.02% FS |
3x |
1.2x |
N/A |
External |
|
CP10K |
-15 to 10,000 |
-1 to 700 |
G,L |
0.02% FS |
2x |
1.2x |
N/A |
External |
|
|
Standard Accuracy |
Precision Accuracy |
|
|
|
CPXXX |
APXXQ |
APXXXR |
|
Operating temperature |
-10°C to 50°C (14°F to 122°F) |
15°C to 25°C (59°F to 77°F) |
10°C to 30°C (50°F to 86°F) |
|
Storage temperature |
-20°C to 70°C (-4°F to 158°F) |
-20°C to 70°C (-4°F to 158°F) |
|
|
Relative humidity |
95% RH |
90% RH |
|
|
Pressure connections (for external use only) |
1/4NPT, 1/2NPT, 1/4BSP, 1/2BPS, M20x15 |
||
|
Enclosure (for external use only) |
SS enclosure |
||
|
Dimensions (Dia x H) |
33 mm x 123 mm (1.3” x 4.84”) |
44 mm x 220mm (1.7” x 8.7”) |
44 mm x 195 mm (1.7” x7.7”) |
|
Weight |
0.4 kg (0.99 lb) |
0.8 kg (1.8 lb) |
0.7 kg (1.5 lb) |
|
ADT780-1K-EPUMP |
|
|
Pressure range |
-13.5 to 1,080 psi (-0.95 to 75 bar) |
|
Weight |
69.6 lbs (31.6 kg) |
|
Size(WHD) |
17.3 X 9.3 X 21.7 inch (440 X 235X 550 mm) |
|
Power |
100 to 240V |
|
Media |
Air |
|
Volume |
150 mL |
|
Outlet port |
G1/8F |
|
Storage temperature |
-20°C to 70°C |
|
Operating environment |
0-90% RH non-condensing |
|
Mounting |
Standard desktop, optional rack mount |
|
Control operation |
2 LED displays with pressure limit settings |
|
Typical max pressure time |
Approx 2 min with ADT780 Controller |
|
Standard Accessories |
||
|
Accessory |
Amount |
Picture of Accesory |
|
ADT127-X External Manifold |
1 pc |
 |
|
Manifold connection hose |
1 pc |
|
|
Power adapter |
1 pc |
|
|
9022 Test leads (except 780S) |
2 sets (4 pc) |
|
|
9020 Short circuit cable (except 780S) |
1 set (2 pc) |
|
|
9060 Pressure module connection cable |
1 pc |
 |
|
Adapter set (adapters to fit the ADT78X port to male fittings) |
1 set (2 pcs G1/8M to G1/4M, 2 pcs G1/8M to Festo, release valve) |
|
|
CD Manual |
1 pc |
|
|
ISO17025 accredited certificate |
1 pc |
|
|
O-rings |
2 types |
|
|
Vaccum/Vent tubing |
2 pc |
|
|
Optional Accessories |
||
|
Accessory |
Description |
Picture of Accessory |
|
ADT160A |
Pressure modules (see module information) |
|
|
ADT121-X |

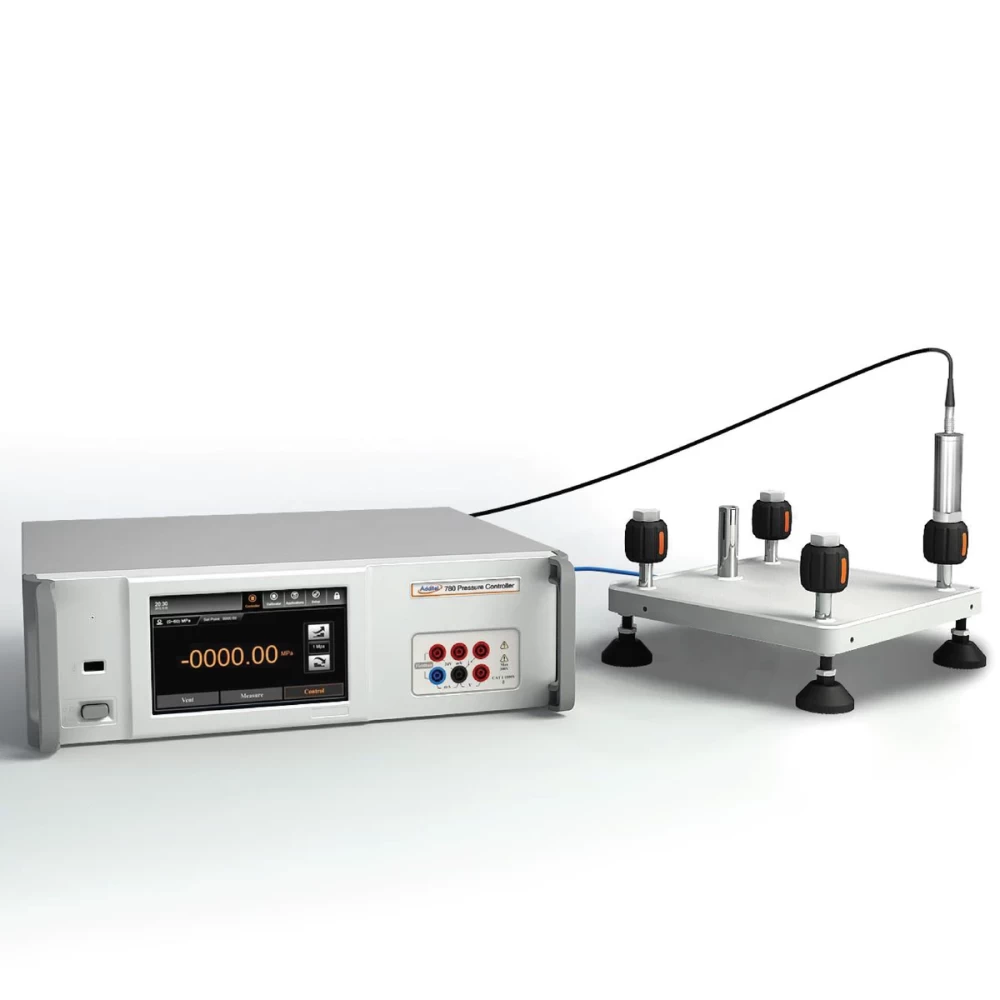

External pneumatic pressure manifold, 3,000 psi (200 bar), four hand-tight quick connectors |
|
|
ADT780-1K-EPUMP |
1,000 psi (70 bar) electrical pump |
 |
|
9050 |
RS232 to USB adapter |
|
|
9050-EXT |
RS 232 (DB9/M) extension cable, 9 feet |
|
|
ADT100-FLT-600 |
Liquid trap |
|
|
9912-780 |
Shipment case for the ADT780 and ADT780S Controller |
|
|
9506 Additel/Acal |
Automated calibration software, Task and asset management |
|
|
9245-780 |
Rack mount kit |
|
|
9245-EPUMP |
Rack mount kit |
|
|
