OVERVIEW

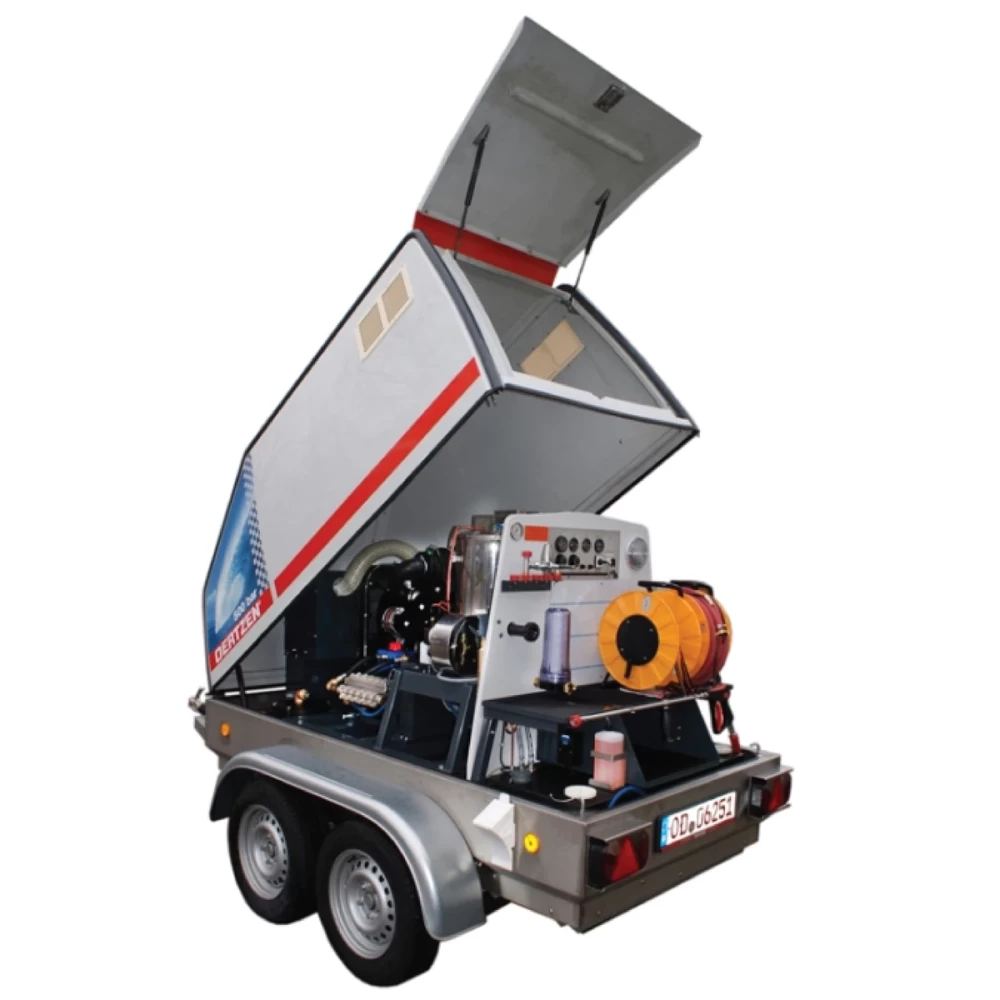

OERTZEN POWERTRAILER 500
Cold and hot water high pressure trailer
4 cyl. 4 stroke diesel engine 33 kW
hot water module fuel oil heated, 120°C / 248°F
3 cyl. inline plunger pump 30 l/min / 7.9 gal/min
(brass pump head, ceramic plungers)
reduction gear flanged to diesel engine
motor/pump rpm 1420 1/min - slowly running machine
electric starter
water tank integrated
pump system pressureless by closing spray pistol (stand by operation)
anti scaling system
power generator - for external machines as well
water micro filter protects pump from soiled water
high pressure working trailer with INOX chassis, PE hood and rear door
room for tools, accessories and protection clothing

Application range: abrasive blasting, container cleaning, drain cleaning, facade cleaning, floor cleaning, grafitti removal, high pressure cleaning, hot water cleaning, industrial cleaning, sewage cleaning, wall cleaning, water sandblasting

Standard equipment: single lance 800 mm / 31 in (710.704.952) with HIP flat stream nozzle 2038 (710.742.038), flat stream nozzles with 15/25/40/65° spray angle optional, high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940) and swivel joint (710.708.054), PANZERJET high pressure safety hose NW 8, 30 m / 98 ft (710.702.074)

Photo No. 3: POWERTRAILER 500 Skid, Order-No. 710.000.524 - same as POWERTRAILER 500, but without running gear
