OVERVIEW

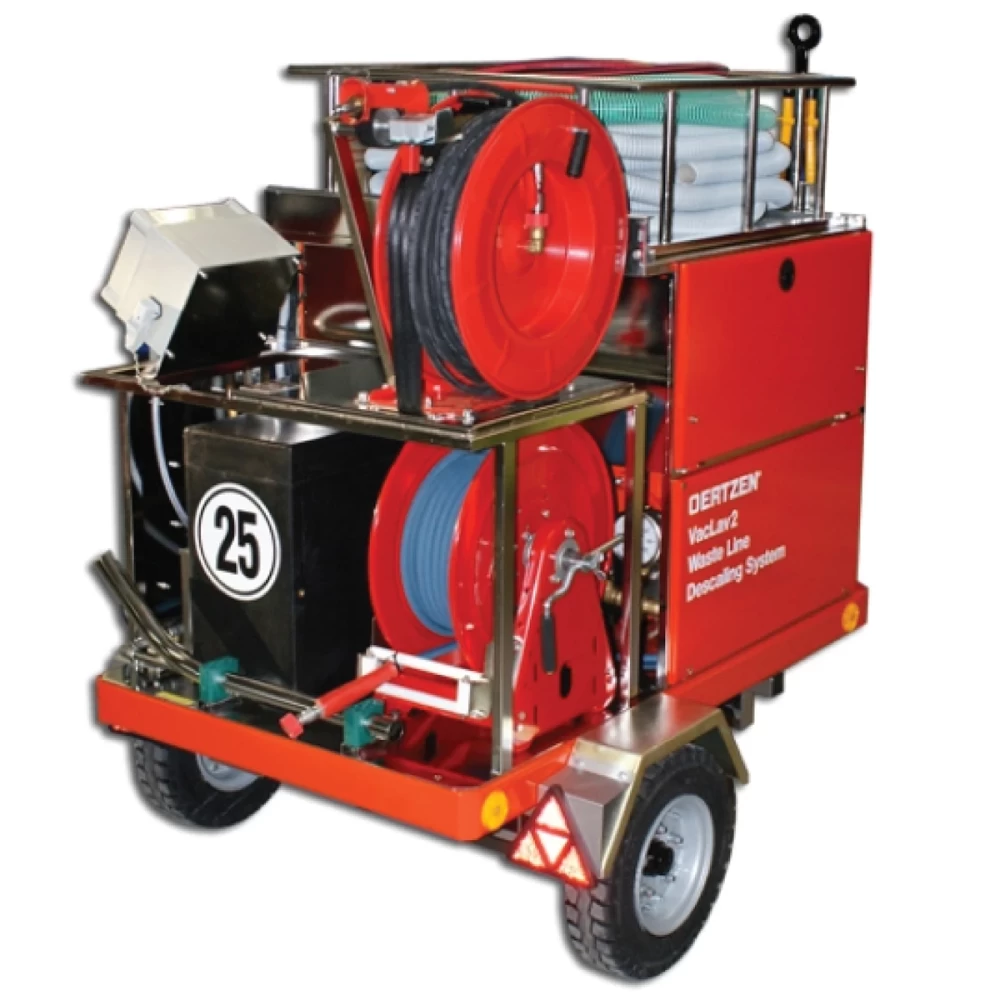

OERTZEN VacLav 2 - Aircraft Waste Line Descaling System

compact ground support equipment, on wheels
comprising of 2 high pressure pumps 400 V/3˜50 Hz -

^₁st pump generates 400 bar / 5800 psi high pressure water, cleaning aircraft waste lines from residues
2^nd pump produces a strong vacuum of 320 mbar, vacuuming residues into waste tank

Application range: aircraft waste line cleaning, aircraft waste line descaling, aircraft tubing system cleaning, descaling, high pressure cleaning, industrial cleaning, vacuuming residues

VacLav 2 Descaling System working with cold hp water only -
no chemicals
no leaks
no damage on waste lines and Hydraflow couplings.

To start working, VacLav 2 adaptor is connected to waste line of aircraft toilet. On opposite side of adaptor a drain cleaning hose 56 m / 184 ft (on portable hose reel) with special nozzle is inserted into tubing system. 1^st hp pump now delivers hp water with 400 bar / 5800 psi working pressure. Special descaling nozzle pulls itself forward through waste lines because of it's backward directed nozzle jets - removing layers of residues (urin scale) powerful but damage-free from walls of tubing system.

To this VacLav 2 adaptor a discharging waste hose is connected additionally. 2^nd hp pump now generates a strong vacuum removing residues from aircraft waste lines into external waste tank simultaneously. Virtually two work steps in one, which can be handled by one single maintenence person only.

Standard equipment:
VacLav 2 adaptor/connection tool for drain cleaning hose and discharging hose (710.800.754),
VacLav 2 retro recoil nozzle (710.800.765), VacLav 2 double blind socket (710.800.758),
56 m / 184 ft drain cleaning hose ND 6 on working hose reel (710.000.285),
30 m / 98 ft suction/discharging hose (710.701.014),
7 m / 23 ft waste water hose (710.701.017),
8 m / 26 ft water feeding hose 3/4" with GEKA coupling (710.701.026),
VacLav 2 pulling rope 15 m / 49 ft (710.000.286),
VacLav 2 boroscope 20 m / 66 ft (710.800.757),
VacLav 2 remote control box with 30 m / 98 ft cable (710.800.755)

Several adaptors and flanges for different aircraft models.
Other voltage and frequency on request.

OERTZEN VacLav 2 is approved by major aircraft manufacturers.
