Additel 100
• Pneumatic range -15 to 1000 psi (-1.0 to 70 bar)
• Hydraulic range -15 to 10,000 psi (-1.0 to 700 bar)
• Easy to maintain
• Configured with common pressure connections

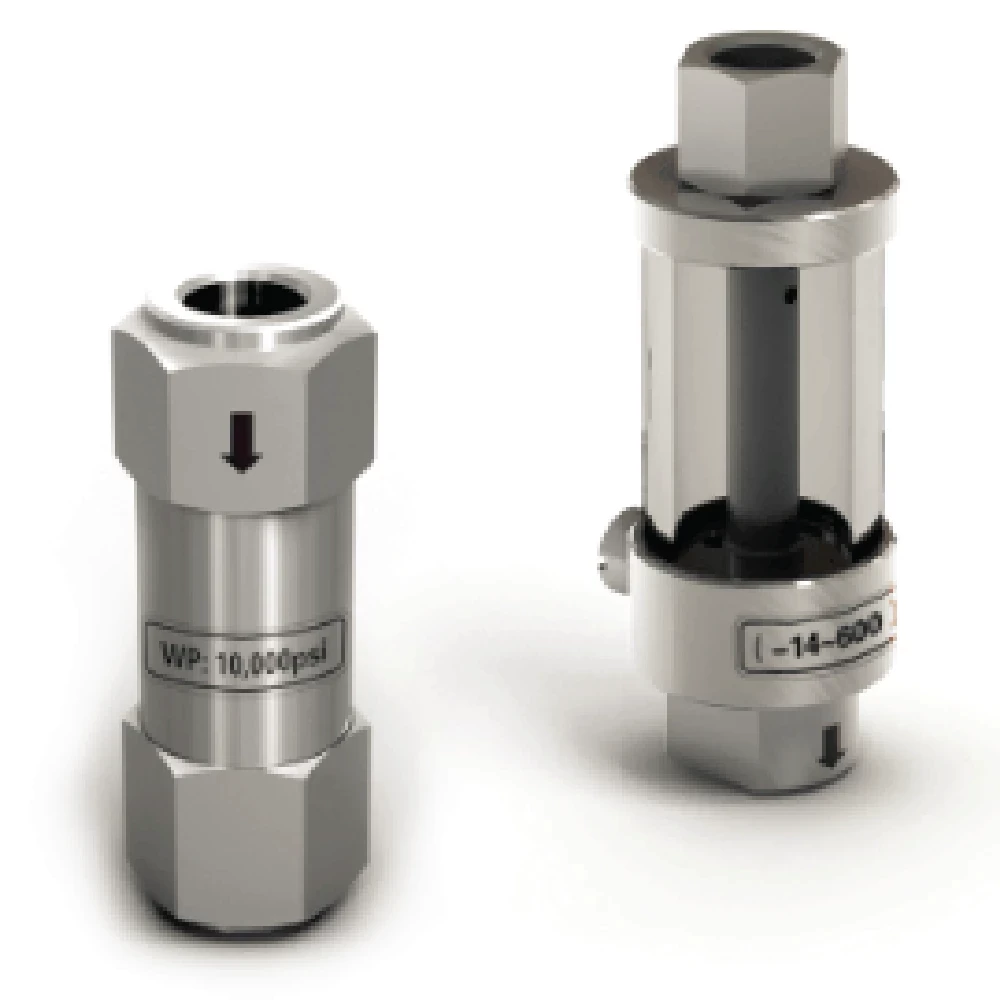

The Additel 100-FLT-1K is a pneumatic filter and liquid trap covering from -15 to 1,000 psi (-1.0 to 70 bar). This filter is ideal for your pneumatic measurement or calibration applications and contains an easy to use drain valve for removing dirt, moisture or contaminates. For hydraulic applications, the Additel 100-FLT-10K, hydraulic filter can be used up to 10K psi (700 bar). With a filter resolution of 0.07 mm contaminants or debris are captured in the filter which is easy to clean and maintain. Each filter is configured with a variety of pressure connections designed to meet the most common applications.
Additel 100 Pneumatic Filter

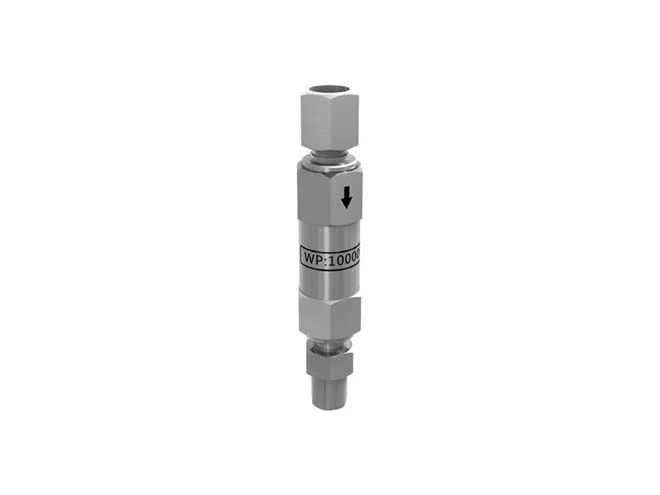

Additel 100 Hydraulic Filter
|
ADT100-FLT-1K |
|
|
1000 psi (70 bar) Pneumatic Filter Specifications |
|
|
Pressure Range |
-15 to 1000 psi (-1.0 to 70 bar) |
|
Filtering Resolution |
0.04 mm |
|
Operation Temperature |
-10°C to 50°C |
|
Safety Pressure |
<1200 psi (83bar) |
|
Size |
1.18 dia x 5 in (30 dia x 127 mm) (size will vary based on adapters) |
|
Outlet / Inlet Port |

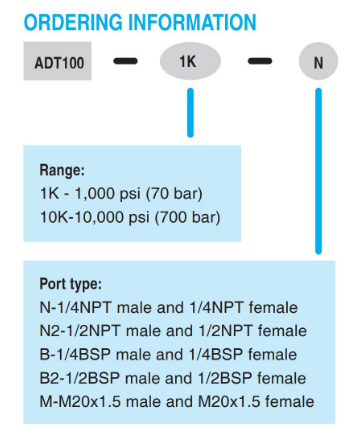

See ordering information |
|
Storage Temperature |
-20°C to 70°C |
|
Material |
304 SS |
|
ADT100-FLT-10K |
|
|
10000 psi (700 bar) Hydraulic Filter Specifications |
|
|
Pressure Range |
-15 to 10000 psi (-1.0 to 700 bar) |
|
Filtering Resolution |
0.07 mm |
|
Operation Temperature |
-10°C to 50°C |
|
Safety Pressure |
<12,000 psi (827bar) |
|
Size |
0.87 x 0.98 x 4 in (22 x 25 x 100 mm) (size will vary based on adapters) |
|
Outlet / Inlet Port |
Comes with removable male and removable female adapter |
|
Storage Temperature |
-20°C to 70°C |
|
Material |
304 SS |
.png)
.png)
|
