Features

• Compact and sturdy structure fully made of welded steel.

• Shafts made of specially treated and chromium-plated steel.

• Spring made of steel inside the cylinder for a rapid return of the shaft.

• Two-speed manual pump: Fast when approaching and precise when working (153-154 – 155 – 156).

• Knob on the pump to control both speeds (153-154 – 155 – 156).

• One-speed manual pump (152-154/E).

• Maximum versatility thanks to the height-adjustable table.

• Supplied with a pin-extracting plate and a pair of V-blocks(153-154-155-156)

• Supplied with a large diameter manometer.

• Hydro-pneumatic foot pump that lets you work with both the hands free.

• Winch to easily and quickly lift the working-table (P30/SAIP/W-157/IP – 158/IP-161/W-163/W-164/W).

• Pin-extracting plate with a couple of V-blocks (154/IP – 155/IP – 156/IP).

• Big-diameter manometer (P30/SAIP – 157/IP – 158/IP).

• Foot pump that lets you work with both the hands free.

• Motorized 2-speeds control unit with automatic insertion (except art. 156/W – P30/W – 161/W).

• Start-up by means of a 3-position lever distributor. This solution allows you to have one hand free to work.

• With a control valve to set the power according to the work you have to do.

• Rod to raise the workbench (164/WS – 204/W – 204/WE). • Supplied with a manometer.

• Operated by lever distributor and button on the control box to be activated simultaneously

• Protection rear and side panels made of zinc-plated steel

• Calibrating valve to control the power according to the work you have to do

• Shaft to raise workbench (164/RS – 204/R – 204/RE).

• Supplied with standard manometer.

• Two hydraulic cylinders operated by a lever to raise the workbench.

• Supplied with a milled working-table.

• Blade-made of high resistance steel

• Supplied with a special forming-die housing 5 different forms. 5 accessories in 1.

• Electric limit switch device.

• Operated by a two-hand pushbutton board to control automatic operations conditionally to the limit switch device (164/RPA – 204/RPA).

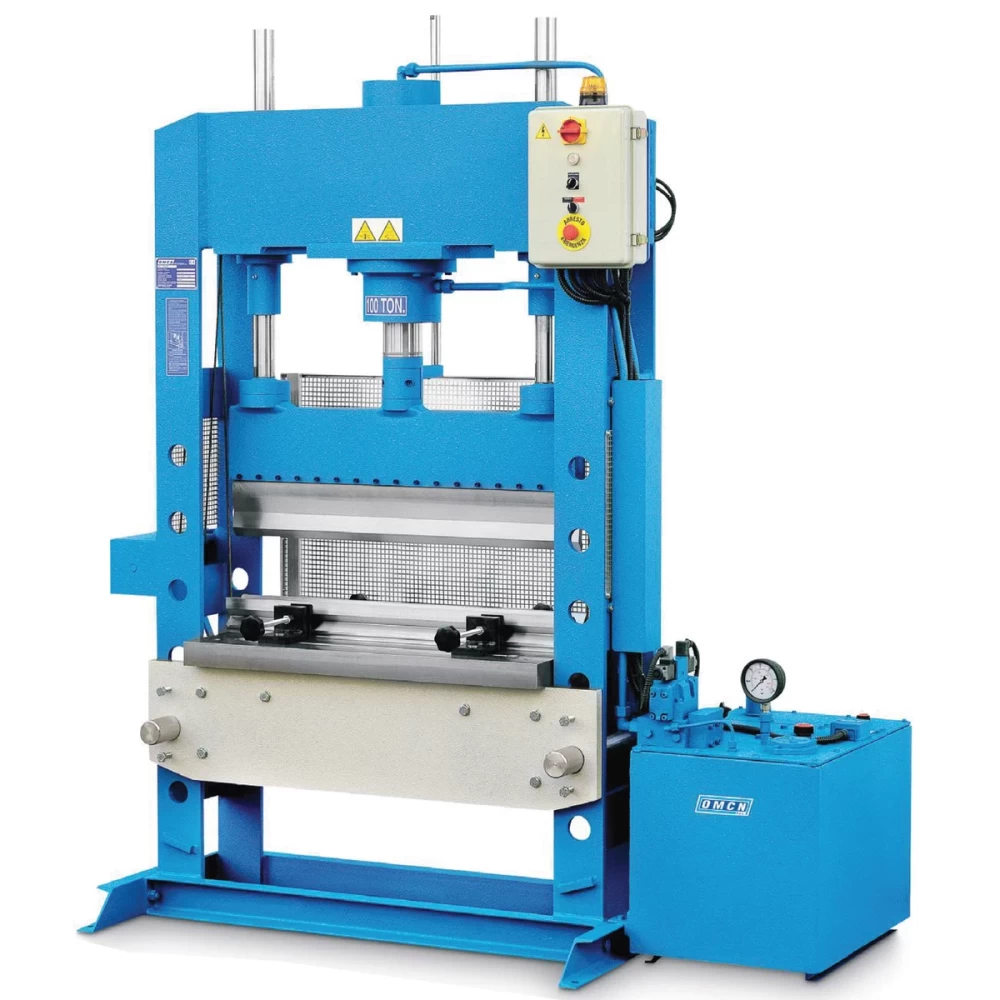

• For press-bending plates up to 10 mm. thick and 1 mt. wide

• Stanchion and cylinder manually movable.

• Perfect for different uses like mounting, straightening, folding and extracting.

• Stanchion move on full steel rollers with bearings.

• Set of two extensions to increase the shaft’s stroke (optional)

• Set of modular V-blocks according to the kind of work you have to do (optional).

Model/Art.

Capacity

Ton

152

6

153

10

154, 154/E, 154/IP, 154/P, 154/ML, 154/MR

10

155, 155/IP, 155/P

15

156, 156/IP, 156/ML, 156/W, 156/MR

20

P30/SA/SAP/SAIP/ML/W/MR

30

157, 157/IP,

40

161, 161/W, 161/R

40

158, 158/IP,

50

162, 162/W, 162/R, 162/WM

50

159, 159/IP,

70

163, 163/W, 163/R

160, 160/IP,

100

164, 164/W, 164/WS, 164/R, 164/RS, 164/RP, 164/RPA, 164/WM,

100

204/W, 204/WE, 204/R, 204/RE, 204/RP, 204/RPA, 204/WM

150

205/R, 205/W

200

280/R, 280/W

300
