OERTZEN - HOTBOX 500
|
Flow rate max |
1380 l/h / 364 gal/h |
|
Unloading pressure |
520 bar / 7540 psi |
|
Working pressure max |
500 bar / 7250 psi |
|
Water temperature max |
130°C/266°F |
|
Standard voltage |
230 V/1P/50 Hz |
|
Dimensions (frame: L×W×H) |
630×640×1010 mm |
|
Weight |
109 kg / 240 lb |

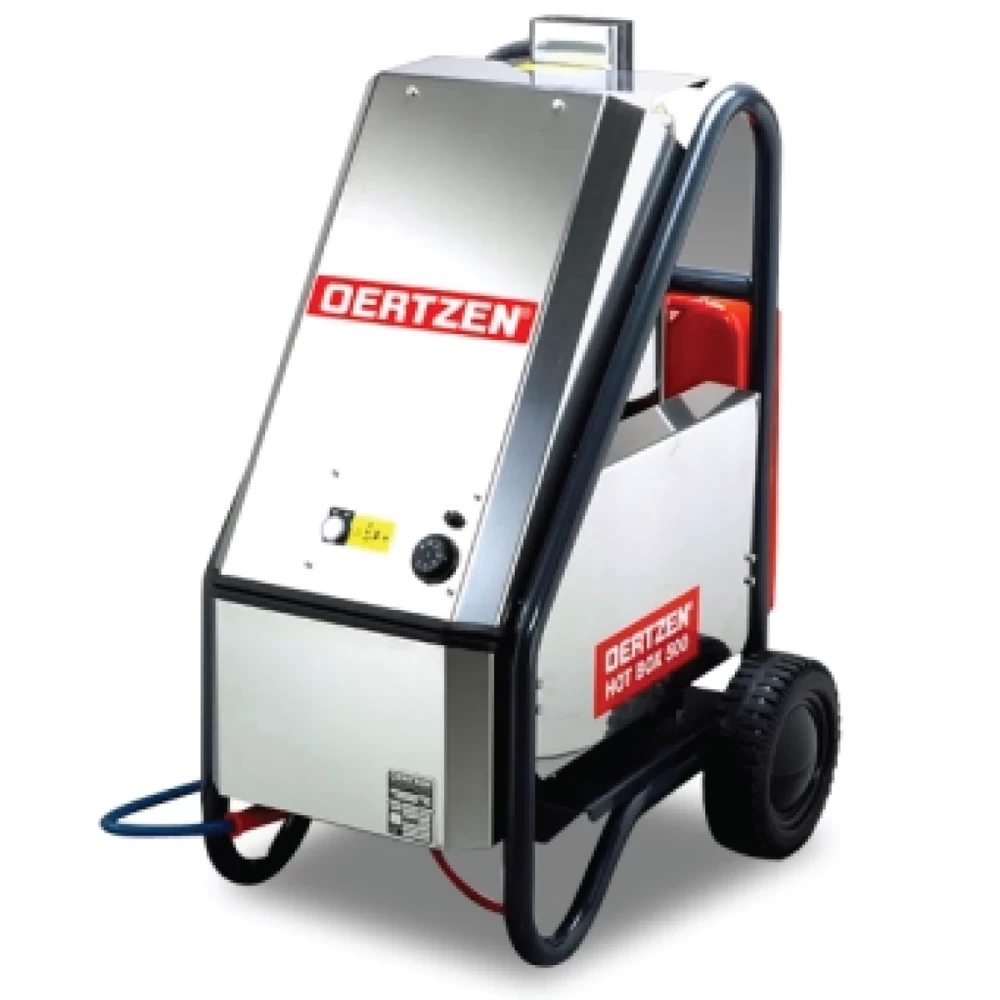

OERTZEN HOT BOX 500
hot water module, fuel-oil heated, 130°C / 266°F
boiler with heating coil, vertical burner system
230 V/50 Hz
turns cold water hp cleaner into hot water hp cleaner
just by docking between hp cleaner and spray equipment
thermostat
fuel-oil filter
for hp cleaners up to 500 bar / 7250 psi working pressure
fuel-oil jerrycan 20 l / 5.3 gal (NATO canister)
frame powder coated, hood panels stainless steel
Application range: commercial cleaning, container cleaning, duct relining, sewer rehabilitation, facade cleaning, floor cleaning, grafitty removal, high pressure cleaning, hot water cleaning, industrial cleaning, paint removal, wall cleaning
Standard equipment: 2 m / 6.6 ft PANZERJET high pressure connection hose, 4 m / 13 ft electric cable with safety plug
|
Technical characteristics |
|
|
Flow rate max. |
1380 l/h / 364 gal/h |
|
Unloading pressure |
520 bar / 7540 psi |
|
Operating pressure max. |
500 bar / 7250 psi |
|
Water temperature max. |
130°C / 266°F |
|
Standard voltage |
230 V/1~50 Hz |
|
Dimensions (frame: LxWxH) |
630 x 640 x 1010 mm / 24.6 x 25 x 39.4 in |
|
Weight |
109 kg / 240 lb |
|
Please notice |
technical data are subject to alterations |
