1mk temperature resolution, 0.1mΩ/0.1uV electrical measurement resolution

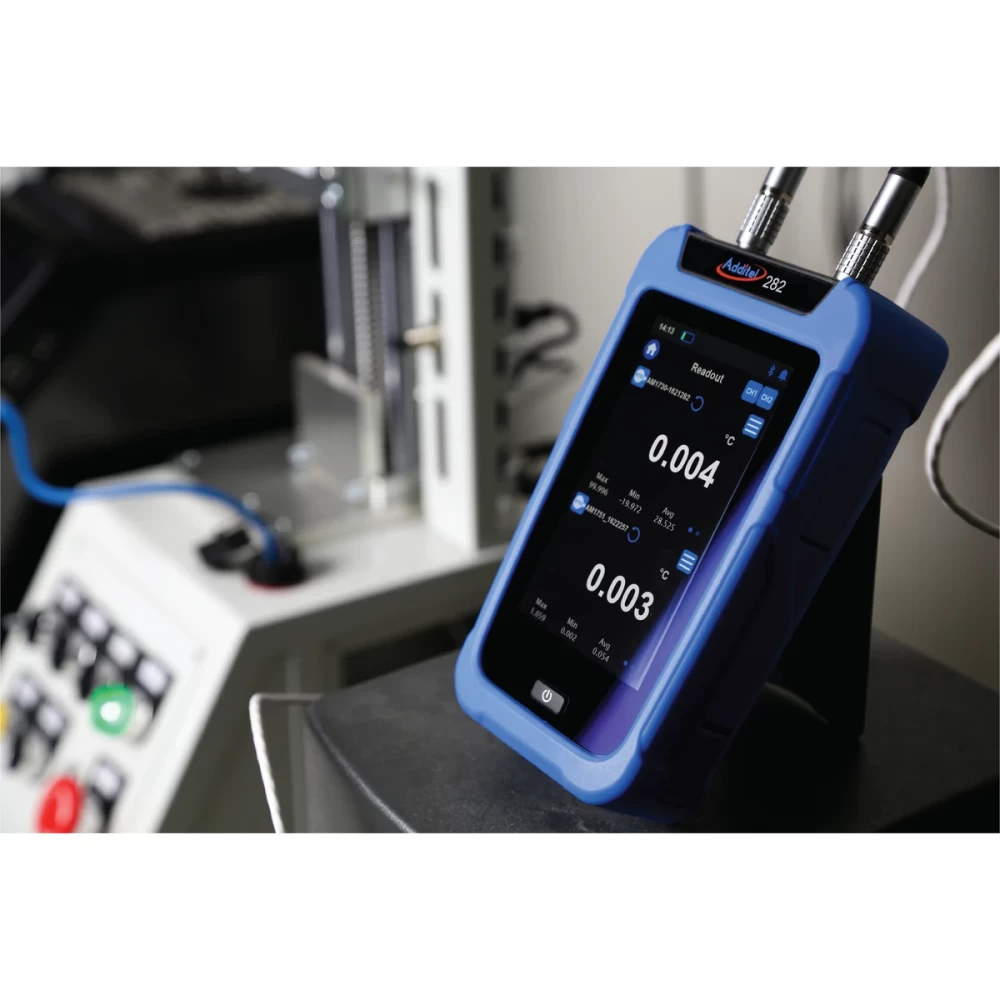

Reliable temperature metrology requires a stable repeatable measurement device. The ADT282 supports stability and uniformity testing of liquid temperature baths, thermocouple calibration furnaces, and dry well calibrators. The highly accurate dual channels of the ADT282 support deviation and uniformity studies. A very capable standard is required for the measurement resolution of the thermometer readout in these situations. The ADT282's superior measurement performance and dual-channel configuration easily meet these measurement needs

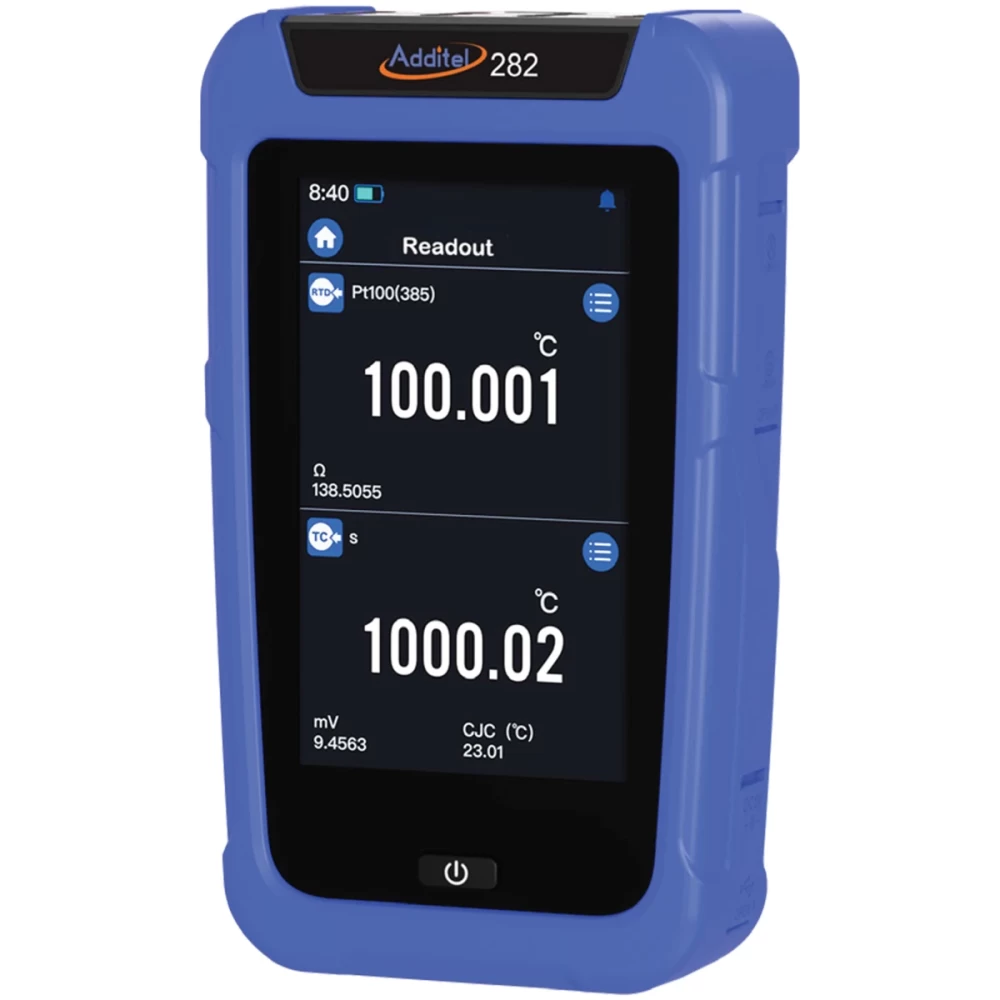

Dual Channels

The model ADT282 includes dual inputs which provide support for a multitude of resistive type sensors (RTD’s) as well as thermocouples (TC’s). Both channels can be displayed simultaneously which allows for comparison measurements and a host of other statistical analysis capabilities. And the Additel 282 allows for easy differential measurement selection for T1-T2.

Reference Measurement Technology

Additel’s 282 Reference Thermometer Readout utilizes a ratio measurement technology which provides an unmatched performance in stability and drift. In order to ensure a very small temperature drift coefficient and reliable long-term stability, the ADT282 uses current reversal techniques to cancel EMF effects and a ratio technology to cancel the A/D converter offset. This highly advanced technology has not been available in a handheld device until now!

Smart Style Probe Connections

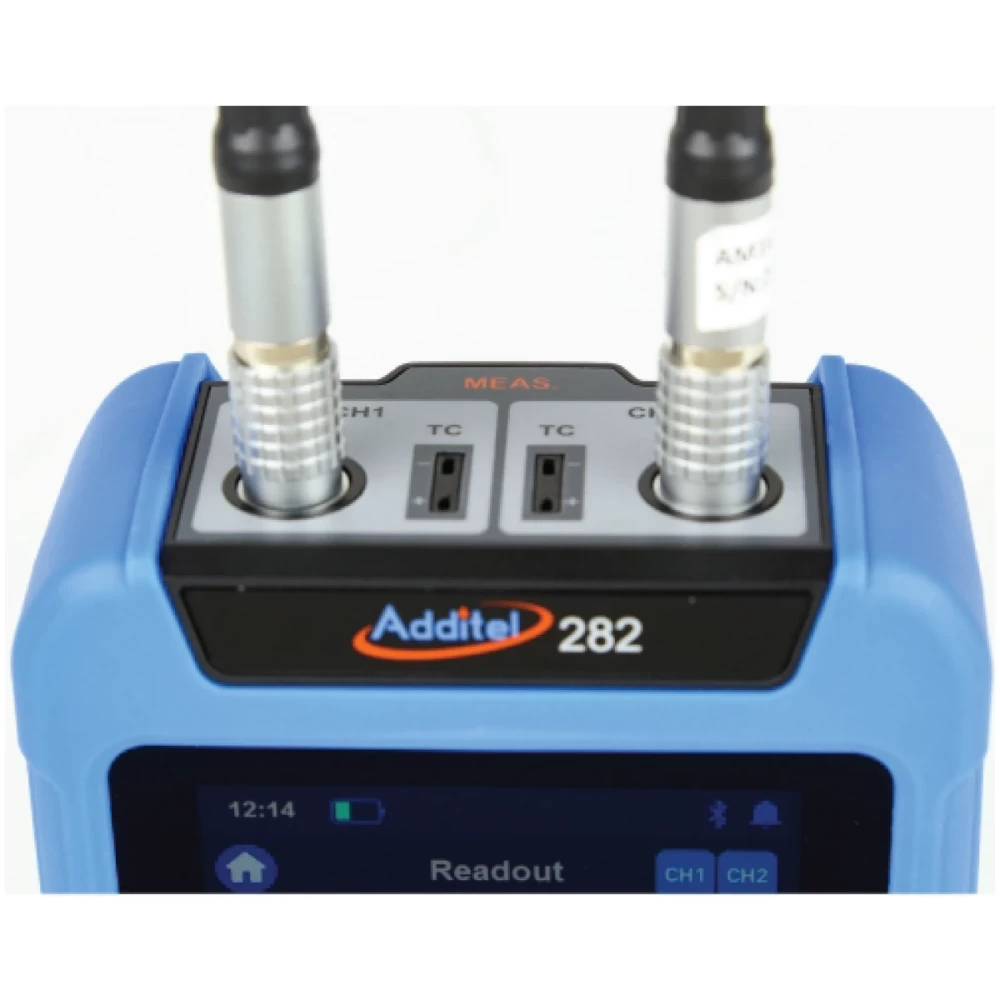

In order to facilitate quick and reliable probe connections, the ADT282 has been configured with smart connection ports for probes. Both channels atop the reference readout utilize 6 pin Lemo style smart connectors for RTD probes and mini-TC ports for thermocouple probes. The thermocouple connection points utilize an imbedded temperature sensor which allows for both internal and external cold junction compensation.With the smart probe connectors, the ADT282 utilizes a user-selectable probe lock feature to pair the probe with the channel it was calibrated with in a system calibration.

One Touch Control Center

In order to improve the user's experience and speed of use, we have designed a single touch menu option that navigates users to a control center panel. The functions from the control panel include: Date, Battery status, Screen lock, Bluetooth on/off, Speaker on/off, Snapshot, Smart diagnosis center button.

Bluetooth

The ADT282 comes with standard Bluetooth communications capabilities and is supported by Additel’s Mobile Link App. This very useful feature will change the way you work as it provides a remote view of the ADT282 display at a distance, up to 20 meters on your personal mobile device.

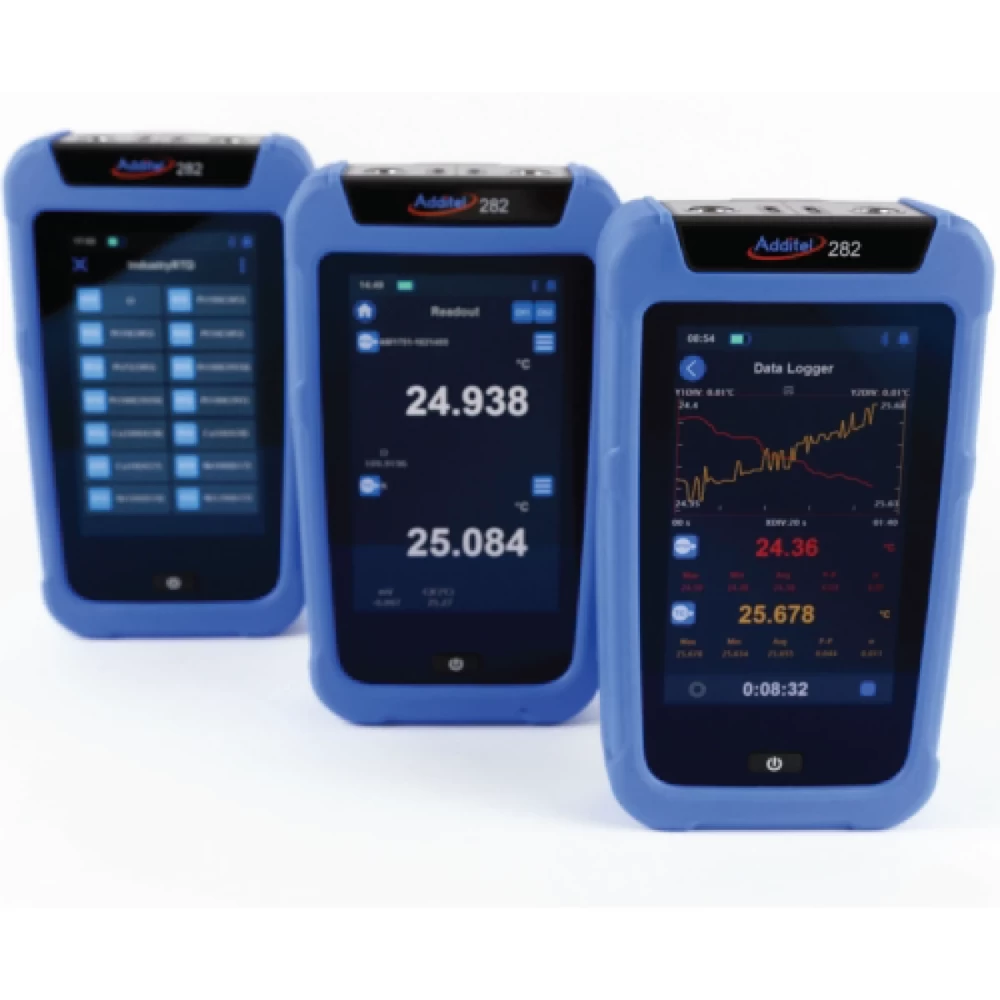

Datalogging

Temperature sensors and instruments used in the field often require regular calibration. In many cases, the disassembly of equipment can impact productivity. Fixed sensors can be tested in process utilizing the ADT282 datalogging capabilities. In order to accurately monitor temperature changes, this process may take several minutes or even hours to complete. ADT282 has builtin powerful data logging function and supports multi-parameters data recording, trend curve display, partial curve observation, statistical result viewing, data storage capacity up to 8G to help with these applications.

Sensor Library

The ADT282 has an extensive built-in temperature sensor library, including ITS-90, CVD, Standard TC,13 types of industrial RTDs and 15 types of industrial thermocouples, and also supports sensor customization. The user can also edit the probe coefficients according to the ITS-90, CVD formulas and the R0 parameter of the industrial RTDs. The extensive probe library capabilities also support coefficient input methods for standard thermocouple types.

Display

5.0 inch 480 x 800 TFT LCD capacitive screen

Size

16.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)

Weight

1.5 lbs. (0.65 Kg)

Power Supply

6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independent. Battery life typically 16 hours

Environment

Specification guaranteed temperature range: (10~30) °C

Working Temperature: (-10~50) °C

Storage temperature: (-20~70) °C

Humidity: 0% ~ 95% RH, non-condensing

Warm-Up Time

10 minutes

Ports Protection Voltage

50V max

CE Certificate

TUV IEC61326,IEC61010

Rohs Compliance

Rohs II Directive 2011/65/EU,EN50581:2012

IP Protection Level

IP67, 1 meter drop test

Communication

Isolate USB-TYPEC (slave), Bluetooth BLE

Input Channels

CH1, CH2 analog channel, 6 pins smart lemo ports for RTD probe;MINI-TC ports for TC probe

Measurement Display

Single channel, dual channel, differential (e.g T1-T2)

Measuring Rates

CH1, CH2 analog channels alternately and cyclically measure

RTD measuring rate: 1.6S/single channel, 1.6S/dual channel

TC measuring rate: 0.8S/single channel, 0.8S/dual channel

Measurement Units

°C, °F, K

Statistics

Max, Min, Avg

PRT Measurement

RTD Types

ITS-90, CVD, Ohms, Pt100 (385), Pt10 (385), Pt25 (385), Pt50 (385), Pt100 (3916), Pt100 (3926), Pt100 (391), Cu100 (428), Cu50 (428), Cu10 (427), Ni100 (617), Ni100 (618), Ni120 (672), and custom RTD

Resistance Accuracy

0~400Ω: ±0.5mΩ@(0~20Ω),±25ppm@(20~400Ω)

Measurement range

-200°C ~ 850°C

Resolution

±0.1mΩ or 0.001°C

Connection Type

4-wire smart connection

Excitation Current

1 mA - alternating constant current

Temperature Coefficient

±2ppm FS/°C (-10°C~10°C and 30°C~50°C)

TC Measurement

TC Types

mV, S, R, B, K, N, E, J, T, C, D, G, L, U, LR, A, 10uV/°C, 1mV/°C, Standard TC

Electrical Measurement

-10~75mV: 50ppm RDG+2uV

TC measurement range

-270°C ~ 1800°C

Resolution

±0.1uV or 0.001°C

Connection Type

Mini-TC

CJC compensation methods

Internal, external or manual entry

Temperature Coefficient

±5ppm FS/°C (-10°C~10°C and 30°C~50°C)

Internal CJC Specification

±0.15°C  (-10°C~50°C)

-200

18

0.005

0.013

0.021

0.021

0.053

0.053

n/a

0.072

n/a

-40

84

0.005

0.013

0.018

0.018

0.042

0.042

0.018

0.051

0.051

0

100

0.006

0.009

0.014

0.014

0.036

0.036

0.014

0.051

0.051

100

140

0.009

[1]

[1]

[1]

[1]

[1]

0.019

0.051

0.051

160

163

0.011

[1]

[1]

[1]

[1]

[1]

0.023

0.052

0.052

232

190

0.013

0.019

0.024

0.024

0.059

0.059

n/a

n/a

n/a

420

257

0.018

0.027

0.033

0.033

0.077

0.077

n/a

n/a

n/a

660

338

0.026

0.04

0.046

n/a

n/a

0.109

n/a

n/a

n/a

Note: [1] – These are non-standard calibration points, some probes are not calibrated at 100°C and/or 160°C.

* Includes readout accuracy, probe calibration, and probe drift. (K=2)

S

-50 to 1768

-50~0

0.51

0.53

0~100

0.37

0.4

100~1768

0.28

0.32

R

-50 to 1768

-50~0

0.54

0.56

0~200

0.38

0.41

200~1768

0.25

0.29

B

0 to 1820

200~300

1.01

1.02

300~500

0.66

0.68

500~800

0.41

0.44

800~1820

0.28

0.32

K

-270 to 1372

-250 to -200

0.48

0.5

-200 to -100

0.15

0.21

-100 to 600

0.08

0.17

600 to 1372

0.14

0.21

N

-270 to 1300

-250 to -200

0.76

0.77

-200 to -100

0.22

0.27

-100 to 1300

0.12

0.19

E

-270 to 1000

-250~-200

0.26

0.3

-200~-100

0.1

0.18

-100~700

0.06

0.16

700~1000

0.08

0.17

J

-210~1200

-210~-100

0.13

0.2

-100~700

0.06

0.16

700~1200

0.1

0.18

T

-270 to 400

-250~-100

0.36

0.39

-100~0

0.08

0.17

0~400

0.05

0.16

C

0 to 2315

0 to 1000

0.16

0.22

1000 to 1800

0.26

0.3

1800 to 2315

0.42

0.45

D

0~2315

0~100

0.21

0.26

100~1200

0.16

0.22

1200~2000

0.27

0.31

2000~2315

0.42

0.45

G

0 to 2315

50~100

0.6

0.62

100~200

0.38

0.41

200~400

0.24

0.28

400~1500

0.16

0.22

1500~2315

0.32

0.35

L

-200 to 900

-200 to -100

0.07

0.17

-100 to 400

0.06

0.16

400 to 900

0.07

0.17

U

-200 to 600

-200 to 0

0.14

0.21

0 to 600

0.05

0.16

LR

-200~800

-200~0

0.09

0.17

0~800

0.06

0.16

A

0~2500

0~1200

0.2

0.25

1200~2000

0.33

0.36

2000~2500

0.48

0.5

Temperature Range [3]

-60°C to 160°C

-200°C to 420°C

-200°C to 670°C

-200°C to 670°C

Resistance at 0°C

Nominal 100Ω

Temperature Coefficient

0.003925 Ω / Ω / °C

Calibrated Accuracy (k=2)[2][3]

±0.025°C at -40°C

±0.025°C at -40°C

±0.025°C at -40°C

±0.010°C at -196°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.015°C at 0.01°C

±0.006°C at 0.01°C

±0.025°C at 160°C

±0.035°C at 420°C

±0.035°C at 420°C

±0.015°C at 420°C

±0.05°C at 661°C

±0.025°C at 661°C

Drift

±0.01°C at TPW after 100 hours at 160°C

±0.01°C at TPW after 100 hours at 420°C

±0.01°C at TPW after 100 hours at 661°C

±0.004°C at TPW after 100 hours at 661°C

Short Term Stability

±0.007°C

±0.002°C

Thermal Shock

±0.005°C after (10) thermal cycles from minimum to maximum temperatures

±0.002°C after (10) thermal cycles from minimum to maximum temperatures

Hysteresis

<=0.005°C

<=0.001°C

Self-heating

50 mW/°C

0.0015°C at 0.5mA

Response Time

9 seconds for 63% response to step change in water moving at 3 feet per second

Measurement Current

0.5 mA or 1 mA

Sensor Length

32 mm

42 mm

Sensor Location

5 mm from tip

Insulation Resistance

>1000 MΩ at room temperature

Sheath Material

Stainless Steel

Inconeltm

Dimension

AM1710-12-ADT

AM1730-12-ADT

AM1751-12-ADT

AM1760-12-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

0.25 in dia X 12 in (6.35 mm X 305 mm)

AM1710-BEND-ADT

AM1730-BEND-ADT

AM1751-BEND-ADT

AM1760-BEND-ADT

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end

External Leads

Teflontm –insulated copper wire, 4 leads, 0.8 meters

Handle Dimension

15 mm (OD) x 65 mm (L)

Handle Temperature Range[1]

-50°C to 160°C

-50°C to 180°C

Calibration

NIST traceable calibration with data included. Accredited calibration available per request.

[1] Handle temperatures outside this range will cause damage to the probe.

[2] Includes calibration and 100 hour drift.

[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).

*PRT Information from www.accumac.com

9813-X

Power Adapter, external power adapter for Additel 282 Thermometer Readout

1 pc

9704

Chargeable Li-ion battery

1 pc

Manual

1 pc

ISO 17025 accredited calibration certificate

1 pc

9052

USB Cable (TYPE - A to C)

9070

Smart connector for reference PRT used with ADT875, ADT878, and ADT282

9071

Connector Adapter from smart connector to 4-wire with gold-plated spades for AM17XX PRTs

9072

Smart connector with clamps

9080

Cable kits (including TC plug, compensation cable, S,R,B,K,J,T,E,N)

9918-SC

Soft carrying case, with space for instrument, test leads, and accessories

9905

Carrying case for handheld calibrators and readouts with space for two PRTs
